Toyota COROLLA 后盘式制动器卡钳和防尘罩 — Figure 4707

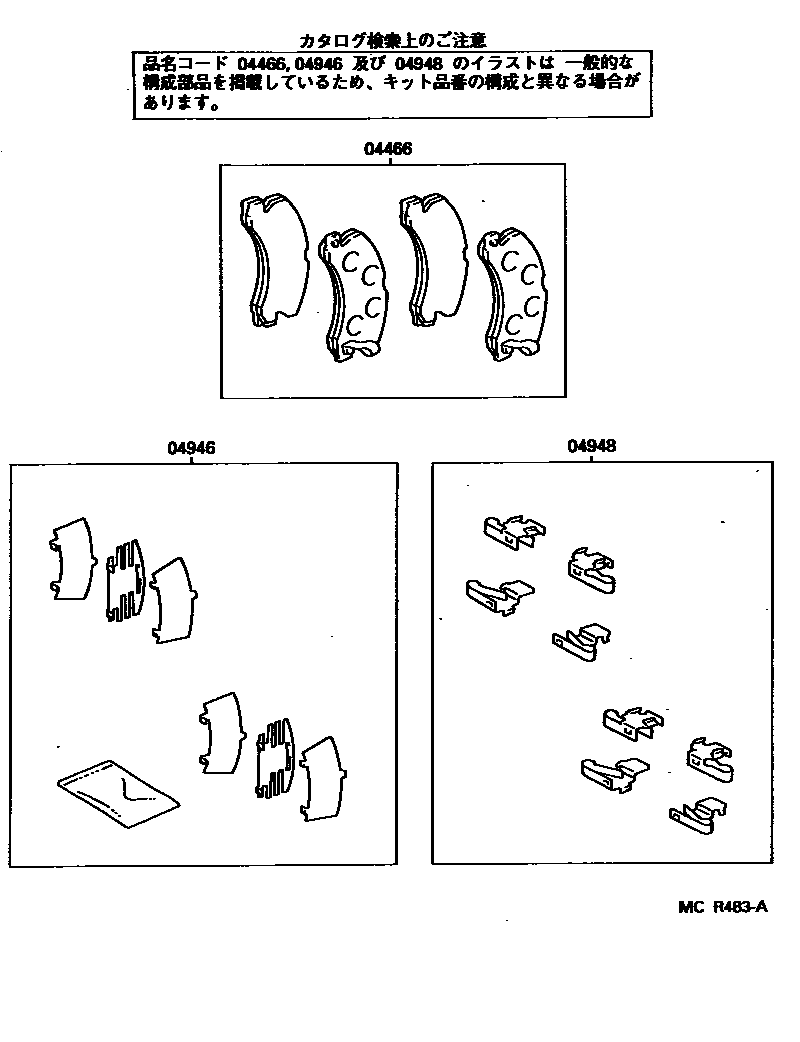

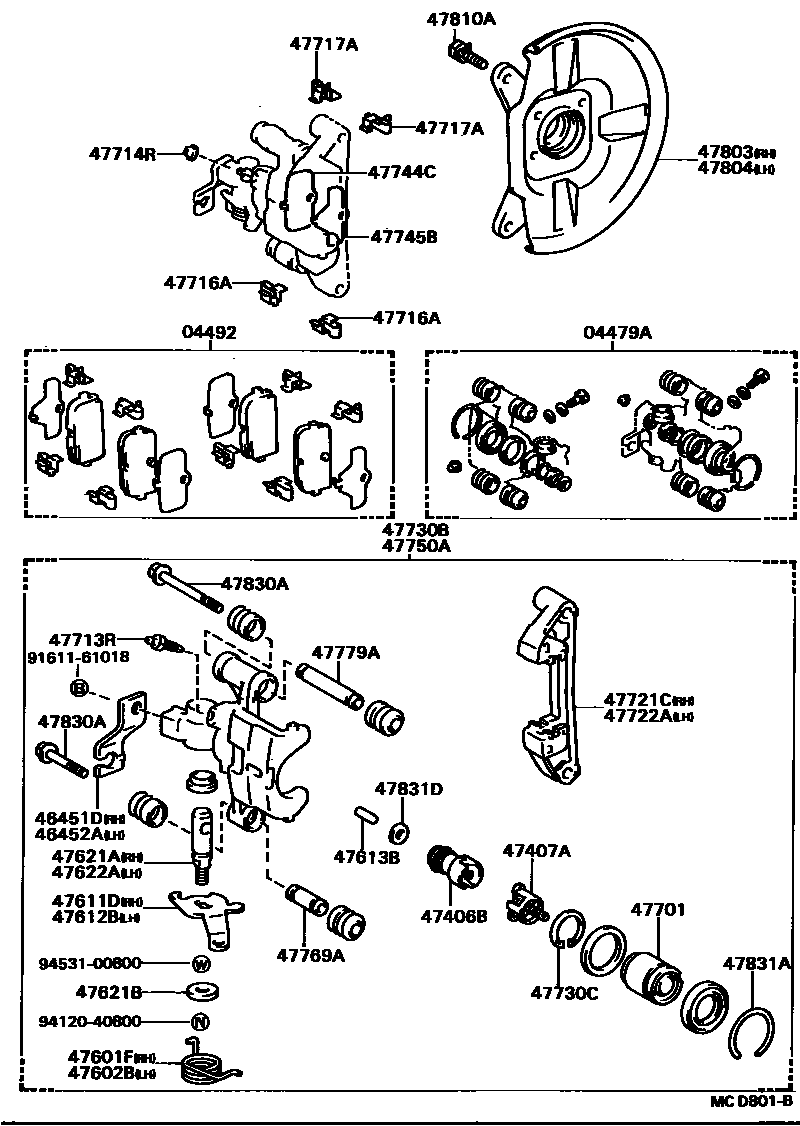

Toyota COROLLA EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 2 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-16010 |
| 04479A | Rear disc brake cylinder assembly | 04479-16040 |
| 04492 | Rear disc brake pad assembly | 04492-16010 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-16010 |
| 04948 | Rear disc brake mounting assembly | 04948-16010 |
| 46451D | Right parking brake cable bracket | 46451-16020 |
| 46452A | Left parking brake cable bracket | 46452-16010 |
| 47406B | Rear disc brake clutch sub-assembly | 47406-16010 |
| 47407A | Rear disc brake pad adjuster assembly | 47407-16010 |
| 47601F | Torsion spring (for right parking brake angle lever) | 90508-29018 |
| 47602B | Torsion spring (for left parking brake angle lever) | 90508-29019 |
| 47611D | Right parking brake disc lever | 47611-16020 |
| 47612B | Left parking brake disc lever | 47612-16020 |
| 47613B | Parking brake shoe push rod (for rear wheel brake) | 47613-16010 |
| 47621A | Right parking lever shaft | 47621-16010 |
| 47621B | Spacer (for parking lever shaft) | 90560-08056 |
| 47622A | Left parking lever shaft | 47622-16010 |
| 47701 | Rear disc brake piston sub-assembly | 47701-16010 |
| 47713R | Bleed plug (for rear disc brake) | 47547-20010 |
| 47714R | Bleed plug cap (for rear disc brake) | 31478-30010 |
| 47716A | Pad support plate No. 1 (for rear disc brake) | 47716-16010 |
| 47717A | Pad support plate No. 2 (for rear disc brake) | 47717-16010 |
| 47721C | Right rear disc brake cylinder retainer | 47721-16030 |
| 47722A | Left rear disc brake cylinder retainer | 47721-16030 |
| 47730B | Right rear disc brake cylinder assembly | 47730-16070 |
| 47730C | Hole snap ring (for rear disc brake cylinder) | 90521-32003 |
| 47744C | No. 1 silencer gasket (for rear disc brake) | 47744-16020 |
| 47745B | No. 2 silencer gasket (for rear disc brake) | 47745-16020 |
| 47750A | Left rear disc brake cylinder assembly | 47750-16070 |
| 47769A | No. 1 brake cylinder sliding sleeve (for rear disc brake) | 47769-16020 |
| 47779A | No. 2 brake cylinder sliding sleeve (for rear disc brake) | 47779-32010 |
| 47803 | Right rear disc brake dust cover sub-assembly | 47803-16010 |
| 47804 | Left rear disc brake dust cover sub-assembly | 47804-16010 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90119-10446 |
| 47830A | Bolt (for rear disc brake) | 90119-09011 · 90119-09012 |
| 47831A | retaining ring (for rear disc brake piston) | 90522-43002 |
| 47831D | Ring (for rear disc brake) | 90562-04014 |
