Toyota COROLLA Steering Column & Shaft — Figure 4501

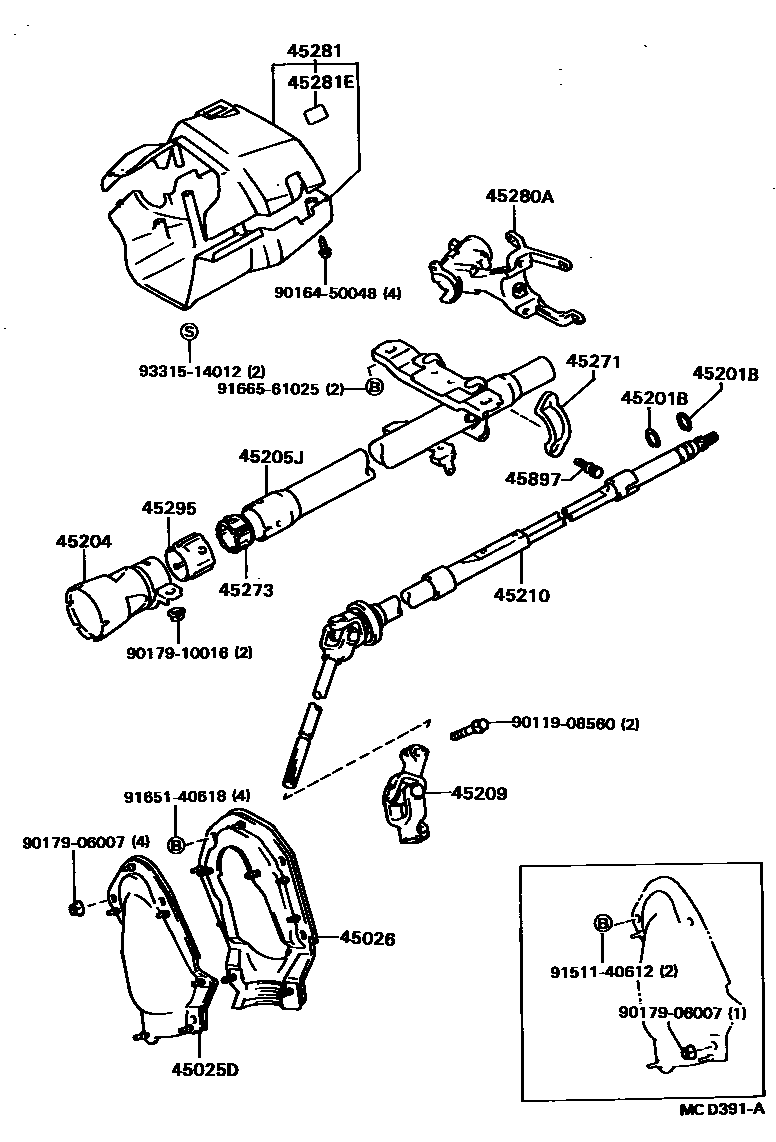

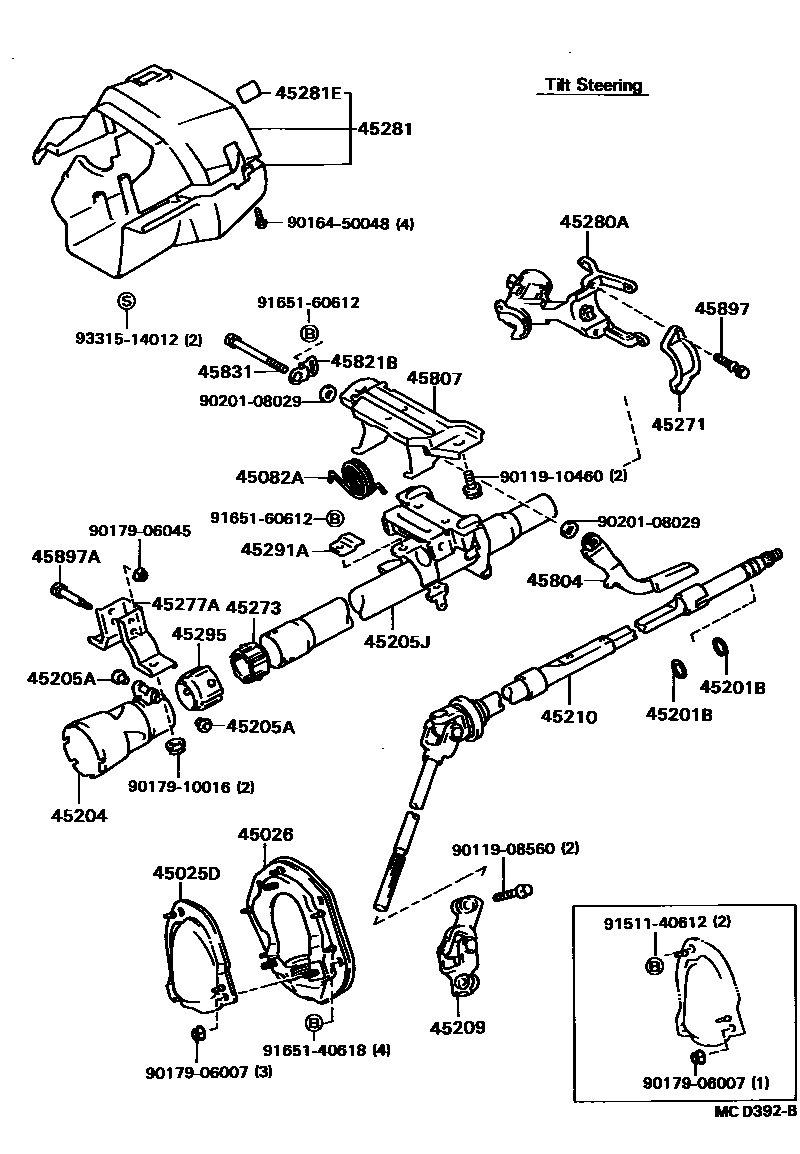

Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-16070 · 45025-16090 · 45025-16091 |
| 45026 | No. 2 steering column hole cover sub-assembly | 45026-16010 · 45026-16030 · 45026-16032 |
| 45082A | Torsion spring (for tilt-adjustable steering column return) | 90508-32029 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17042 · 90520-17196 |
| 45204 | Steering column down tube assembly | 45204-16010 · 45204-16011 · 45204-16020 · 45204-16030 |
| 45205A | Bushing (for steering column tube) | 90386-08034 |
| 45205J | Steering column upper tube sub-assembly | 45205-16050 · 45205-16060 |
| 45209 | Steering slip fork sub-assembly | 45209-10020 · 45209-16020 |
| 45210 | Steering spindle assembly | 45210-16080 · 45210-16100 |
| 45271 | Clamp on steering column | 45271-16020 |
| 45273 | Steering spindle bushing | 45273-16010 |
| 45277A | Tilt-adjustable steering bracket | 45277-16020 |
| 45280A | Steering column upper bracket assembly | 45280-16040 |
| 45281E | Safety warning nameplate | 45283-12010 |
| 45291A | Steering column tube bracket | 45291-16010 |
| 45295 | Steering column tube bushing | 45295-16010 |
| 45804 | Steering tilt adjustment lever sub-assembly | 45804-16030 |
| 45807 | Steering column upper bracket sub-assembly | 45807-16030 |
| 45821B | No. 1 tilt-adjustable steering bracket reinforcement | 45821-16010 |
| 45831 | No. 1 tilt adjustment lever locking bolt | 45831-16020 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 45897-16010 |
