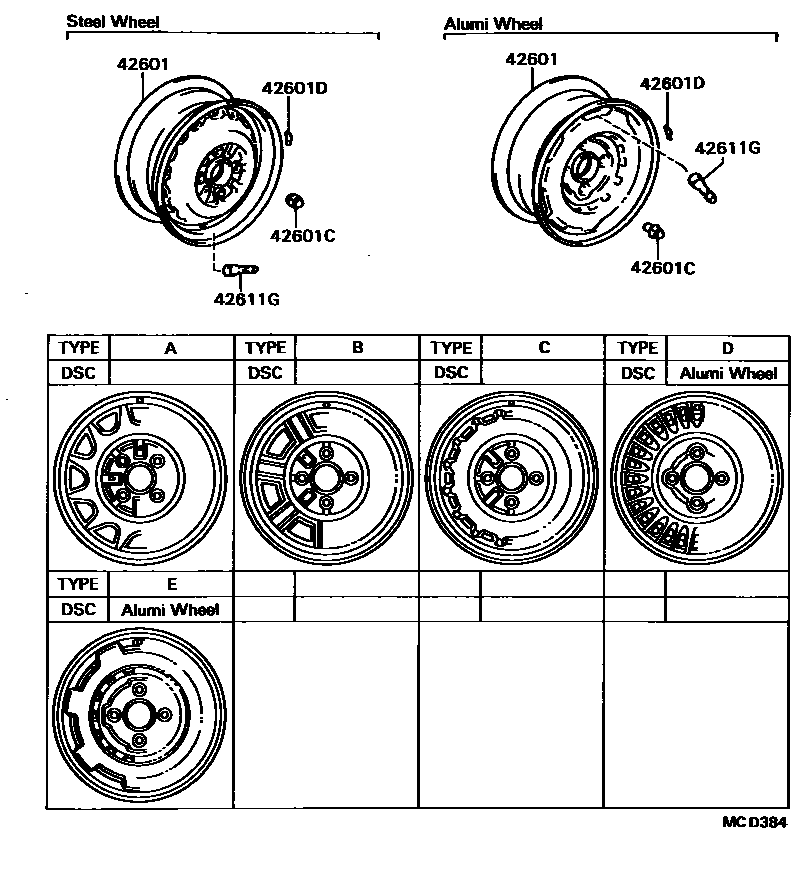

Toyota COROLLA 车轮和车轮盖 — Figure 4103
Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-16280 · 42611-16290 · 42611-16310 · 42611-16380 · 42611-16390 · 42611-17040 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01027 · 90942-01028 · 90942-01033 · 90942-01059 |
| 42601D | Balance weight (for spoked wheels) | 90942-03017 · 90942-03020 · 90942-03022 · 90942-03025 · 90942-03027 · 90942-03029 · 90942-03031 · 90942-03041 · 90942-03098 · 90942-03099 · 90942-03100 · 90942-03101 · 90942-03102 · 90942-03108 · 90942-03109 · 90942-03146 · 90942-03147 · 90942-03148 · 90942-03149 · 90942-03150 · 90942-03151 · 90942-03152 · 90942-03153 · 90942-03154 · 90942-03155 · 90942-03156 · 90942-03157 · 90942-03158 · 90942-03159 · 90942-03160 · 90942-03161 · 90942-03167 |

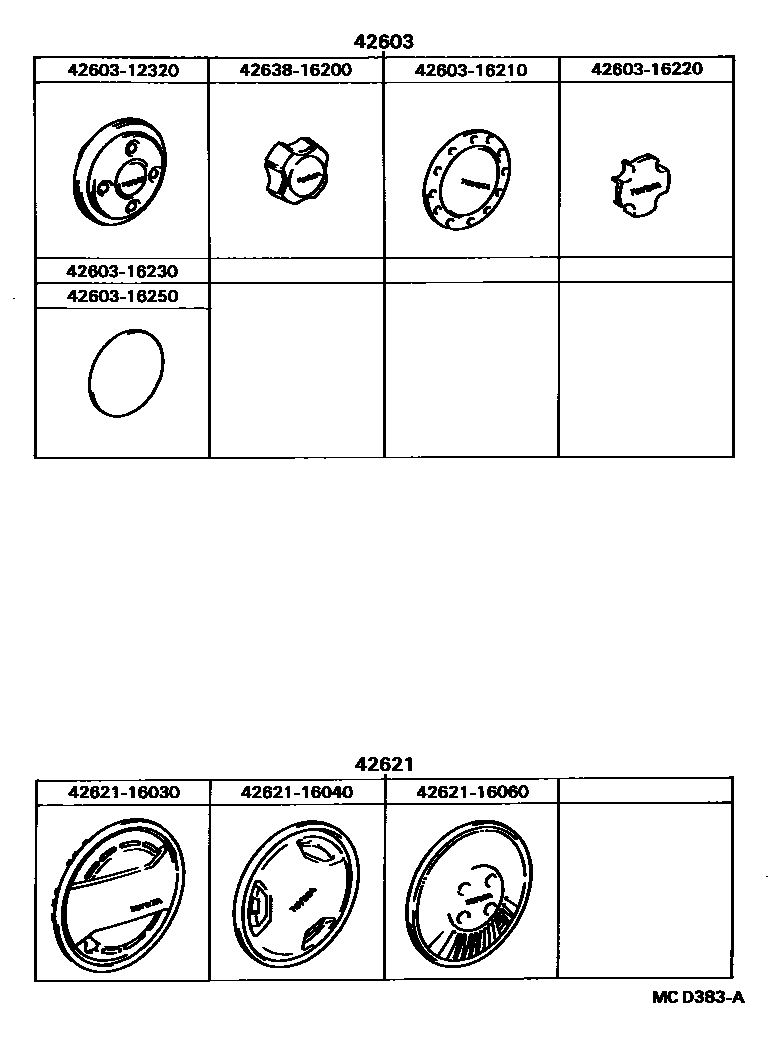

| 42603 | Wheel hub decorative parts sub-assembly | 42603-12320 · 42603-16190 · 42603-16210 · 42603-16220 · 42603-16230 · 42603-16250 · 42638-16200 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42621 | wheel cover | 42621-16030 · 42621-16040 · 42621-16060 |
