Toyota COROLLA 变速器油冷却器和配管(ATM) — Figure 3514

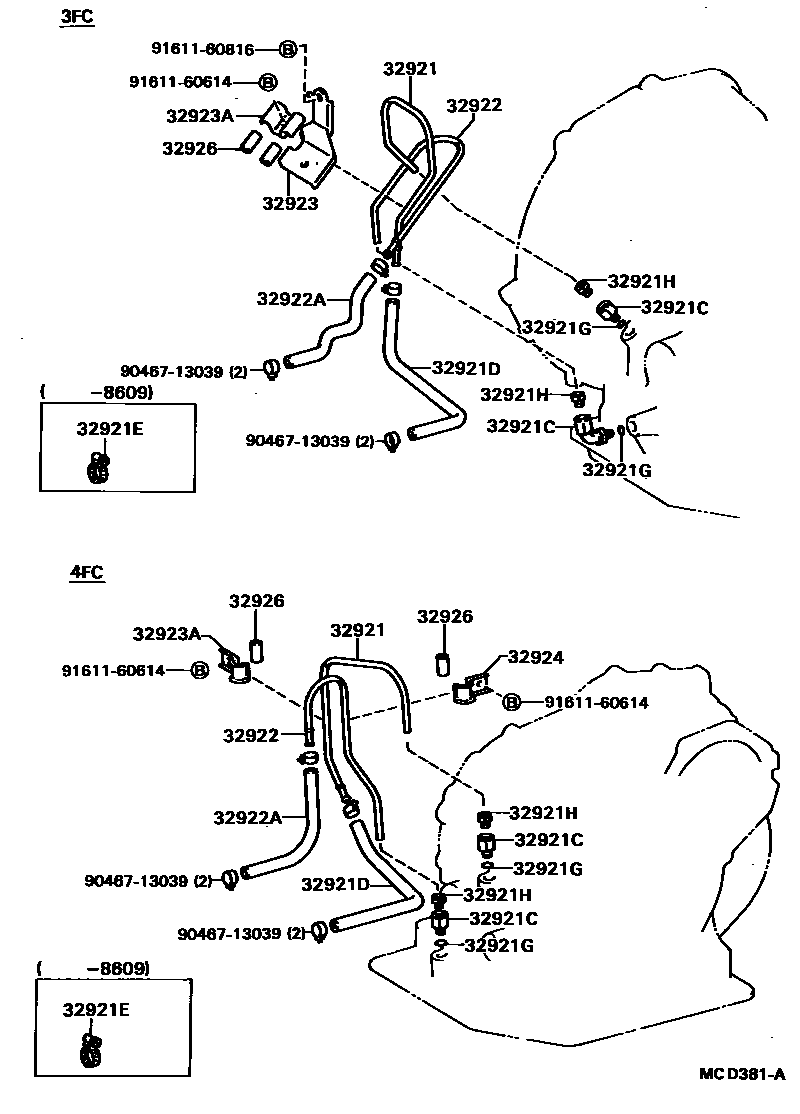

Toyota COROLLA EPC diagram 3514, 变速器油冷却器和配管(ATM), with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-10040 · 32921-10041 · 32921-16030 · 32921-16041 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-14007 · 90407-14003 |
| 32921D | Hose (for transmission oil cooler oil inlet) | 32941-22130 · 90445-15014 · 90445-16017 · 90445-16019 · 90445-16026 |
| 32921E | Hose clamp (for transmission oil cooler) | 90460-18002 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 |
| 32921H | Oil pipe nut (for transmission oil cooler pipe) | 90402-14004 · 90402-14007 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-16030 · 32922-16040 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 90445-15032 · 90445-15034 · 90445-16017 · 90445-16022 |
| 32923 | Automatic transmission oil cooler pipe clamp | 32923-10040 |
| 32923A | Automatic transmission oil cooler pipe clamp | 90462-10082 · 90462-12085 |
| 32924 | No. 2 transmission oil cooler pipe clamp | 90462-10082 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-30011 |
