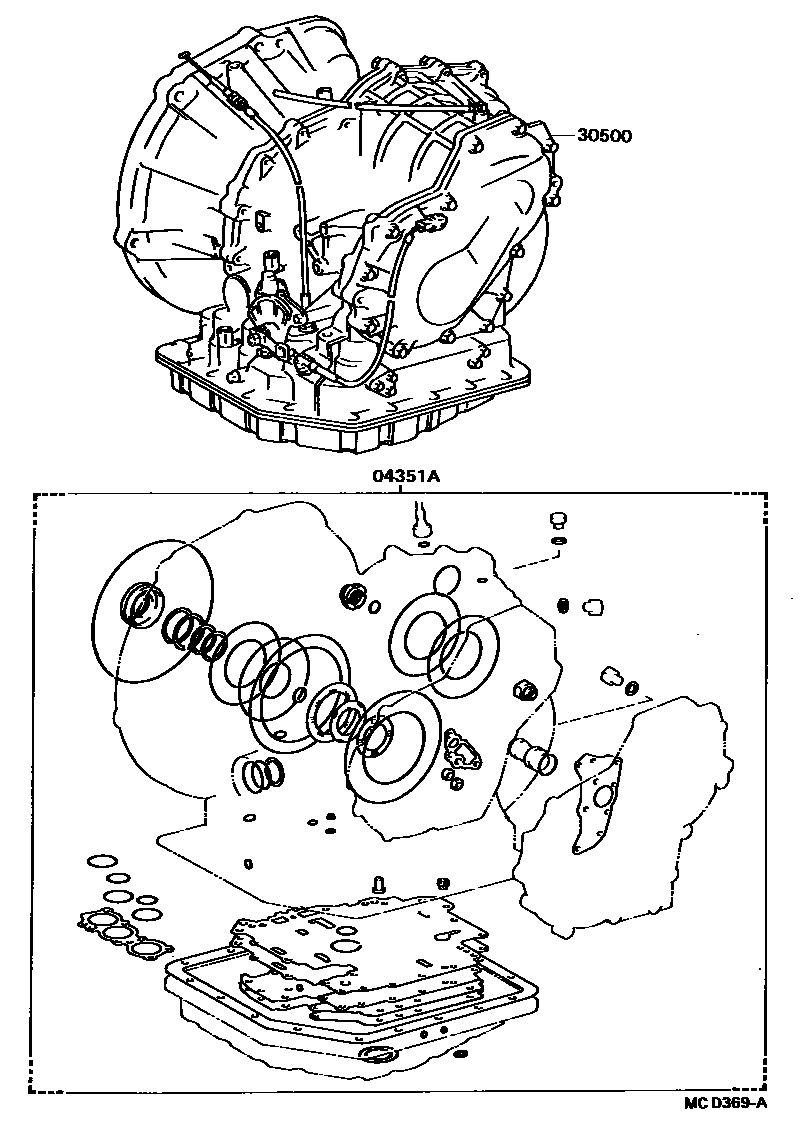

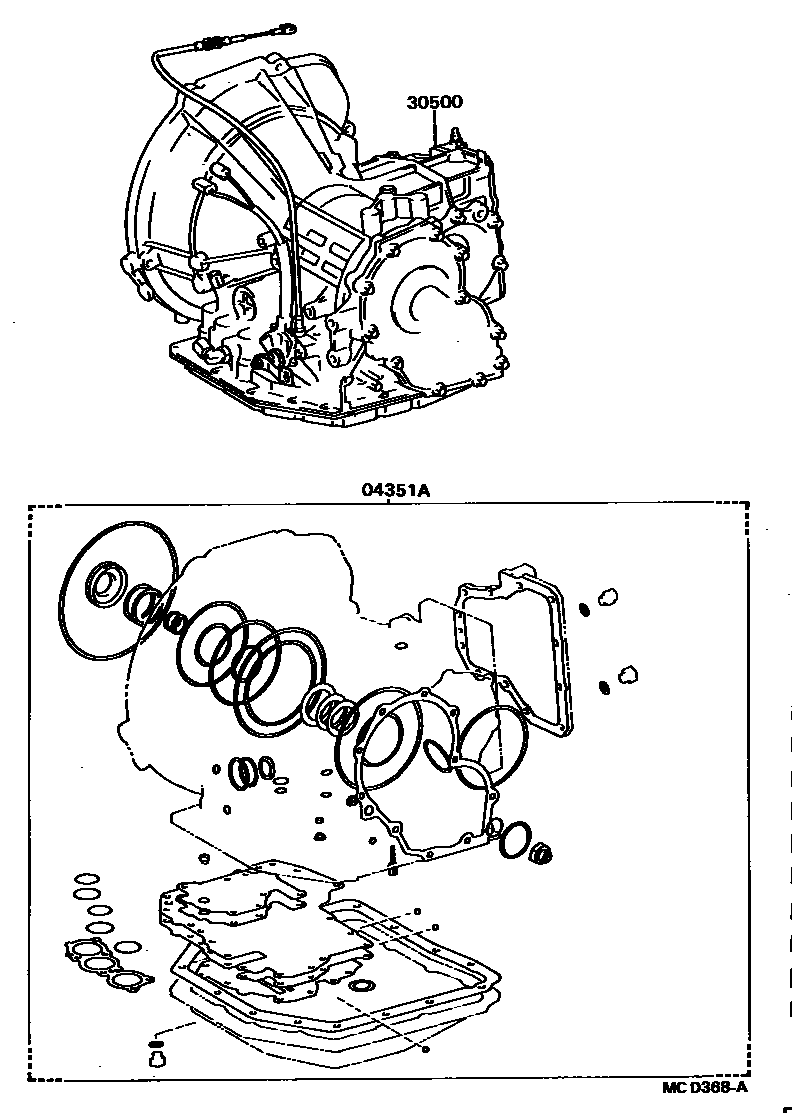

Toyota COROLLA 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501
Toyota COROLLA EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04351A | Transaxle overhaul gasket assembly (ATM) | 04351-10030 · 04351-10040 |
| 30500 | Automatic transmission axle assembly | 30500-16070 · 30500-16071 · 30500-16080 · 30500-16081 · 30500-16082 · 30500-16090 · 30500-16111 · 30500-16112 |
