Toyota COROLLA Shift Lever & Retainer — Figure 3312

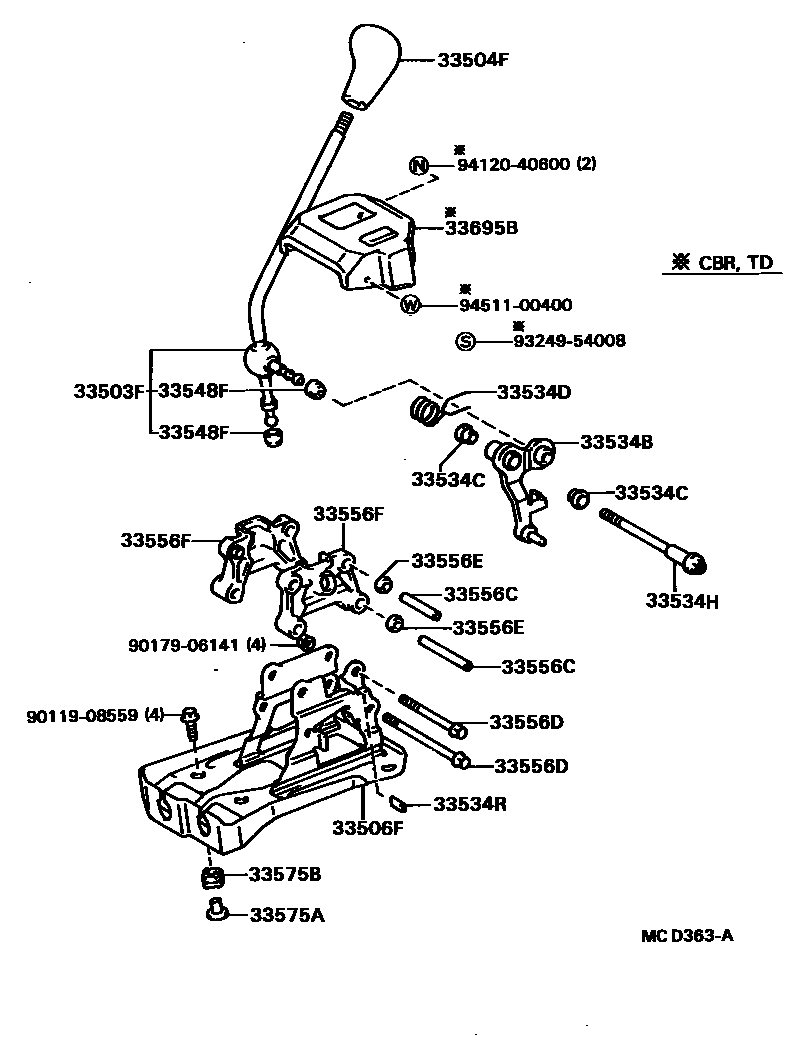

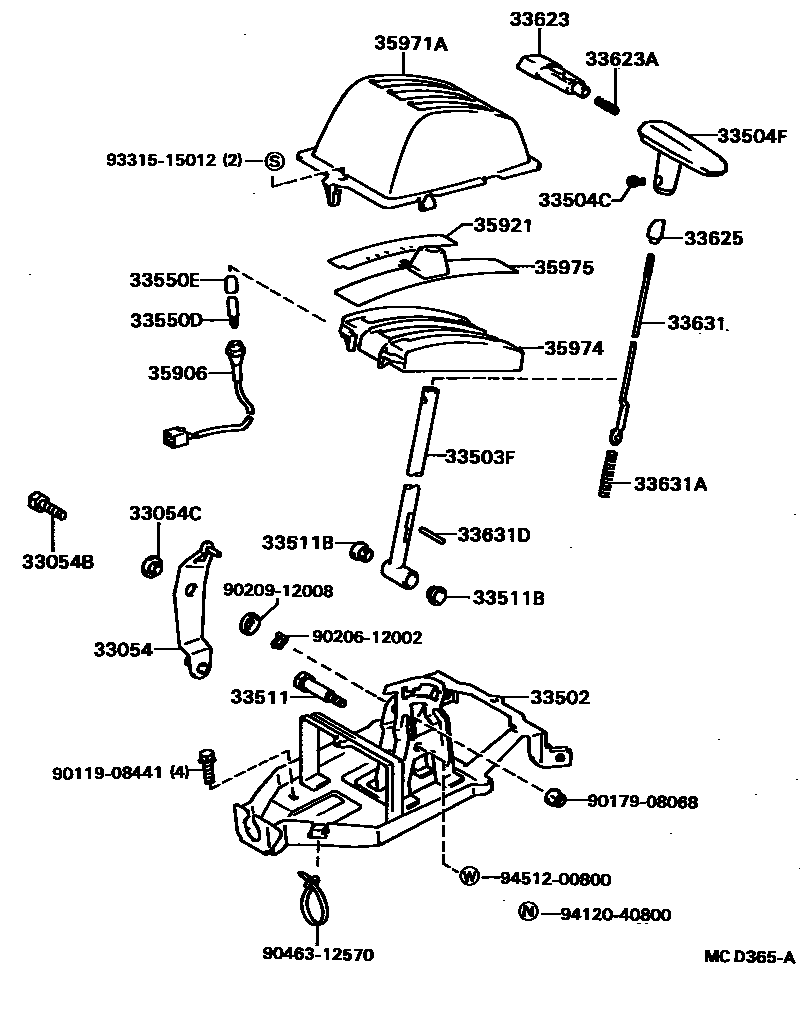

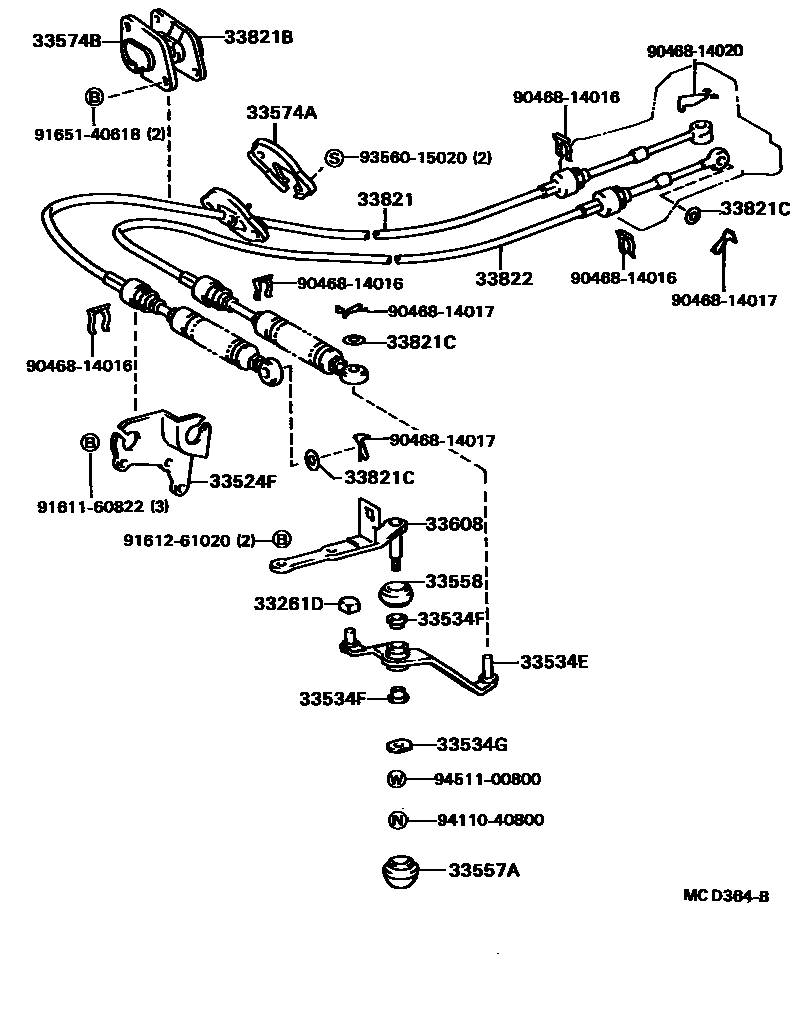

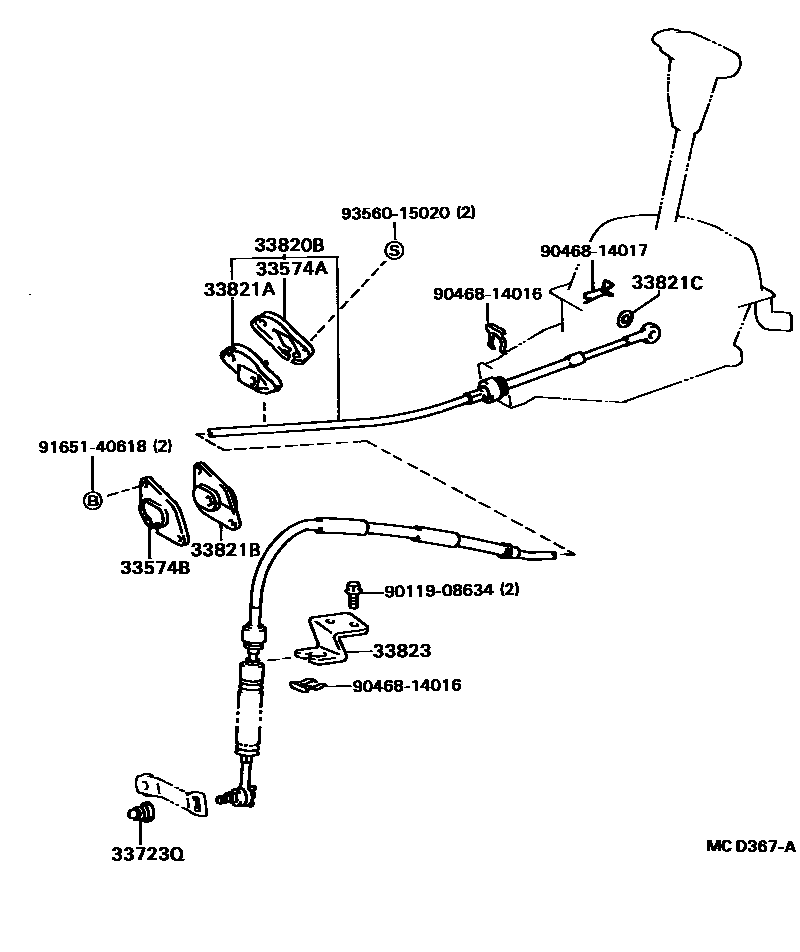

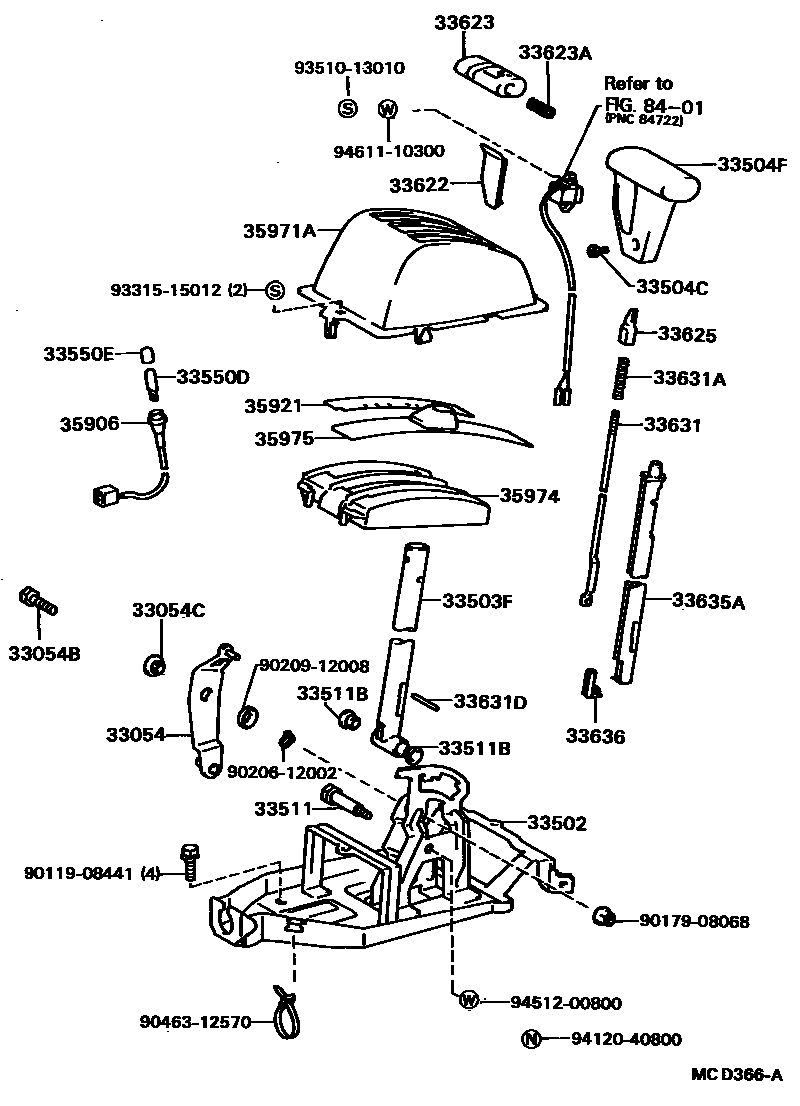

Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 5 images and 52 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33054 | No. 2 shift lever sub-assembly (for floor shift) | 33054-16020 |
| 33054B | Bolt (for shift lever No. 2) | 90119-08606 |
| 33054C | Bushing (for shift lever No. 2) | 90386-12029 |
| 33261D | Bushing (for shift lever) | 90389-10009 |
| 33502 | Shift lever base plate sub-assembly | 33502-16130 |
| 33503F | Shift lever sub-assembly (for floor shift) | 33503-16150 · 33503-16170 · 33503-16200 · 33503-16210 |
| 33504C | Screw (for securing shift lever knob) | 90159-40109 |
| 33506F | Shift control lever stopper sub-assembly (for floor shift) | 33506-16020 |
| 33511 | Control shaft (for floor shifting) | 33511-20240 |
| 33511B | Bushing (for control shaft) | 90386-11010 |
| 33524F | Lever housing bracket (for floor shift) | 33524-10030 · 33524-16020 |
| 33534B | No. 1 gear selection right-angle lever | 33509-16010 |
| 33534C | Bushing (for No. 1 gear selector right-angle lever) | 90386-12013 |
| 33534D | Torsion spring (for No. 1 gear selector right-angle lever) | 90508-20083 |
| 33534E | No. 2 gear selection right-angle lever | 33534-10030 · 33534-12030 · 33534-16010 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33534H | Bolt (for No. 1 gear selector right-angle lever) | 90109-06113 |
| 33534R | Cushion pad (for No. 1 gear selector right-angle lever) | 90540-04005 |
| 33548F | Shift lever bushing No. 1 (for floor shift) | 33548-12021 |
| 33550D | position indicator light bulb | 90981-11030 |
| 33550E | position indicator cover | 90339-04023 |
| 33556C | Collar (for transmission shift lever ball seat) | 90387-06038 · 90387-06039 |
| 33556D | Bolt (for transmission shift lever ball seat) | 90105-06095 · 90105-06096 |
| 33556E | Cushion pad (for transmission shift lever ball seat) | 90540-08016 |
| 33556F | Transmission shift lever ball seat | 33556-16030 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 · 33558-12010 |
| 33574A | No. 1 shift cable retaining ring retaining ring | 33574-10010 |
| 33574B | No. 2 shift cable seal | 33574-10030 |
| 33575A | Bushing No. 1 (for shift lever stop) | 90389-08031 |
| 33575B | Bushing No. 2 (for shift lever stop) | 90389-10018 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-10010 · 33608-10011 · 33608-12020 · 33608-12021 · 33608-16010 |
| 33623A | Compression spring (for shift lever knob button) | 90501-07009 |
| 33625 | Shift lever handle sleeve | 33625-22020 · 33625-32010 |
| 33631 | Locking lever | 33631-16040 · 33631-16050 |
| 33631A | Compression spring (for locking lever) | 90501-07005 · 90501-08017 |
| 33631D | Grooved pin (for locking lever) | 90256-04003 |
| 33635A | Cable guide No. 1 (for gear selector) | 33635-12020 |
| 33636 | Cable guide No. 2 (for gear selector) | 33636-35010 |
| 33695B | Gear selector spring cover (for floor shift) | 33695-16020 |
| 33723Q | Nut (for connecting rod swivel joint) | 90179-08070 |
| 33820B | Transmission control cable assembly | 33820-16050 · 33820-16060 · 33820-16070 |
| 33821 | Transmission shift control cable (for floor-mounted shifting) | 33821-16010 · 33821-16020 |
| 33821A | No. 1 retaining ring (for transmission control cable) | 90480-01281 |
| 33821B | No. 2 retaining ring (for transmission control cable) | 90480-01288 · 90480-01291 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08267 · 90201-10042 |
| 33822 | Transmission selector control cable (for floor-mounted shifting) | 33822-16010 · 33822-16020 |
| 33823 | No. 1 transmission control cable bracket | 33823-10010 · 33823-16010 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-16040 |
| 35921 | control position indicator board | 35921-16100 |
| 35975 | Slide cover (for position indicator light) | 35975-16050 · 35975-16060 |
