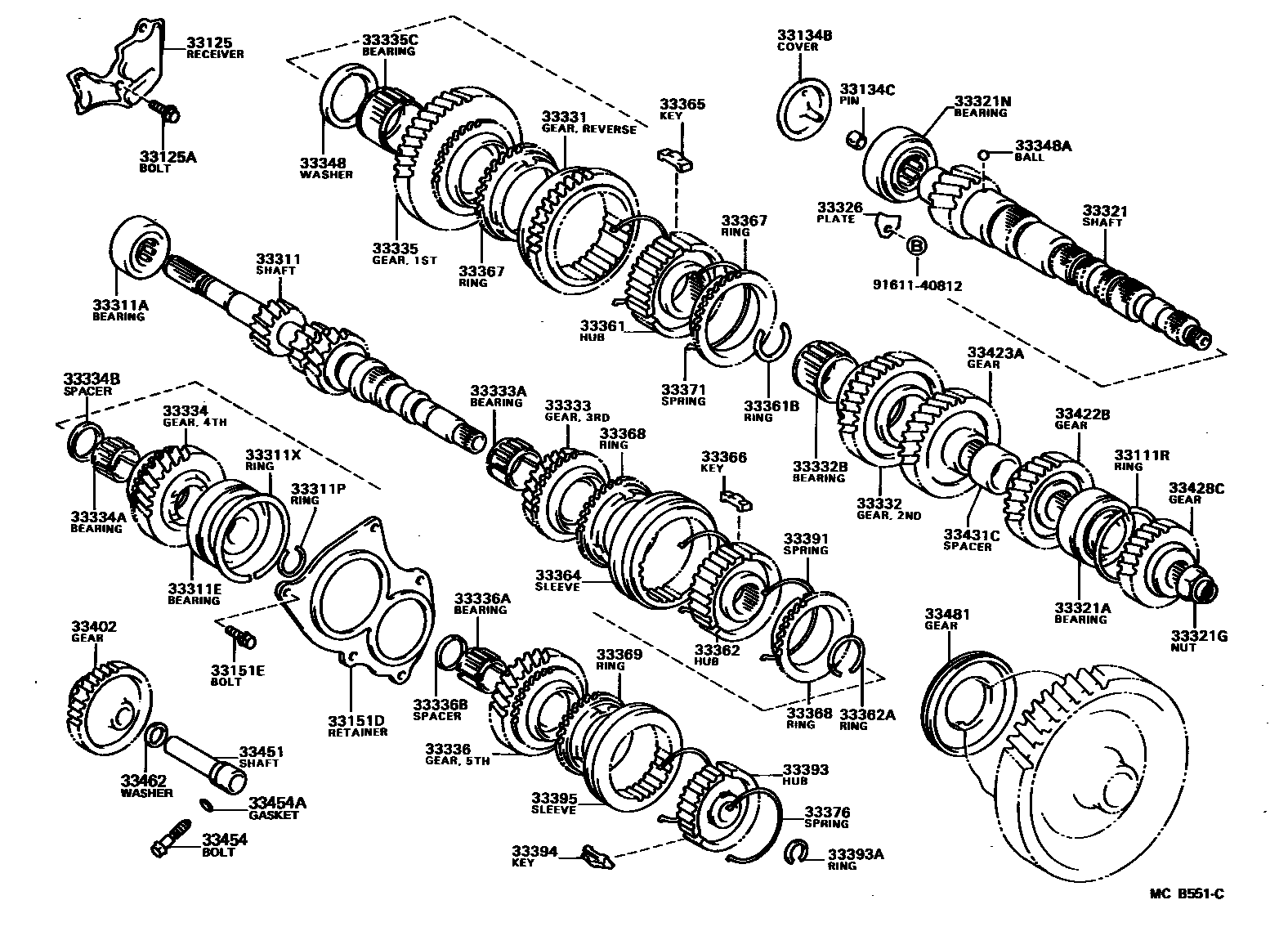

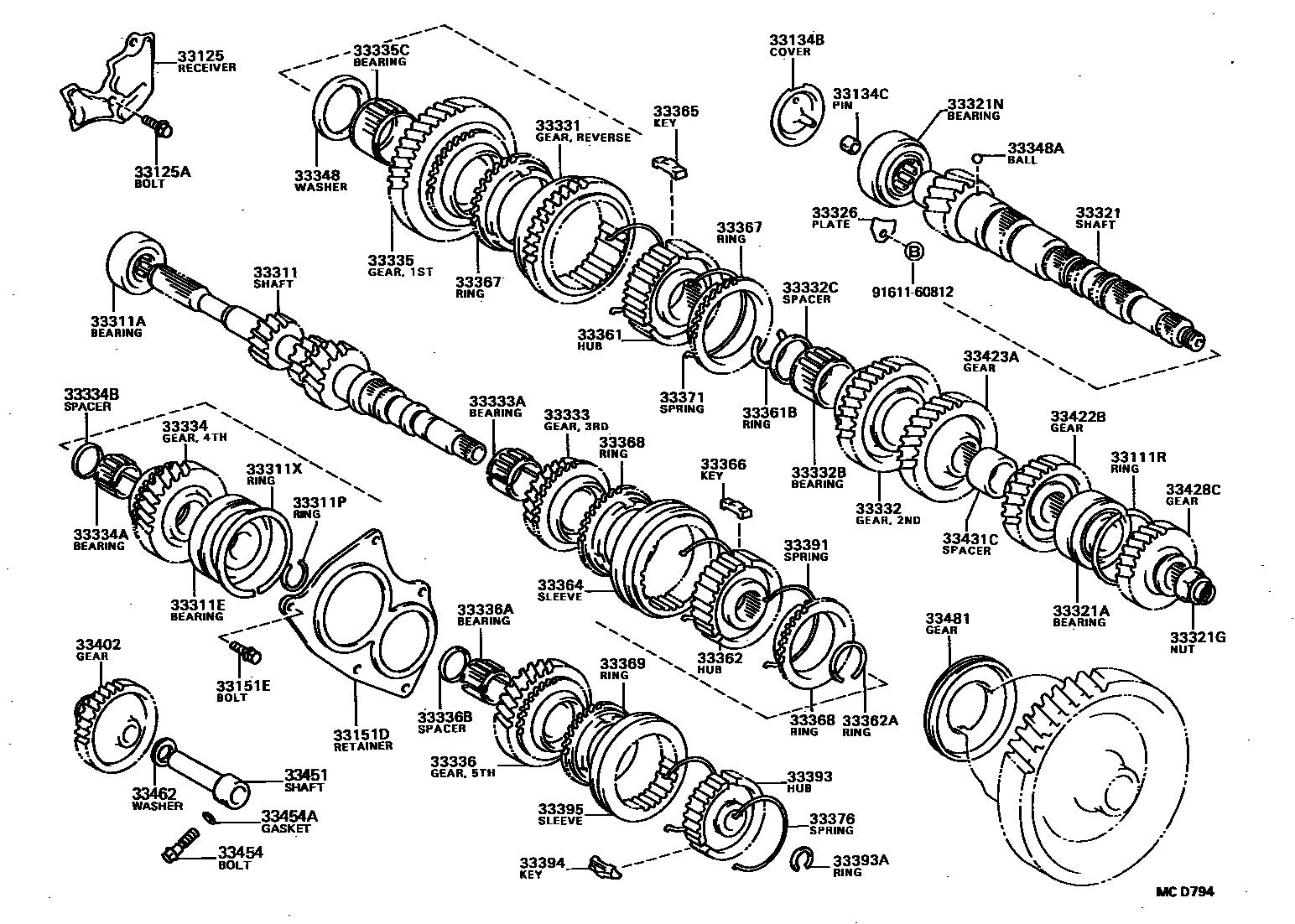

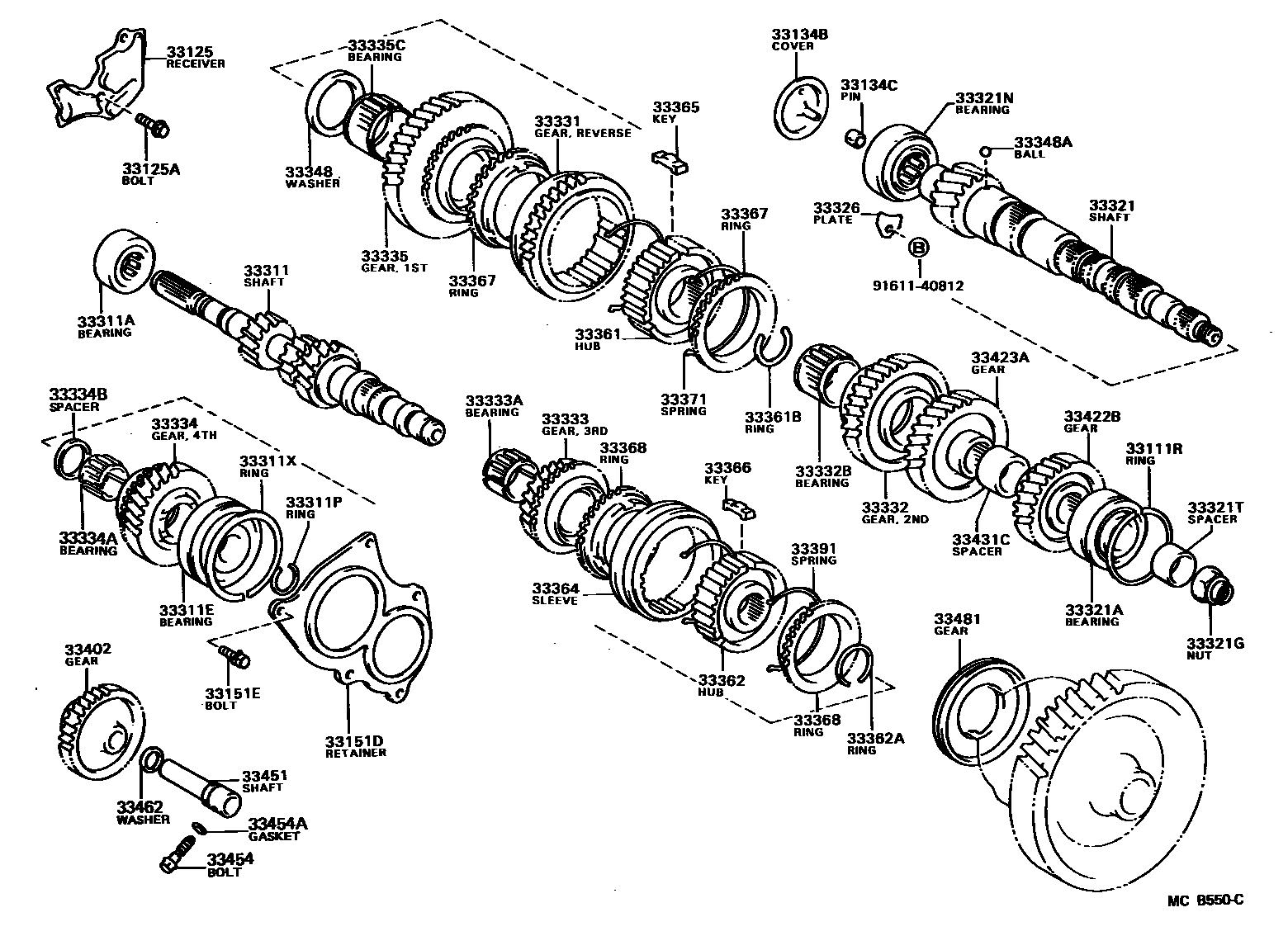

Toyota COROLLA 变速器齿轮(MTM) — Figure 3305
Toyota COROLLA EPC diagram 3305, 变速器齿轮(MTM), with 3 images and 61 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33111R | Hole snap ring (for output shaft rear bearing) | 90520-57002 |
| 33125 | Manual transmission axle housing oil collection tank | 33125-12010 |
| 33125A | Bolt (for transaxle housing oil sump) | 91611-60812 |
| 33134B | Output shaft cover (MTM) | 33134-12020 · 33134-12021 |
| 33134C | Slotted spring pin (for output shaft) | 90254-10001 |
| 33151D | Rear bearing retainer (MTM) | 33151-10040 · 33151-12020 |
| 33151E | Bolt (for rear bearing retainer) | 91611-60820 |
| 33311 | input shaft | 33311-10050 · 33311-10051 · 33311-10060 · 33311-10061 · 33311-12041 |
| 33311A | Bearing (for front input shaft) | 90365-25017 · 90365-25021 |
| 33311E | Radial ball bearing (for rear input shaft) | 90363-25043 · 90363-25048 |
| 33311P | Shaft snap ring (for input shaft rear bearing) | 90520-22006 · 90520-22007 · 90520-22008 · 90520-22009 · 90520-22010 · 90520-22011 |
| 33311X | Hole snap ring (for input shaft rear bearing) | 90520-64002 |
| 33321 | output shaft | 33321-10040 · 33321-10041 · 33321-10050 · 33321-10051 · 33321-10060 · 33321-10061 · 33321-10090 · 33321-10091 · 33321-12051 |
| 33321A | Bearings (for rear output shaft) | 90363-25029 · 90363-25044 |
| 33321G | Nut (used to secure the manual transmission rear output shaft) | 90179-18005 |
| 33321N | Bearing (for front output shaft) | 90365-33003 · 90365-33005 |
| 33321T | Spacer (for output shaft) | 33431-12020 |
| 33326 | Bearing locking plate | 33326-12010 |
| 33331 | reverse gear | 33331-12020 |
| 33332 | Second gear | 33033-10010 · 33033-12010 |
| 33332B | Needle roller bearing (for second gear gear) | 90364-32014 · 90364-32017 |
| 33332C | Spacer (for second gear bearing) | 90560-32008 |
| 33333 | Third gear | 33034-10011 · 33034-10021 · 33034-12020 |
| 33333A | Needle roller bearing (for third gear) | 90364-31002 · 90364-31004 |
| 33334 | fourth gear | 33035-10020 · 33035-10021 · 33035-10030 · 33035-10031 · 33035-12011 · 33035-12021 |
| 33334A | Needle roller bearing (for fourth gear) | 90364-26004 · 90364-29002 |
| 33334B | Spacer (for fourth gear bearing) | 90560-29001 |
| 33335 | first gear | 33032-10020 · 33032-12020 |
| 33335C | Needle roller bearing (for first gear) | 90364-38007 · 90364-38008 |
| 33336 | fifth gear | 33036-10010 · 33036-12010 · 33036-12011 · 33036-12020 · 33036-12021 · 33036-16010 |
| 33336A | Needle roller bearings (for fifth gear) | 90364-24006 |
| 33336B | Spacer (for fifth gear bearing) | 90560-25006 |
| 33348 | First gear thrust washer | 33348-12010 |
| 33348A | Pin or steel ball (for first gear thrust washer) | 90360-05012 |
| 33361 | No. 1 transmission clutch hub | 33361-12030 |
| 33361B | Shaft snap ring (for clutch hub No. 1) | 90520-29018 · 90520-29019 · 90520-29020 · 90520-29021 · 90520-29022 · 90520-29023 |
| 33362 | No. 2 transmission clutch hub | 33362-12020 |
| 33362A | Shaft snap ring (used to secure No. 2 clutch hub) | 90520-27046 · 90520-27047 · 90520-27048 · 90520-27049 · 90520-27050 · 90520-27051 · 90520-28020 · 90520-28021 · 90520-28022 · 90520-28023 · 90520-28024 · 90520-28025 |
| 33364 | No. 2 transmission hub sleeve | 33364-12010 |
| 33365 | No. 1 synchromesh shift key | 33365-12021 |
| 33366 | No. 2 synchromesh shift key | 33366-12020 |
| 33367 | Synchronizer lock ring No. 1 | 33367-12031 |
| 33368 | Synchronizer lock ring No. 2 | 33368-12020 |
| 33369 | No. 3 synchronizer lock ring | 33369-12020 |
| 33371 | No. 1 synchromesh shift key spring | 33371-12020 |
| 33376 | Synchronizer shift key spring (for No. 3 clutch hub) | 33391-12030 |
| 33391 | No. 2 synchromesh shift key spring | 33391-12020 |
| 33393 | No. 3 transmission clutch hub | 33393-12010 |
| 33393A | Shaft snap ring (for No. 3 transmission clutch hub) | 90520-18002 · 90520-18003 · 90520-18004 · 90520-18006 · 90520-18007 · 90520-18008 · 90520-18009 |
| 33394 | No. 3 synchromesh shift key | 33394-12010 · 33394-12011 |
| 33395 | No. 3 transmission hub sleeve | 33395-12010 |
| 33402 | Reverse idler gear sub-assembly | 33402-10030 · 33402-12021 |
| 33422B | Fourth gear driven gear | 33422-10010 · 33422-10020 · 33422-12010 · 33422-12020 |
| 33423A | Third gear driven gear | 33423-10011 · 33423-10021 · 33423-12010 |
| 33428C | fifth speed driven gear | 33428-10020 · 33428-12010 · 33428-12020 · 33428-16030 |
| 33431C | Output gear spacer | 33431-12010 |
| 33451 | Reverse gear idler shaft | 33451-10021 · 33451-12021 |
| 33454 | Shaft fixing bolt | 90109-08097 |
| 33454A | Pad (for shaft fixing bolt) | 90430-08006 · 90430-08010 |
| 33462 | Reverse idler thrust washer | 33462-12010 |
| 33481 | Speedometer driving gear (MTM) | 33481-10080 · 33481-12040 |
