Toyota COROLLA 化油器 — Figure 2103

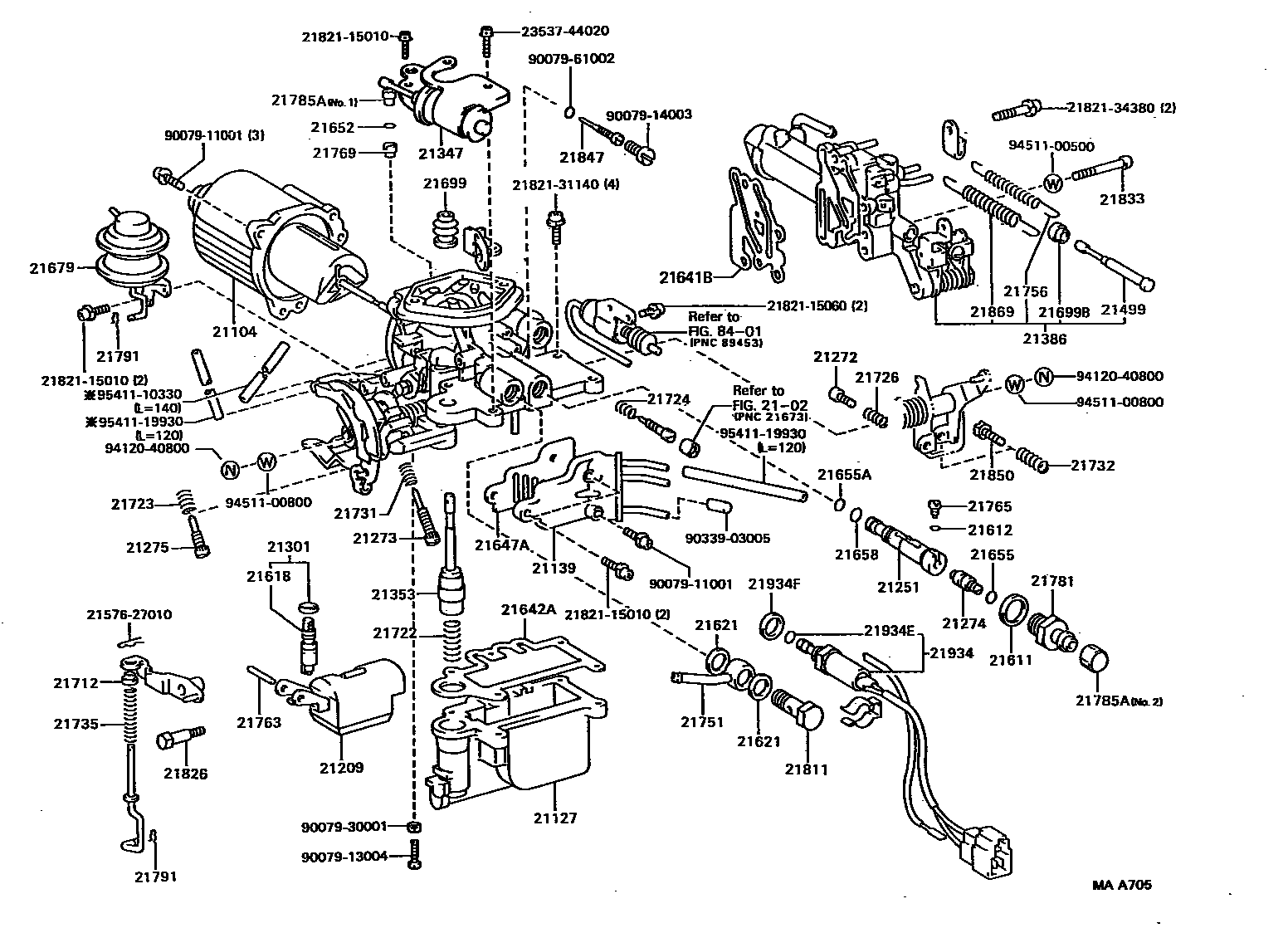

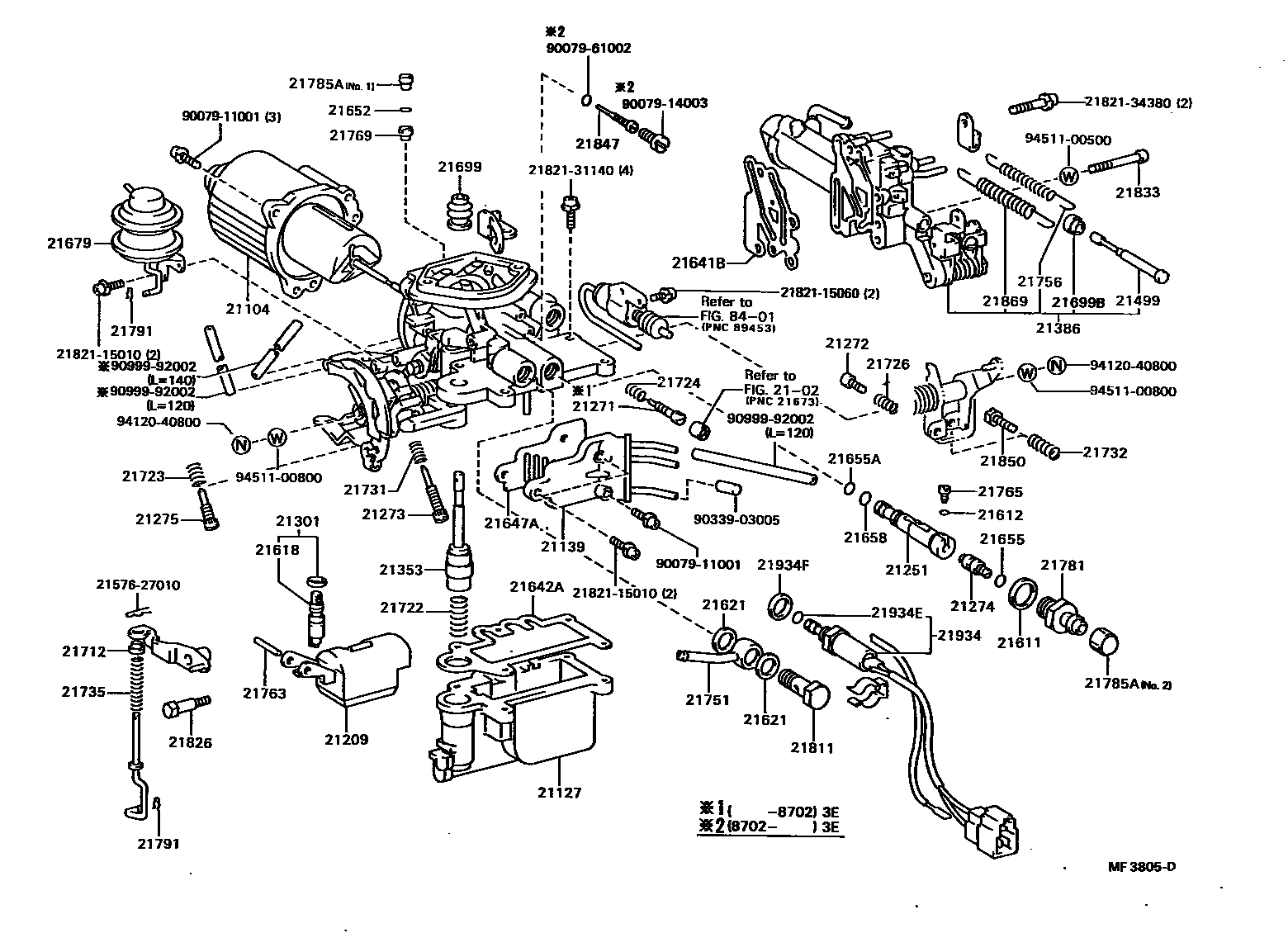

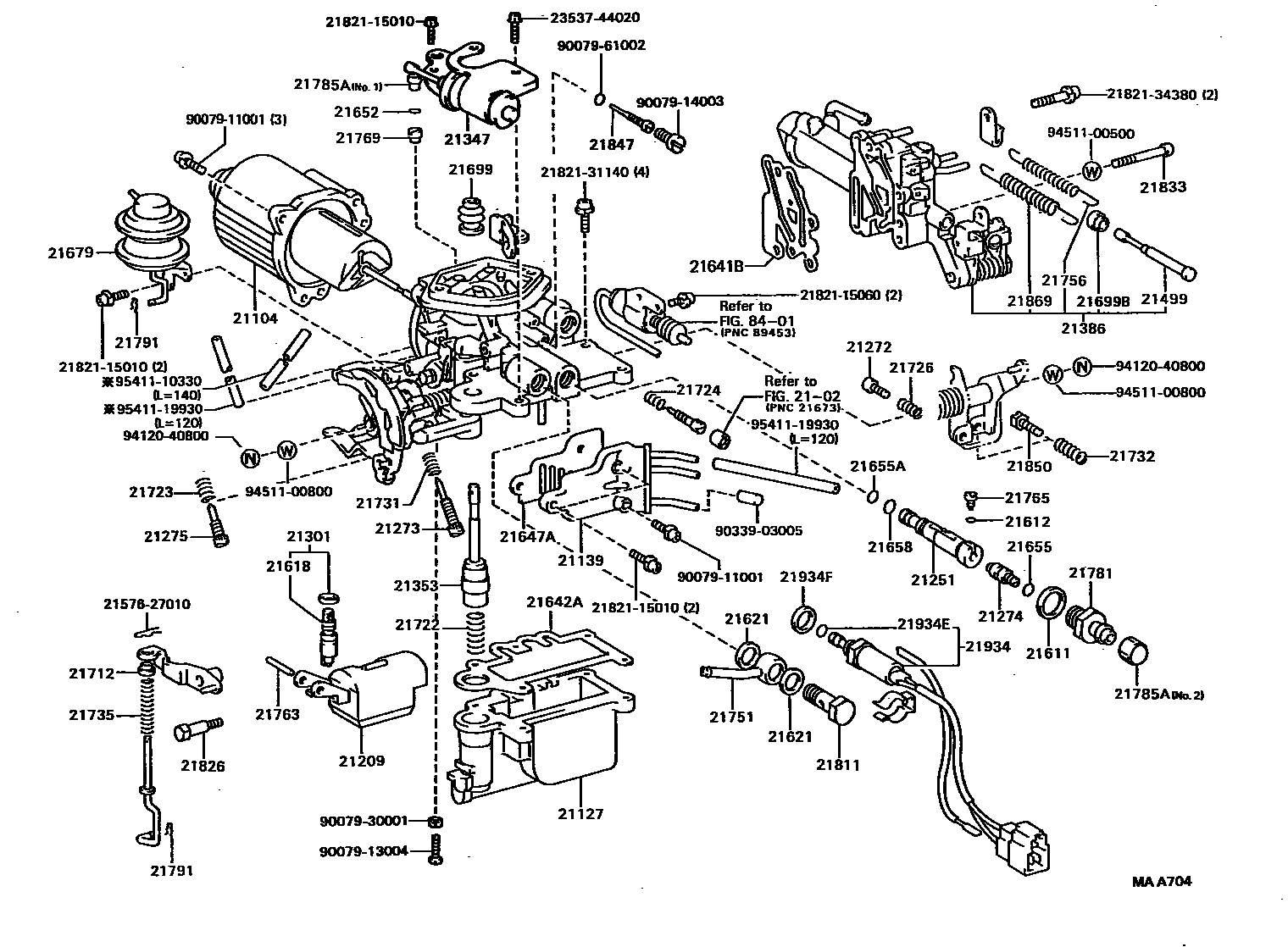

Toyota COROLLA EPC diagram 2103, 化油器, with 3 images and 54 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 21104 | Suction chamber sub-assembly | 21014-11111 · 21014-11231 · 21014-11233 · 21014-11280 · 21014-11300 · 21014-11340 · 21014-11341 · 21014-11360 |
| 21127 | float room | 21127-11090 · 21127-11230 · 21127-11300 · 21127-11340 · 21127-11341 · 21127-11342 |
| 21139 | Adapter (for carburetor connecting pipe) | 21139-11110 · 21139-11230 |
| 21209 | Float sub-assembly | 21209-11090 |
| 21251 | first main measuring hole | 21251-11180 · 21251-11340 · 21251-11540 · 21251-15461 |
| 21271 | Idle speed adjustment screw | 21271-11090 · 21271-11340 |
| 21272 | First gear idle speed adjustment screw | 21276-11090 |
| 21273 | Throttle adjustment screw | 21273-11090 · 21273-11230 |
| 21274 | First throttle adjustment screw | 21275-15460 |
| 21275 | Adjustment screw | 21844-33010 |
| 21301 | Needle valve sub-assembly | 21301-15250 |
| 21347 | Solenoid valve | 21347-11230 |
| 21353 | pump plunger | 21353-11090 · 21353-11230 · 21353-11231 · 21353-11300 · 21353-11340 · 21353-11341 |
| 21386 | compensator | 21386-11110 · 21386-11300 · 21386-11301 · 21386-11320 · 21386-11340 · 21386-11341 · 21386-11342 · 21386-11360 · 21386-11361 |
| 21499 | push rod (for carburetor) | 21499-11110 · 21499-11230 · 21499-11231 · 21499-11340 · 21499-11360 |
| 21611 | Main gage hole gasket | 21611-15250 |
| 21612 | Enrichment valve gasket | 21612-15250 |
| 21618 | Needle seat gasket | 21618-14010 |
| 21621 | Oil pipe joint gasket | 21633-24030 |
| 21641B | compensator pad | 21641-11090 · 21641-11340 |
| 21642A | float chamber liner | 21642-11090 · 21642-15390 |
| 21647A | Joint gasket | 21647-11090 |
| 21652 | O-ring (for suction chamber adjustment) | 21652-15250 |
| 21655 | O-ring (for tappet) | 21655-60010 |
| 21655A | O-ring (for idle speed measuring hole) | 21655-15250 |
| 21658 | O-ring (for main pipe) | 21658-15250 |
| 21679 | locator | 21679-11110 · 21679-11230 |
| 21699 | Dust boot (for pump plunger) | 21699-28150 |
| 21699B | Dust boot (for compensator) | 21699-11090 |
| 21712 | Sliding connecting rod bushing | 21712-38010 |
| 21722 | Pump damping spring | 21722-22010 |
| 21723 | Idle speed adjustment spring | 21724-11340 · 21724-51011 |
| 21724 | Throttle valve adjustment spring | 21723-11230 · 21723-38010 |
| 21726 | First gear idle speed adjustment spring | 21723-60010 |
| 21731 | Deceleration buffer or positioner adjustment spring | 21723-21030 |
| 21732 | Throttle valve adjustment spring | 21726-15251 |
| 21735 | Pump rod spring | 21735-11090 · 21735-11150 · 21735-11340 · 21735-15250 · 21735-21032 · 21735-34470 |
| 21751 | Oil pipe joint | 21894-11090 · 21894-11230 · 21894-11590 |
| 21756 | Return spring (for throttle shaft) | 21756-15250 |
| 21763 | floating lever pin | 21763-38010 |
| 21765 | Pin (for pump plunger) | 21765-15250 |
| 21769 | Pin (for suction chamber adjustment) | 21769-15250 |
| 21781 | Main oil gallery screw plug (for carburetor measuring hole) | 21781-15461 |
| 21785A | Plate screw plug (for suction chamber adjustment) | 21672-15250 · 21785-11090 · 21785-13210 |
| 21791 | No. 1 snap ring (for carburetor connecting rod) | 21791-60010 |
| 21811 | Oil pipe joint bolt | 21811-11060 |
| 21826 | Pump rod fixing screw | 21826-24470 |
| 21833 | No. 1 fixing screw (for carburetor body assembly) | 21833-31012 |
| 21847 | screws | 21842-11390 |
| 21850 | Throttle switch adjustment screw | 21272-11090 · 21272-11230 |
| 21869 | Spring (for main measuring hole) | 21869-11540 · 21869-15250 |
| 21934 | Throttle solenoid valve | 21062-11110 · 21062-11120 · 21062-11230 · 21062-11300 · 21062-11320 · 21062-11340 · 21062-11341 · 21062-11342 · 21062-11360 · 21062-11361 |
| 21934E | O-ring (for solenoid valve) | 21656-15250 |
| 21934F | padding | 21633-15250 |
