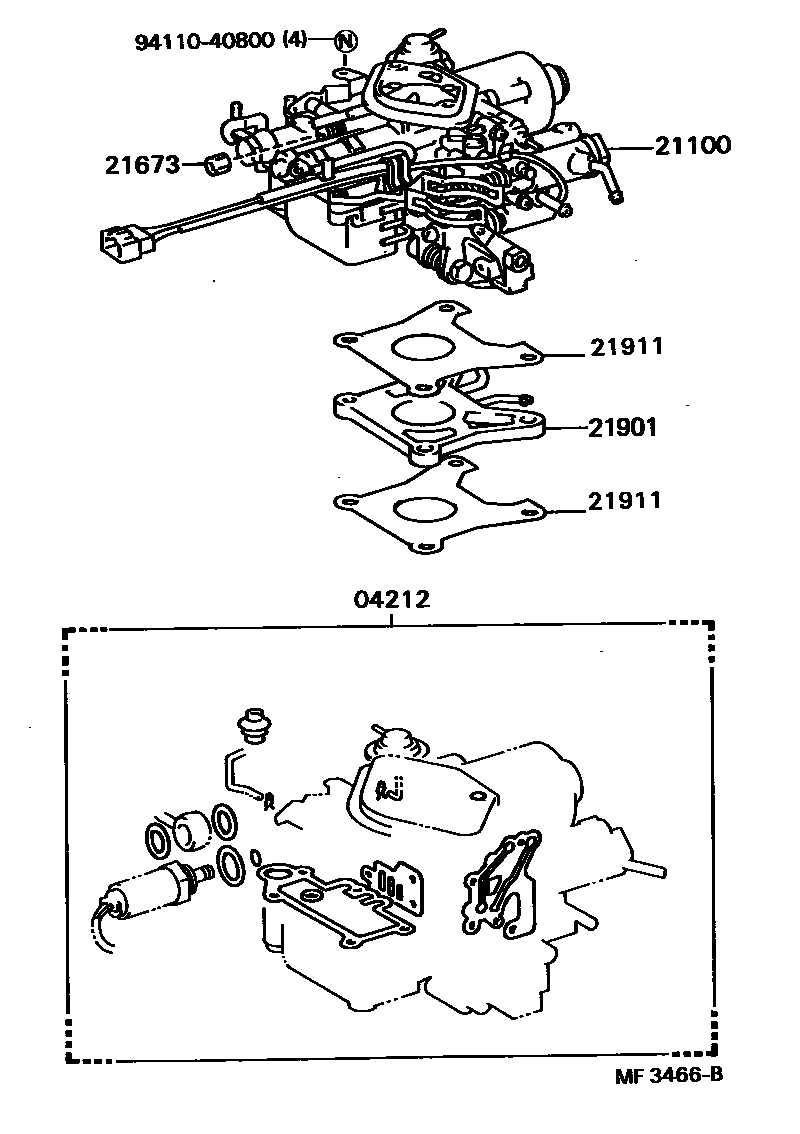

Toyota COROLLA carburetor assembly — Figure 2102
Toyota COROLLA EPC diagram 2102, carburetor assembly, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04212 | carburetor gasket assembly | 04212-11020 · 04212-11030 · 04212-11040 · 04212-15091 |
| 21100 | carburetor assembly | 21100-11280 · 21100-11281 · 21100-11300 · 21100-11301 · 21100-11302 · 21100-11303 · 21100-11320 · 21100-11321 · 21100-11322 · 21100-11323 · 21100-11340 · 21100-11341 · 21100-11342 · 21100-11343 · 21100-11360 · 21100-11361 · 21100-11362 · 21100-11363 |
| 21673 | Idle speed limit cap | 21673-13280 |
| 21901 | No. 1 carburetor heat insulation pad sub-assembly | 21901-11010 · 21901-11030 |
| 21911 | carburetor gasket | 21911-11020 · 21911-11030 |
