Toyota COROLLA 点火线圈和火花塞 — Figure 1901

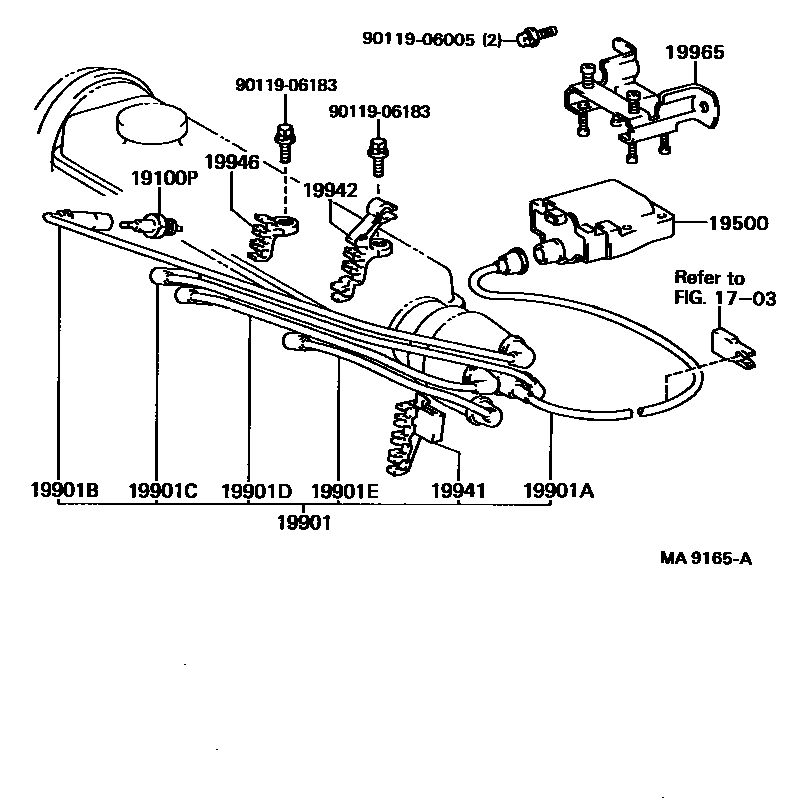

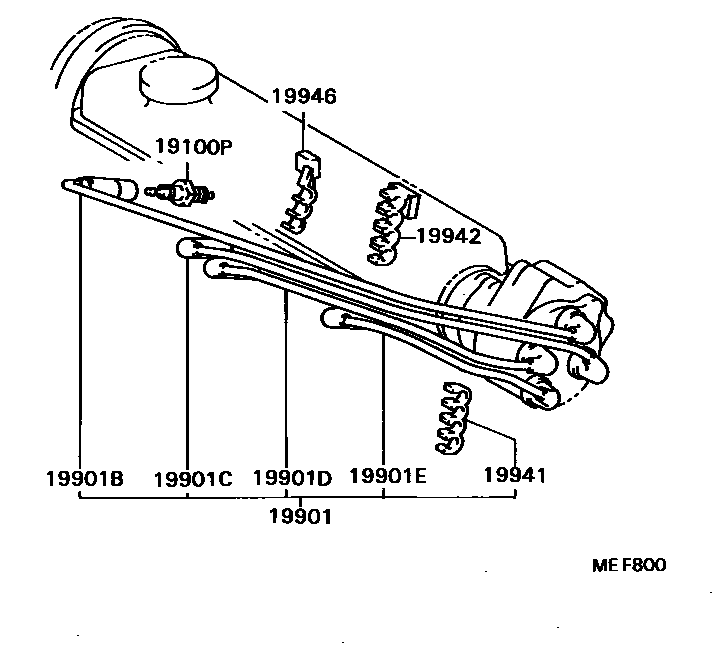

Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01094 · 90919-01125 · 90919-01126 · 90919-01147 · 90919-01148 |
| 19500 | Ignition coil assembly | 90919-02175 |
| 19850 | Glow plug assembly | 19850-54050 |
| 19850B | Screw seal (for glow plug) | 90189-04024 |
| 19856 | Connecting nut (for glow plug) | 90170-04002 |
| 19871 | Glow plug connector No. 1 | 19871-55010 |
| 19901 | Coil and spark plug assembly with damper wire | 90919-21389 · 90919-22167 · 90919-22168 · 90919-22188 |
| 19901A | coil damping line | 90919-13263 · 90919-13278 |
| 19901B | No. 1 spark plug damper wire | 90919-12606 · 90919-12607 · 90919-12696 |
| 19901C | No. 2 spark plug damper wire | 90919-12569 · 90919-12573 · 90919-12697 |
| 19901D | No. 3 spark plug damper wire | 90919-12570 · 90919-12574 · 90919-12698 |
| 19901E | No. 4 spark plug damper wire | 90919-12571 · 90919-12575 · 90919-12661 · 90919-12694 |
| 19941 | No. 1 damping wire clip | 90464-00358 · 90464-00440 |
| 19942 | No. 2 damping wire clip | 90464-00372 · 90929-01138 |
| 19946 | No. 3 impedance wire clip | 90464-00404 · 90464-00439 |
| 19965 | No. 1 ignition coil band | 90919-03103 |
