Toyota COROLLA Manifold — Figure 1701

Toyota COROLLA EPC diagram 1701, Manifold, with 5 images and 55 PNC and OE references.

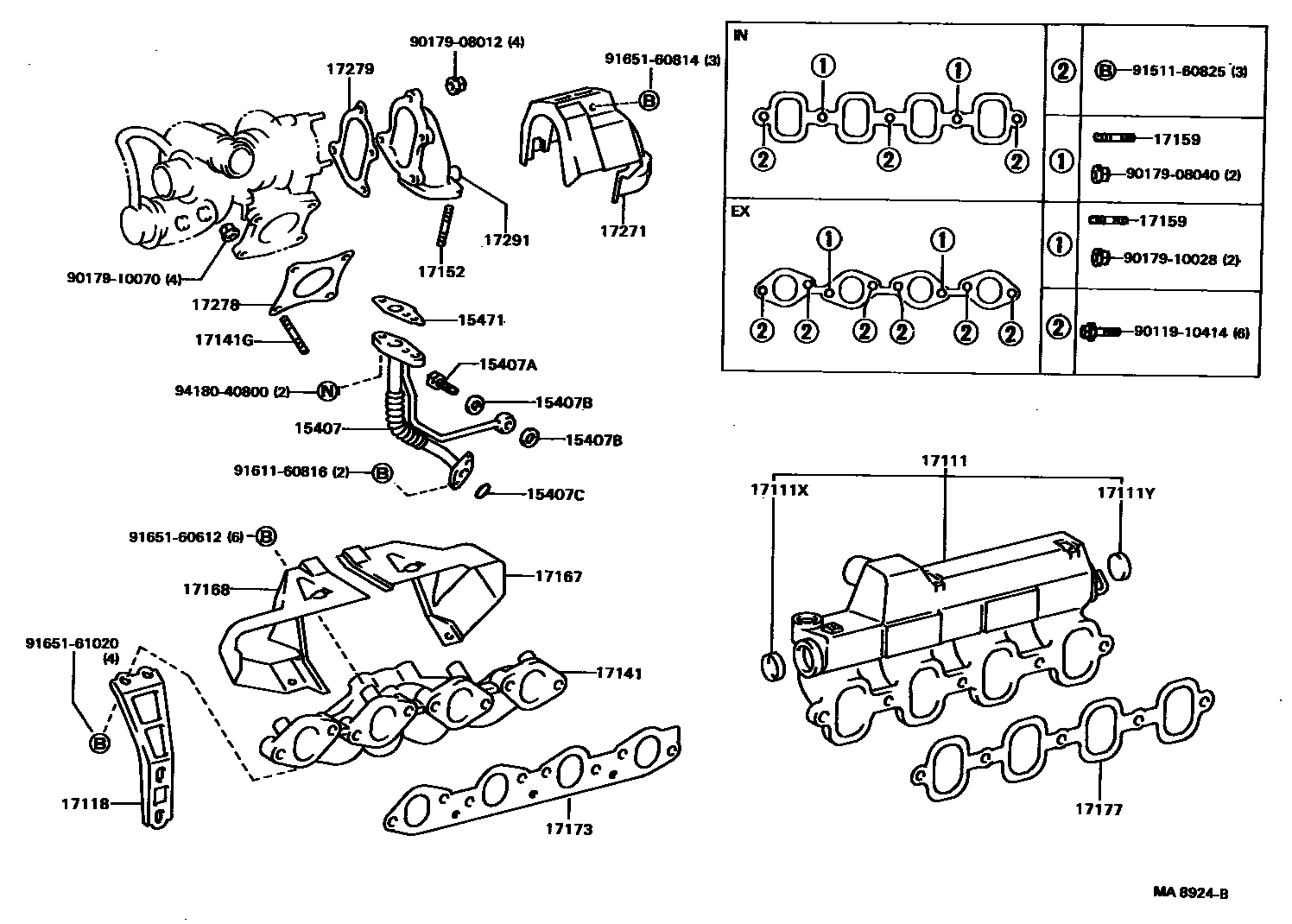

Toyota COROLLA Manifold EPC diagram — MA8924B
Manifold — MA8924B (198605 – 999999)

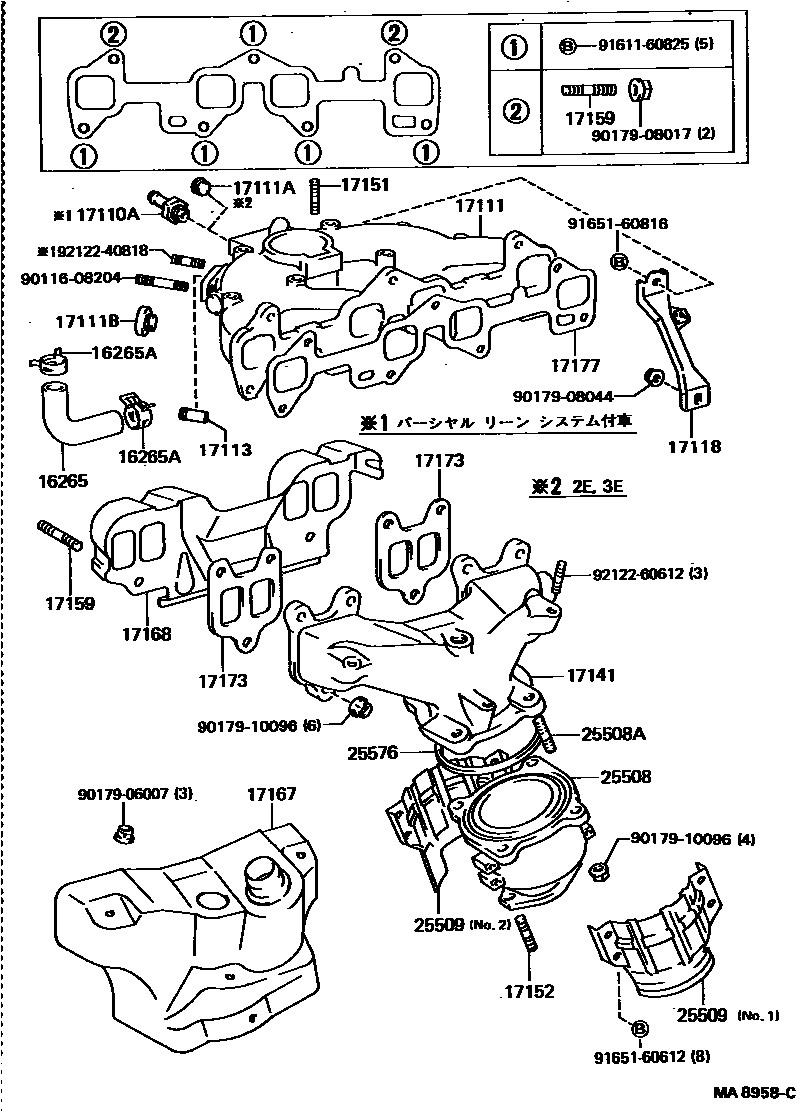

Toyota COROLLA Manifold EPC diagram — MA8958C
Manifold — MA8958C (198605 – 999999)

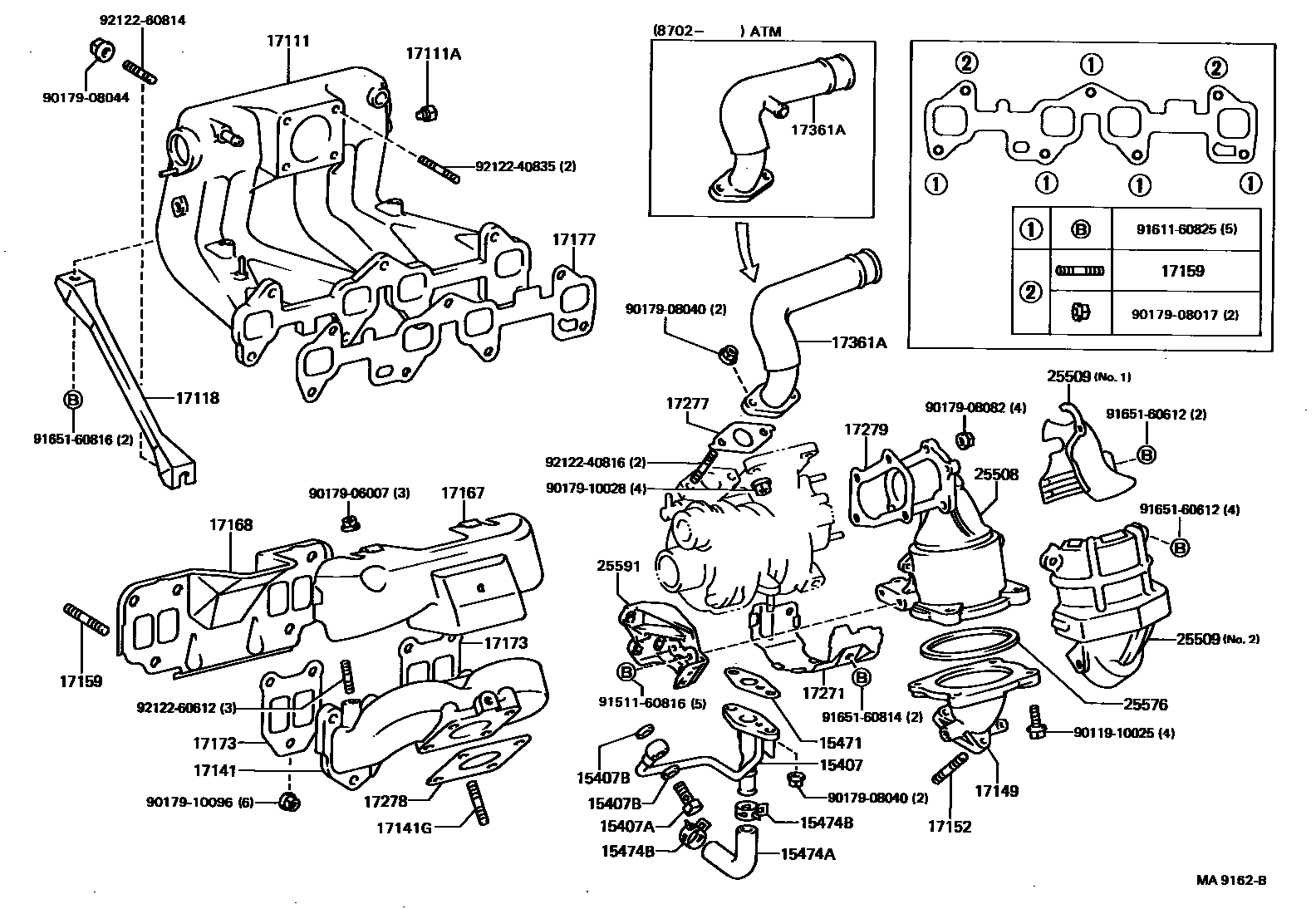

Toyota COROLLA Manifold EPC diagram — MA9162B
Manifold — MA9162B (198609 – 999999)

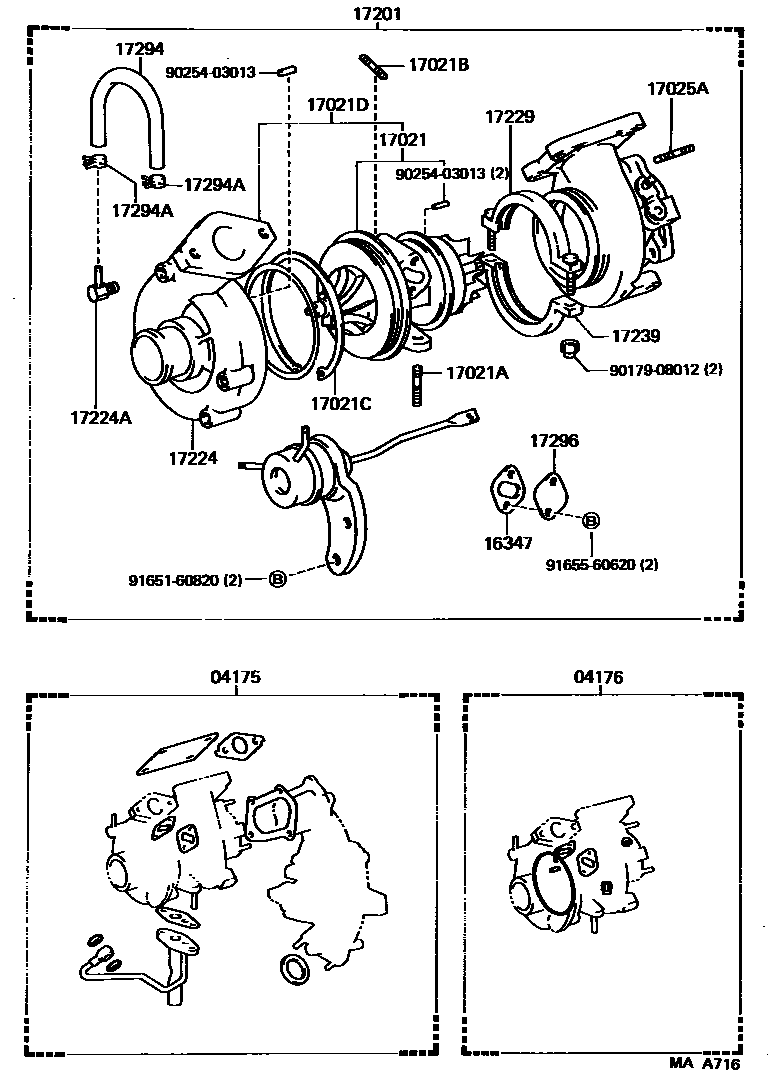

Toyota COROLLA Manifold EPC diagram — MAA716
Manifold — MAA716 (198609 – 999999)

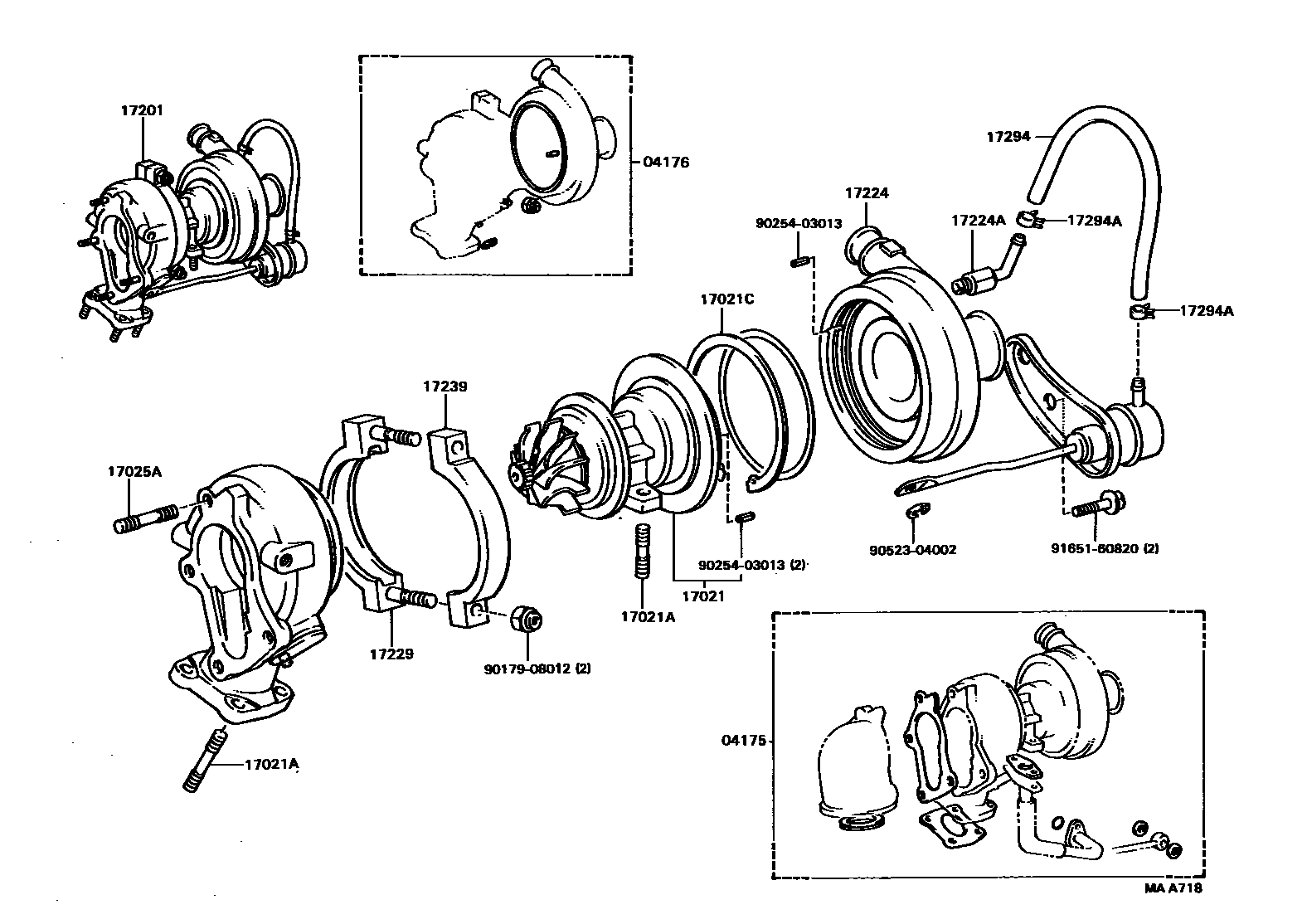

Toyota COROLLA Manifold EPC diagram — MAA718
Manifold — MAA718 (198605 – 999999)

PNC and OE references

PNCPart nameOE numbers
04175Turbocharger gasket assembly04175-11010 · 04175-11020 · 04175-55010
04176Turbocharger seal assembly04176-70010
15407Turbine oil inlet pipe sub-assembly15407-11010 · 15407-55010
15407AConnector bolt (for turbine oil inlet pipe)90401-10006 · 90401-14091
15407BGasket (for turbine oil inlet pipe)90430-10035 · 90430-14006 · 90430-14235
15407CO-ring (for turbine oil pipe)96732-19023
15471Turbine oil inlet pipe gasket15471-35010 · 15471-54010
15474ATurbine oil outlet hose90910-05188
15474BClamp or clip (for turbine oil outlet hose)90467-26003
16265Intake manifold water hose16265-11010 · 16265-11020
16265AHose clamp or clip (for intake manifold water hose)90467-21001
16347water bypass liner16347-28010
17021Bearing shell sub-assembly17021-11020 · 17021-55010
17021AStud bolts (for bearing housing)90116-08158
17021BStud bolt90116-06048
17021CHole snap ring (for bearing housing)90521-99035
17021DBearing housing sub-assembly with compressor housing17021-79015
17025AStud bolts (for turbine housing)90116-08200
17110AVacuum hose connector90404-53042
17111Intake Manifold17101-11100 · 17101-11160 · 17101-11170 · 17101-11180 · 17101-55010
17111ANo. 1 screw plug90344-53015 · 90345-51025
17111BNo. 2 screw plug90341-22006
17111XNo. 1 sealing plug (for intake manifold)96411-42500
17111YNo. 2 sealing plug (for intake manifold)96411-42800
17113intake pipe25541-11010
17118Manifold stays17118-11080 · 17118-11090 · 17118-55010
17141exhaust manifold17141-11010 · 17141-11060 · 17141-11070 · 17141-55010
17141GStud bolts (for turbocharger)90116-10056 · 90116-10087 · 90116-10121
17149Exhaust manifold extension17149-11010
17151Studs (for manifold to carburetor)90116-08204
17152Studs (for manifold to exhaust)90116-10017 · 90116-10056 · 90116-10087
17159Studs (for manifold to cylinder head)90116-10131 · 90116-10132 · 92112-61040 · 92122-60822 · 92122-61028 · 92132-60825
17167Exhaust manifold No. 1 heat shield17107-11040 · 17107-11050 · 17167-11070 · 17167-55010
17168Exhaust manifold No.2 insulation pad17168-10010 · 17168-11020 · 17168-11030 · 17168-11031 · 17168-55010
17173Gasket (exhaust manifold to cylinder head)17173-10020 · 17173-11020 · 17173-55010
17177No. 1 gasket (intake manifold to cylinder head)17177-10010 · 17177-11010 · 17177-55010
17201Turbocharger sub-assembly17201-11020 · 17201-55010
17224compressor casing17224-11030 · 17224-55010
17224AConnector (for compressor housing)90404-51040 · 90404-51057
17229V-Belt17229-70010
17239No. 2 V-shaped clamp17239-70010
17271No. 1 turbine vibration isolation pad17271-11010 · 17271-55010
17277Compressor oil outlet gasket17277-11010
17278Gasket (turbo to exhaust manifold)17278-11020 · 17278-55010
17279Turbine outlet elbow gasket17279-11010 · 17279-55010
17291Turbine oil outlet elbow17291-55010
17294Actuator hose17294-11010 · 90445-12111
17294AClamp (for actuator hose)96132-30600
17296Bearing shell side plate17296-28010
17361AAir tube (for EFI)17361-11040 · 17361-11050
25508Manifold three-way catalytic converter sub-assembly25508-11010 · 25508-11011 · 25508-11030 · 25508-11031 · 25508-11040 · 25508-11041 · 25508-11050
25508AStud bolts (for manifold three-way catalytic converter)90116-10056 · 90116-10087
25509Manifold purifier vibration isolation pad sub-assembly25586-11010 · 25586-11030 · 25586-11050 · 25587-11010 · 25587-11030 · 25587-11050
25576Manifold three-way catalytic converter gasket25576-15010
25591Manifold bracket25591-11020
