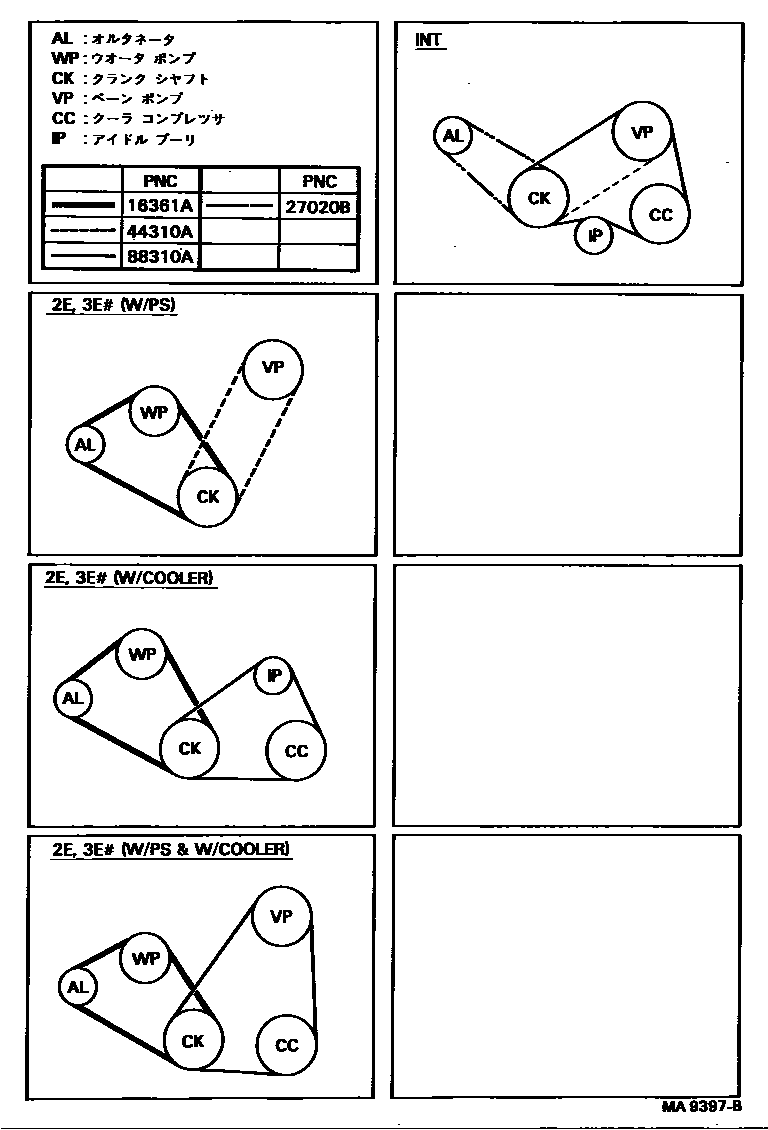

Toyota COROLLA V-Belt — Figure 1605
Toyota COROLLA EPC diagram 1605, V-Belt, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16361A | V-belts (for fans and generators) | 90916-02135 · 90916-02212 |
| 27020B | V-belt (for generator) | 90916-02154 |
| 44310A | V-belt (for vane pump) | 99365-50870 · 99365-50920 · 99365-50950 |
| 88310A | No. 1 V-belt (cooler compressor to crankshaft pulley) | 90916-02116 · 90916-02163 · 90916-02164 · 99365-00880 · 99365-00900 · 99365-01080 · 99365-50890 · 99365-50910 · 99365-51120 |
