Toyota COROLLA Oil Filter — Figure 1502

Toyota COROLLA EPC diagram 1502, Oil Filter, with 3 images and 6 PNC and OE references.

Toyota COROLLA Oil Filter EPC diagram — MA7826A
Oil Filter — MA7826A (198605 – 999999)

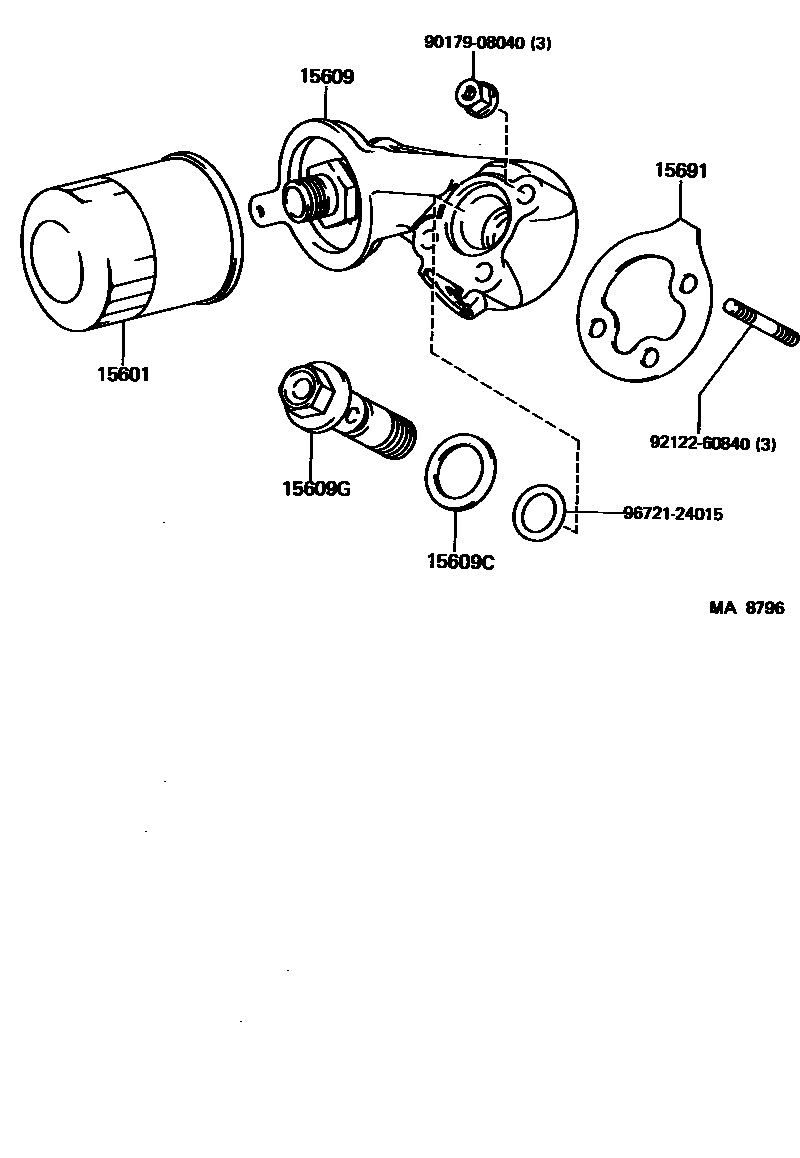

Toyota COROLLA Oil Filter EPC diagram — MA8796
Oil Filter — MA8796 (198609 – 999999)
Toyota COROLLA Oil Filter EPC diagram — MA8919
Oil Filter — MA8919 (198605 – 999999)

PNC and OE references

PNCPart nameOE numbers
15600AConnector (for oil filter)90404-19007
15601Oil filter sub-assembly15600-13051 · 15600-25010 · 90915-03001
15609Oil filter bracket sub-assembly15677-11010 · 15677-11011
15609CGasket (for oil filter holder connector)90430-24004
15609GConnector bolt (for oil filter bracket)90401-19001
15691oil filter gasket15692-11010
