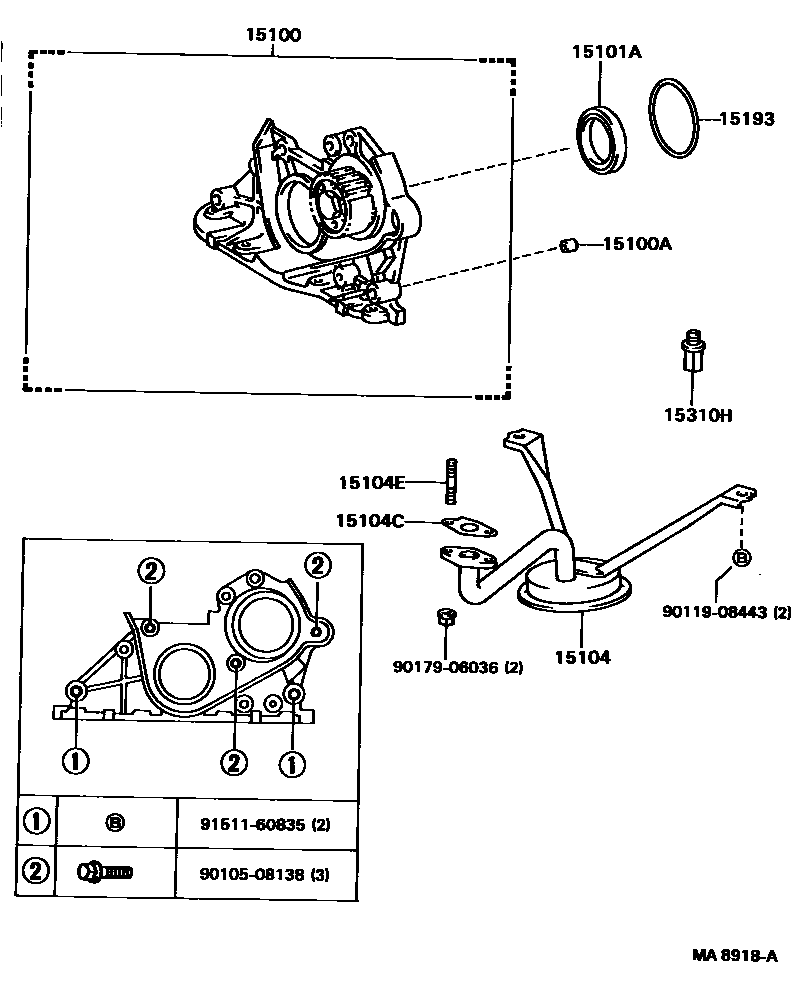

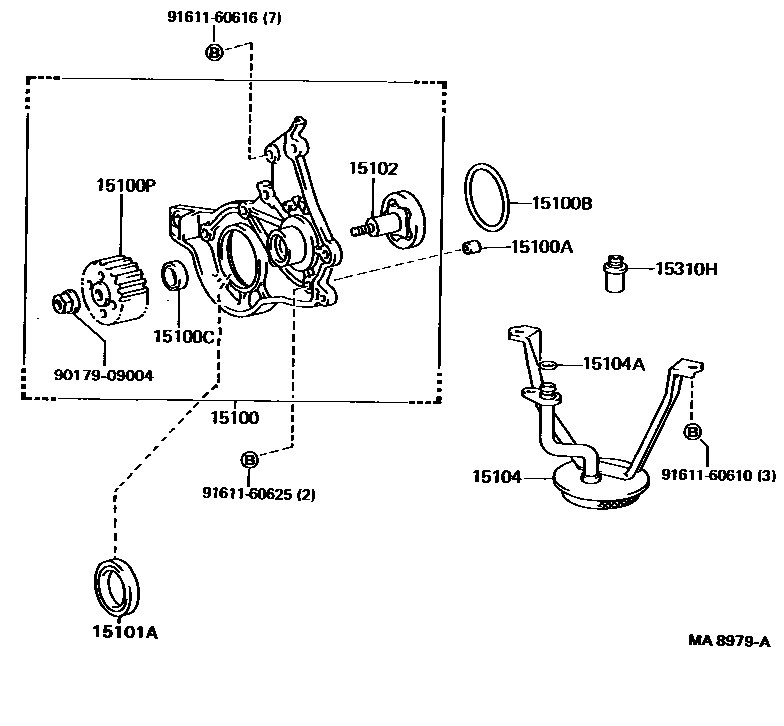

Toyota COROLLA Engine Oil Pump — Figure 1501
Toyota COROLLA EPC diagram 1501, Engine Oil Pump, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15100 | Oil pump assembly | 15100-11021 · 15100-11050 · 15100-55010 |
| 15100A | Ring pin (for oil pump assembly) | 90253-09001 · 90253-11021 |
| 15100B | O-ring (for oil pump) | 96721-24056 · 96721-24063 |
| 15100C | Seals (for oil pump) | 90029-21007 |
| 15100P | Oil pump drive shaft pulley | 13524-11010 |
| 15101A | Seals (for crankshaft) | 90311-35017 |
| 15102 | Oil pump rotor assembly | 15102-11011 · 15102-11040 |
| 15104 | Oil filter sub-assembly | 15104-10020 · 15104-11020 · 15104-55010 |
| 15104A | O-ring (for oil filter) | 96721-24015 |
| 15104C | Gasket (for oil filter) | 15149-55010 |
| 15104E | Stud bolts (for oil filter) | 90116-06032 |
| 15193 | oil pump gasket | 96721-24067 |
| 15310H | Oil regulator assembly | 15310-10010 · 15310-55010 |
