Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 4 images and 6 PNC and OE references.

Toyota COROLLA Ventilation Hose EPC diagram — MA7907
Ventilation Hose — MA7907 (198605 – 999999)
Toyota COROLLA Ventilation Hose EPC diagram — MA8914
Ventilation Hose — MA8914 (198605 – 999999)

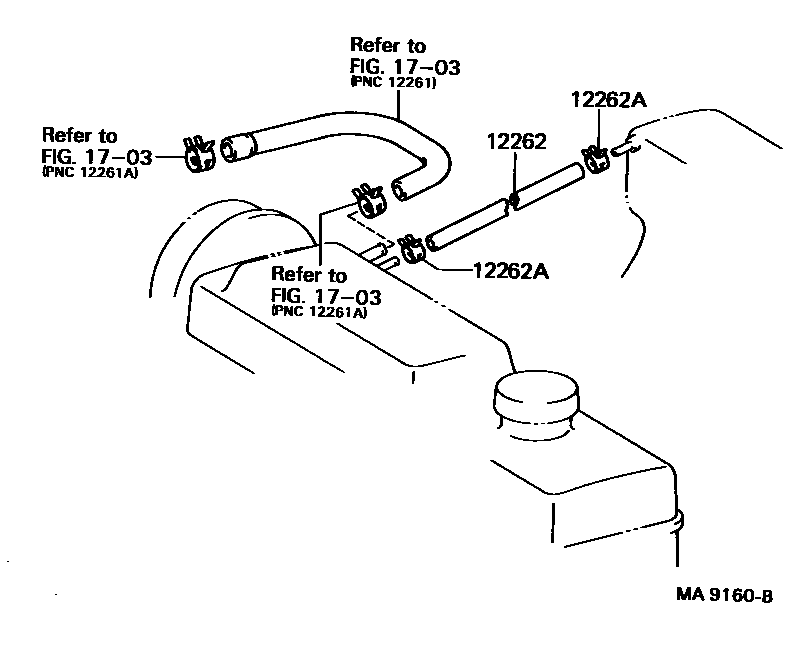

Toyota COROLLA Ventilation Hose EPC diagram — MA9160B
Ventilation Hose — MA9160B (198609 – 999999)

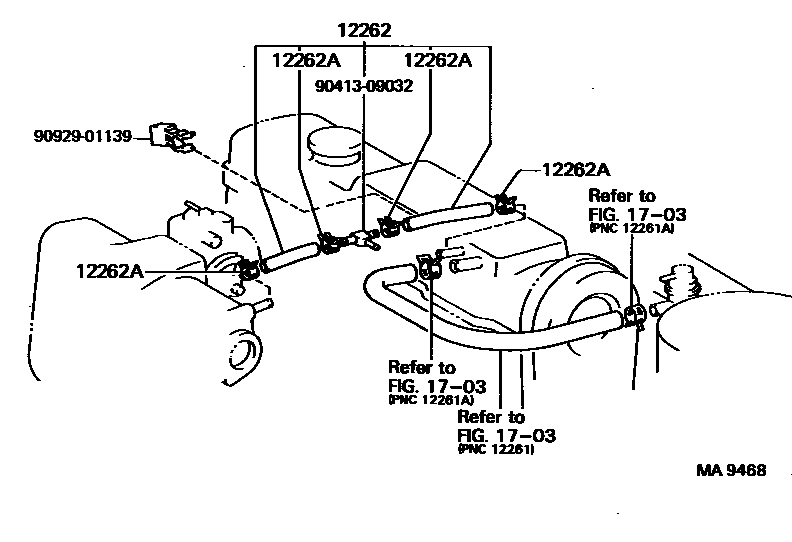

Toyota COROLLA Ventilation Hose EPC diagram — MA9468
Ventilation Hose — MA9468 (198702 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-10020 · 12204-10040
12204AGasket (for ventilation system)90480-18001
12261Ventilation Hose12261-11040 · 12261-11050 · 12261-55010
12261AClip or clip (for vent hose)90467-15120 · 90467-17006
12262Ventilation hose No. 212262-10020 · 12262-11010 · 12262-11020
12262AClamp (for vent hose No. 2)90467-13036
