Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 3 images and 2 PNC and OE references.

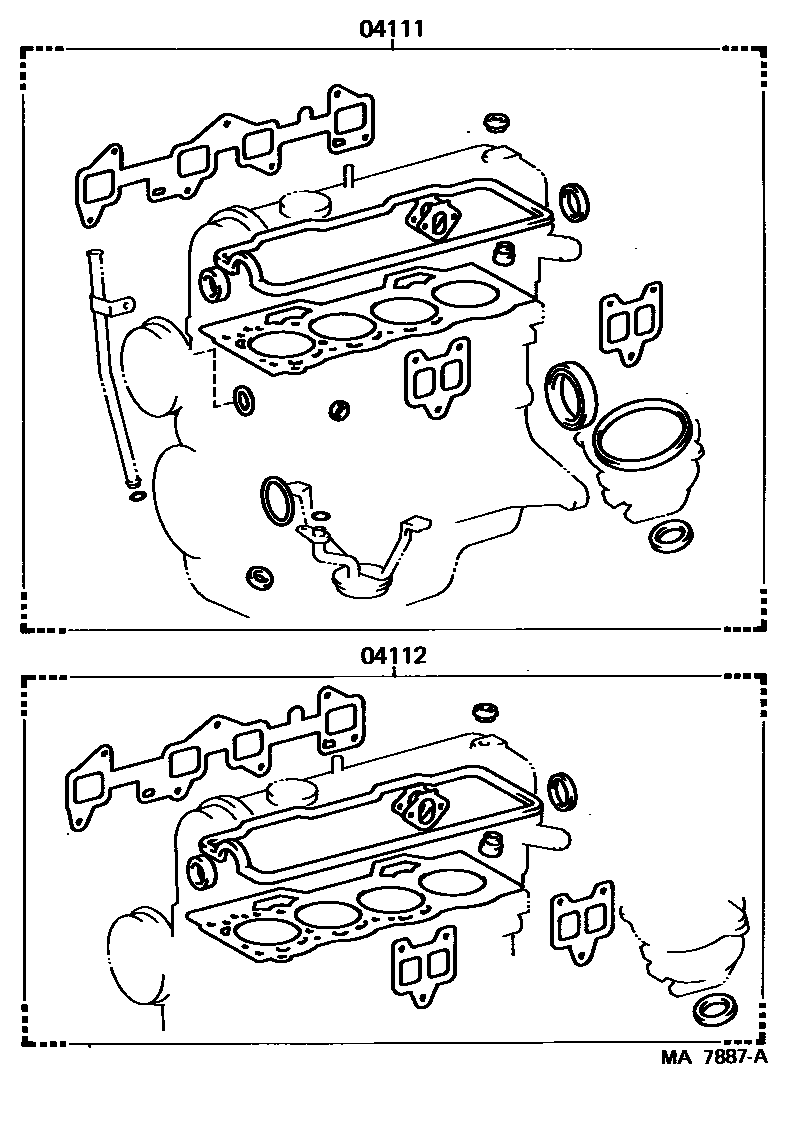

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — MA7887A
Engine Overhaul Gasket Kit — MA7887A (198605 – 999999)

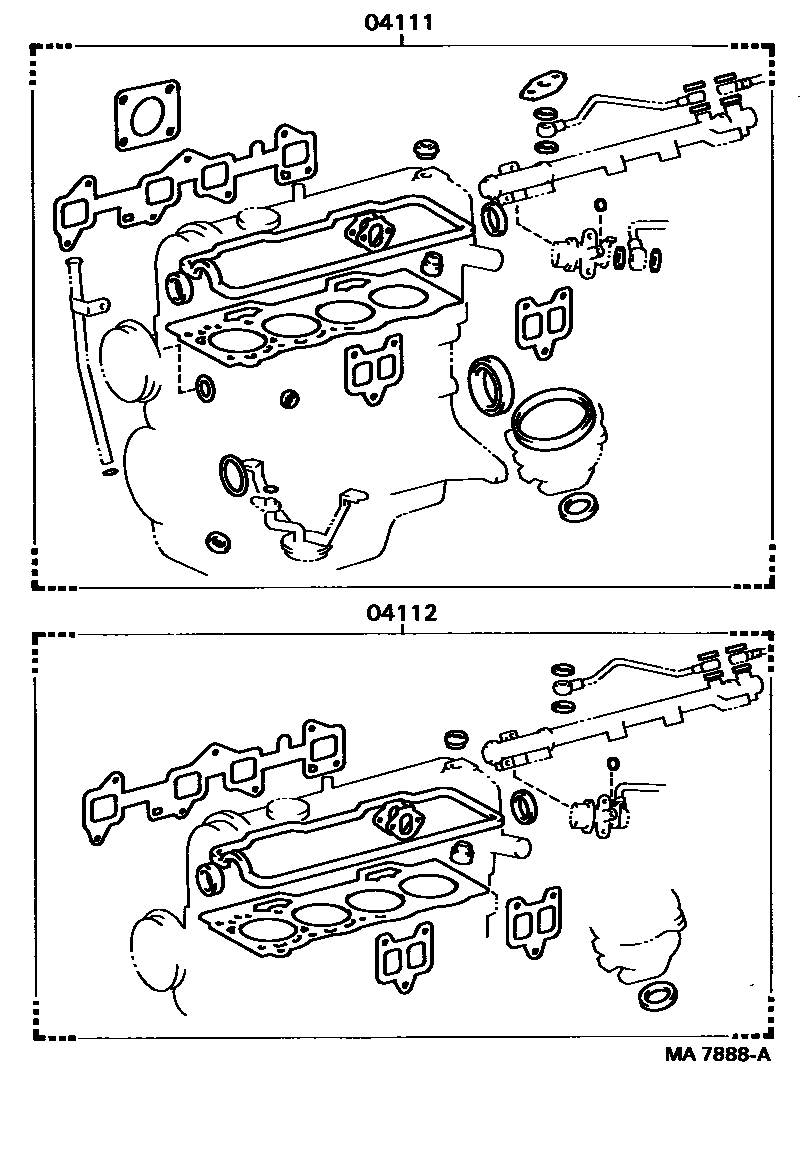

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — MA7888A
Engine Overhaul Gasket Kit — MA7888A (198609 – 999999)

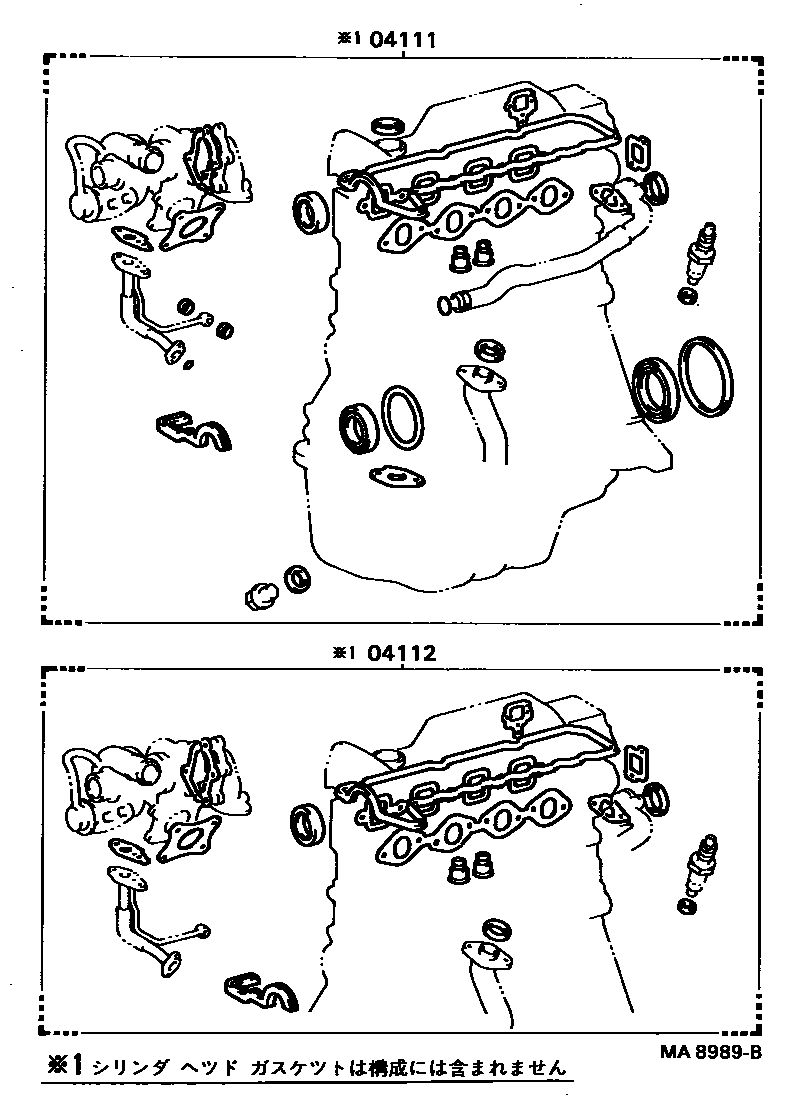

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — MA8989B
Engine Overhaul Gasket Kit — MA8989B (198605 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-11021 · 04111-11050 · 04111-11051 · 04111-11060 · 04111-55010
04112Engine valve grinding pad assembly04112-11010 · 04112-11040 · 04112-11050 · 04112-55010
