Toyota COROLLA Short Block Assembly — Figure 1102

Toyota COROLLA EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

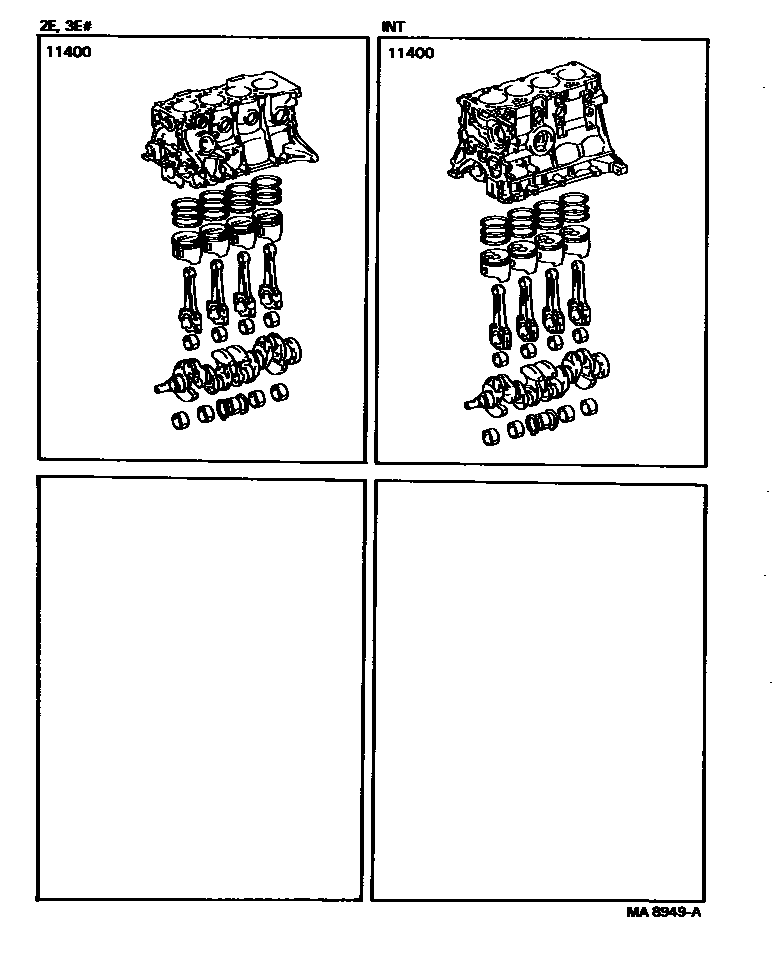

Toyota COROLLA Short Block Assembly EPC diagram — MA8949A
Short Block Assembly — MA8949A (198605 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-11011 · 11400-11021 · 11400-11060 · 11400-11070 · 11400-55010
