Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719

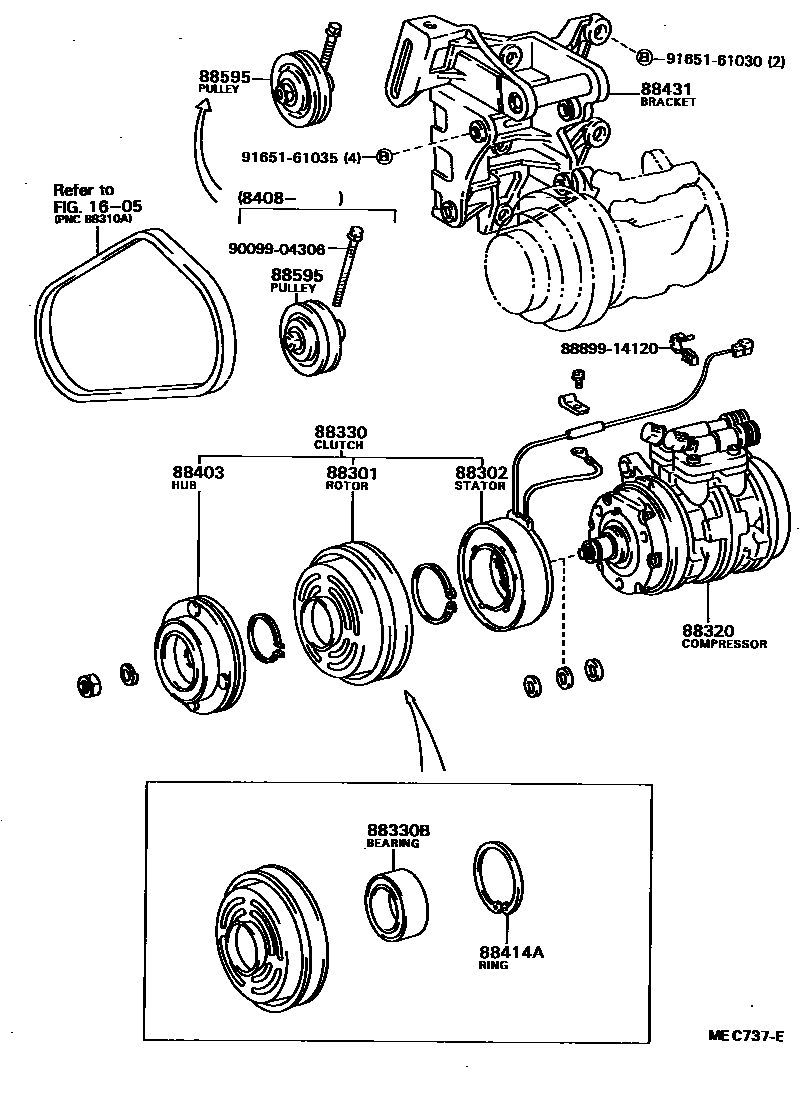

Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-14030 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-16010 |
| 88320 | Cooler Compressor Assembly | 88320-16040 |
| 88330 | Magnetic Clutch Assembly | 88410-16010 |
| 88330B | Electromagnetic clutch bearing | 90099-10135 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-14040 |
| 88414A | Guard plate snap ring | 90099-07114 |
| 88431 | Compressor No. 1 mounting bracket | 88431-16020 |
| 88437A | Compressor connections | 88437-16040 |
| 88595 | Cooler compressor idler pulley | 88440-16020 · 88440-16030 |
