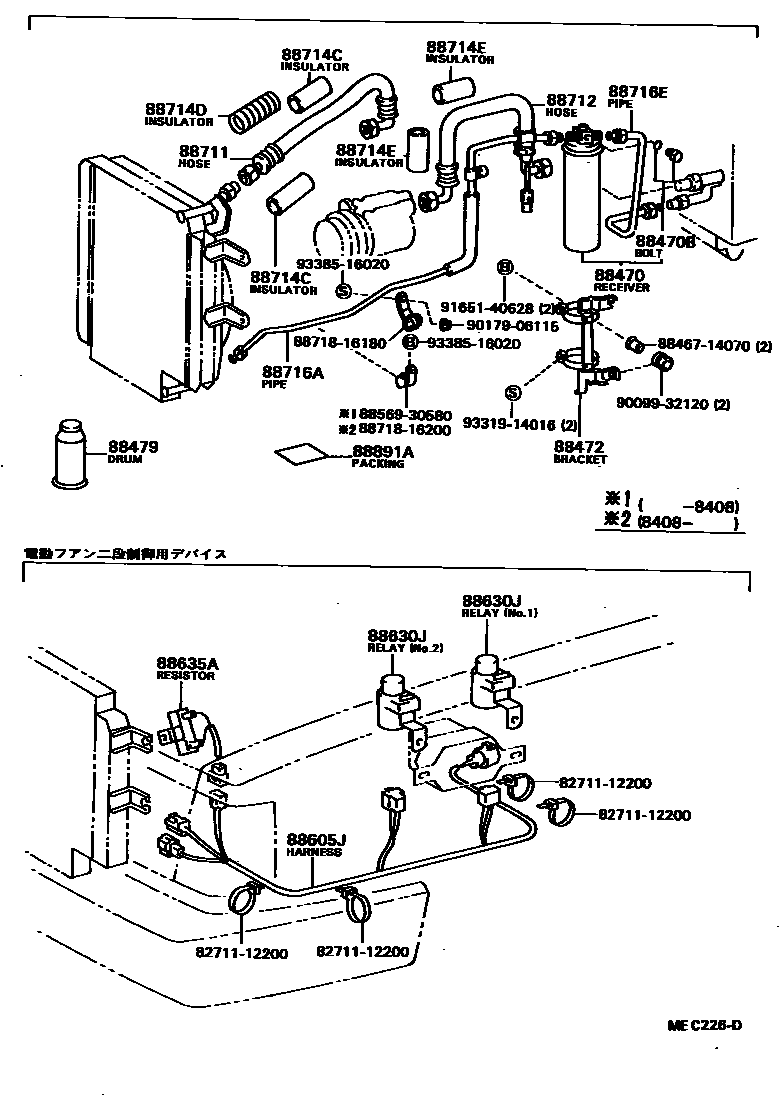

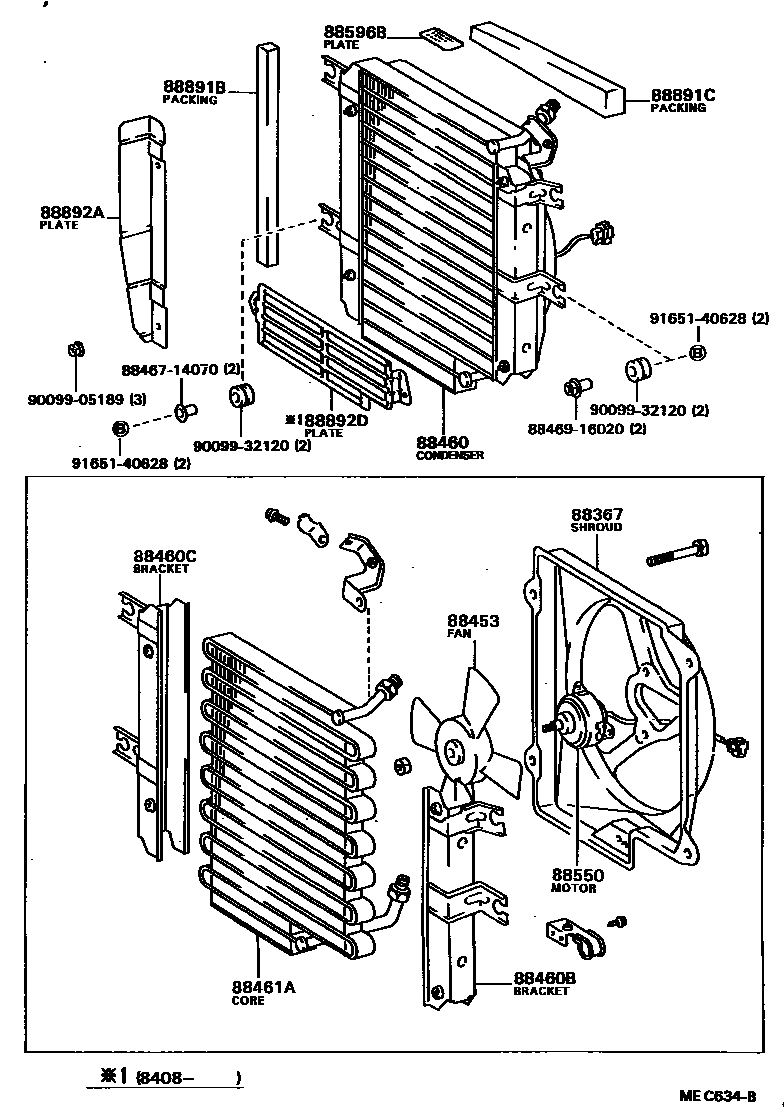

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88367 | Cooler blower fan cover | 88454-16040 · 88454-16050 |
| 88453 | Cooling fan (for condenser) | 88453-10010 · 88453-16010 |
| 88460 | Air conditioning condenser assembly | 88460-16060 · 88460-16120 |
| 88460B | No. 1 air conditioner condenser bracket | 88463-16060 · 88463-16100 |
| 88460C | No. 2 air conditioner condenser bracket | 88463-16070 · 88463-16110 |
| 88461A | Air conditioning condenser core | 88461-16040 |
| 88470 | Cooler reservoir and dryer assembly | 88470-14010 |
| 88470B | fuse bolt | 90099-04579 |
| 88472 | No. 1 liquid storage tank bracket | 88472-16040 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02001 |
| 88550 | Blower motor assembly (for condenser) | 88550-16060 · 88550-16080 |
| 88596B | No. 1 warning nameplate | 88596-14010 |
| 88605J | Air conditioning wiring harness sub-assembly | 88605-16120 |
| 88630J | Relay assembly (for condenser motor) | 88630-10020 · 88630-16020 |
| 88635A | Blower resistor (for air conditioner condenser motor) | 88635-16020 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-16030 · 88711-16040 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-16050 · 88712-16080 |
| 88714C | Cooler No. 1 refrigerant hose insulation pad | 88714-87004 · 88714-90A01 |
| 88714D | Cooler No. 2 refrigerant hose insulation pad | 88714-16020 |
| 88714E | Cooler No. 3 refrigerant hose insulation pad | 88714-90A01 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-16210 · 88716-16240 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-16200 |
| 88891A | Seal A (for cooler) | 88578-16050 |
| 88891B | Seal B (for cooler) | 88892-16080 |
| 88891C | Seal C (for cooler) | 88892-16090 |
| 88892A | Cooler evaporator mounting bracket | 88892-16040 · 88892-16120 |
| 88892D | No. 2 condenser plate | 88892-16050 |
