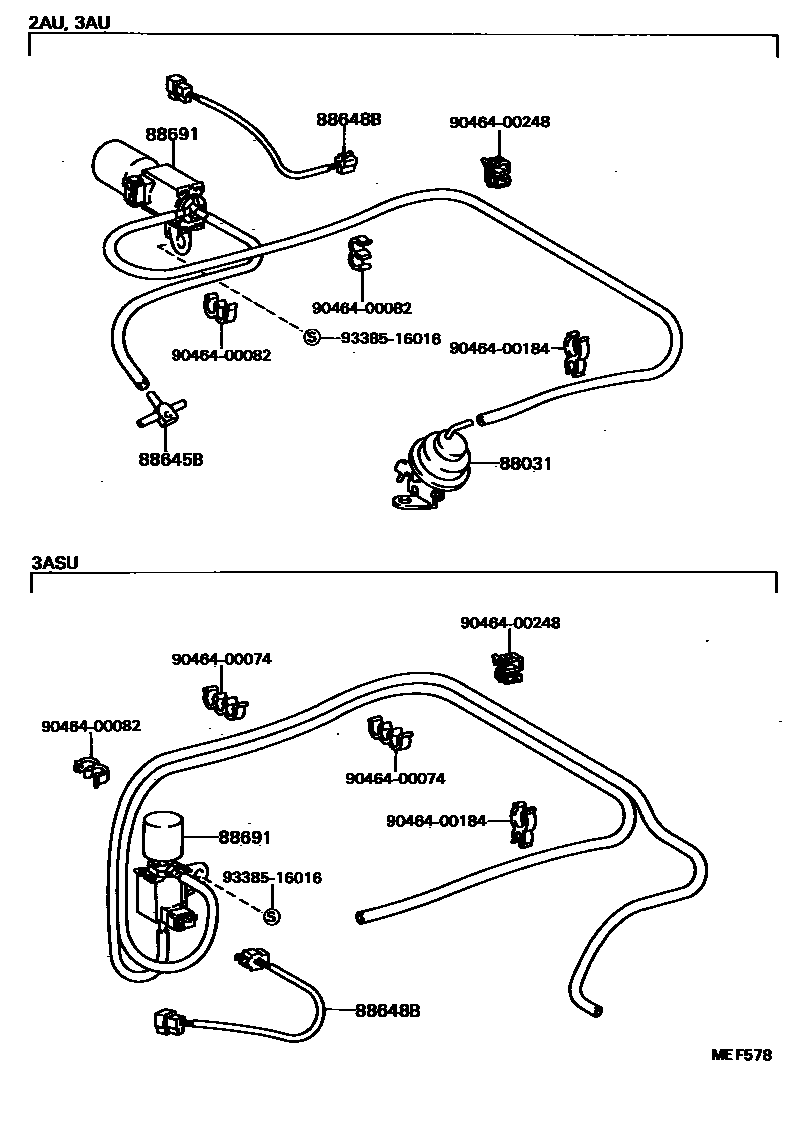

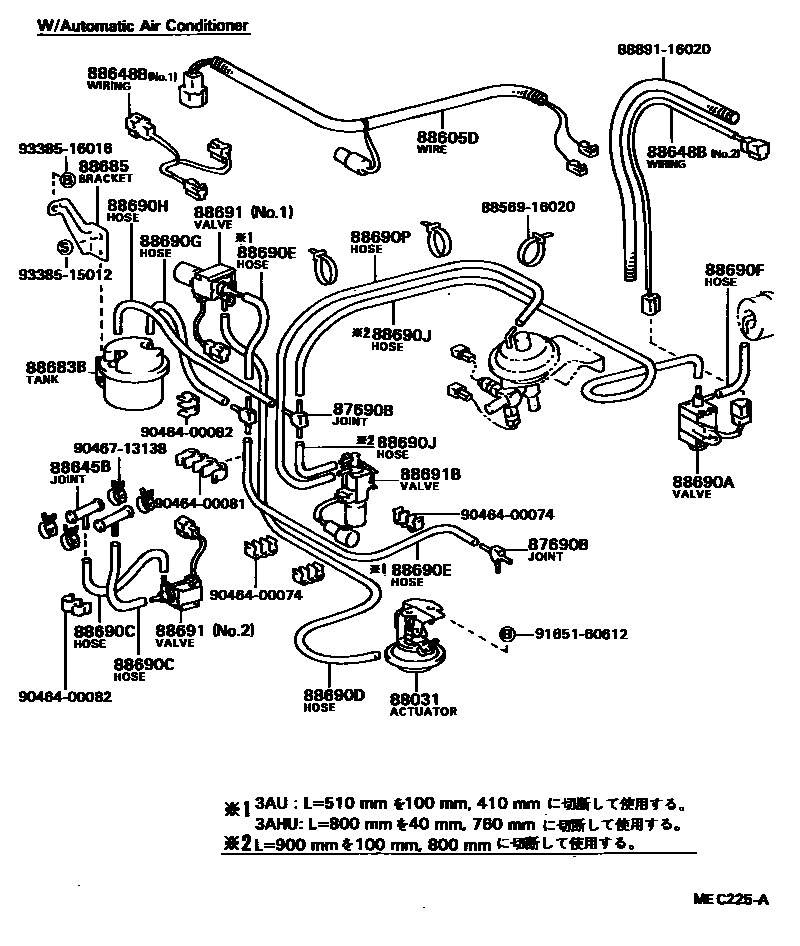

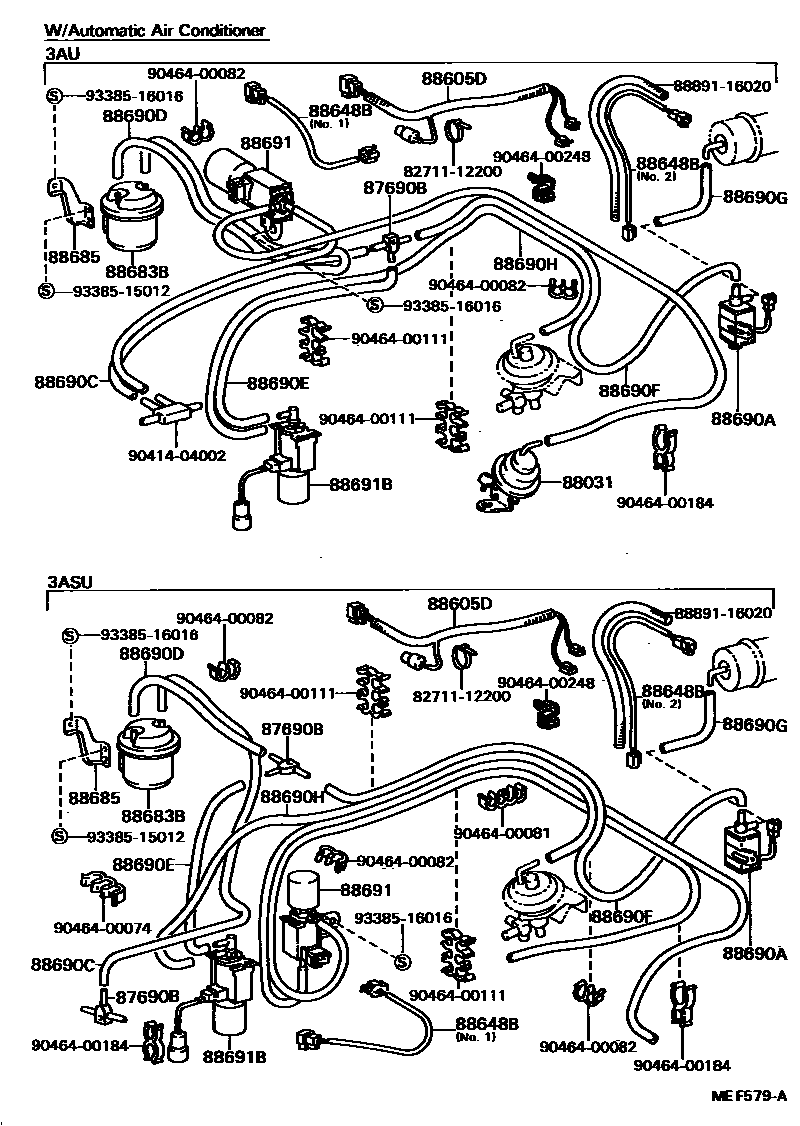

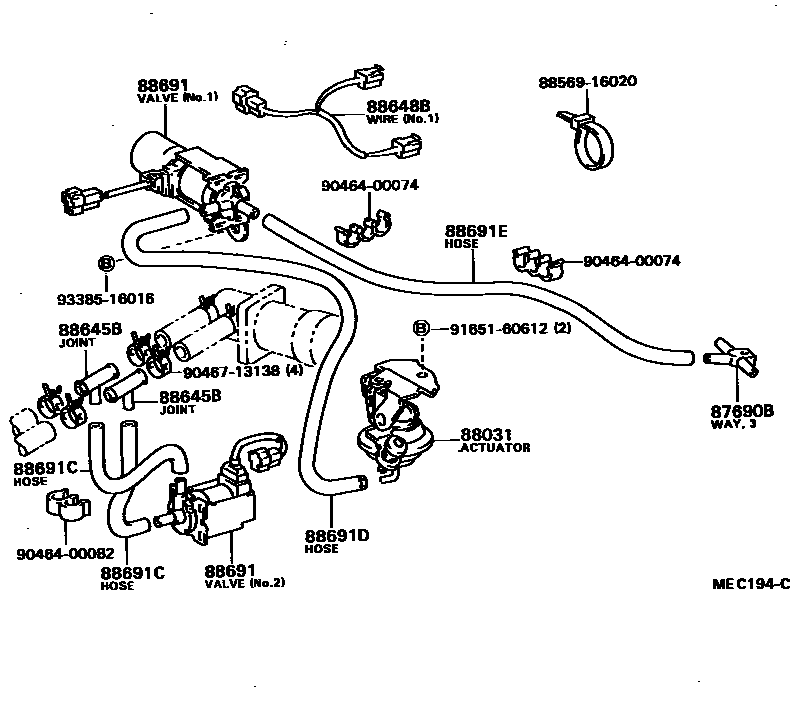

Toyota COROLLA 暖风和空调系统 - 真空管 — Figure 8717
Toyota COROLLA EPC diagram 8717, 暖风和空调系统 - 真空管, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87690B | tee pipe | 90413-04005 |
| 88031 | Idle speed lift actuator assembly | 88031-16020 · 88031-16040 · 88031-16050 · 88031-16051 |
| 88605D | Air conditioning wiring harness | 88605-16080 · 88605-16190 |
| 88645B | Connector No. 1 (for idle speed lifting device) | 88894-16020 · 90413-04005 |
| 88648B | No. 1 cooler wiring harness | 88648-16080 · 88648-16090 · 88648-16110 |
| 88683B | vacuum tank | 88683-16010 |
| 88685 | Air conditioning control vacuum tank bracket | 88688-16030 |
| 88690A | Composite valve assembly | 88690-16050 |
| 88690F | No. 4 vacuum hose (for heater or air conditioner) | 95411-10295 |
| 88690G | No. 5 vacuum hose (for heater or air conditioner) | 95411-10130 · 95411-10430 |
| 88690H | No. 6 vacuum hose (for heater or air conditioner) | 95411-10395 |
| 88690J | No. 7 vacuum hose (for heater or air conditioner) | 95411-10295 |
| 88690P | No. 8 vacuum hose (for heater or air conditioner) | 95411-10360 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88690-12161 · 88690-16100 · 88690-16120 · 88691-12040 · 88691-87101 |
| 88691B | Solenoid valve (for water valve) | 88691-16010 |
| 88691E | No. 3 vacuum hose (for idle lift device) | 95411-10095 |
