Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

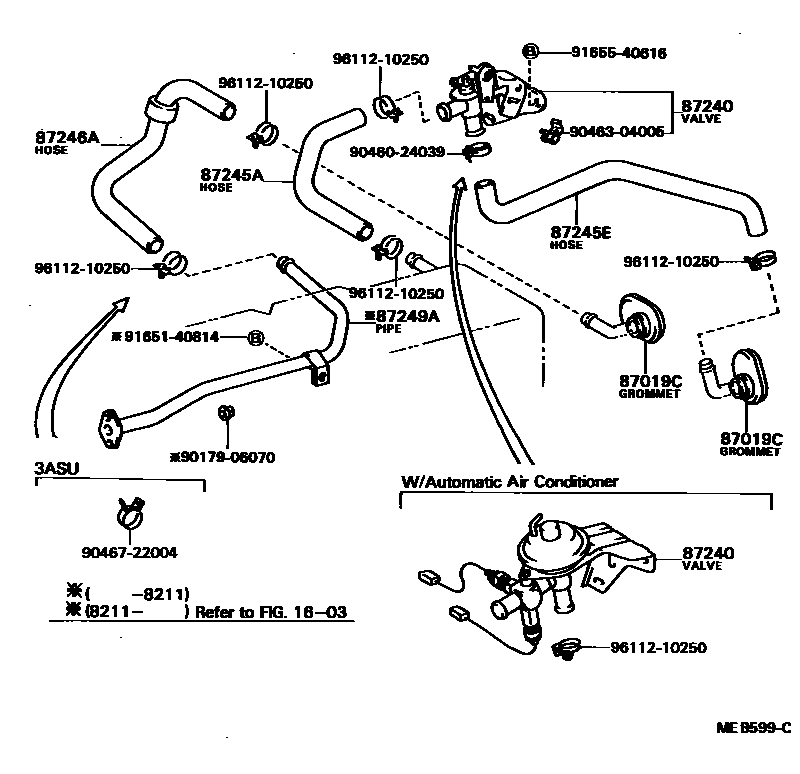

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87019C | heater hose seal | 90480-01015 |
| 87240 | Heater water valve assembly | 87240-16030 · 88670-16020 · 88670-16040 |
| 87245A | Heater water inlet hose A | 87245-16090 · 87245-16160 |
| 87245E | Heater water inlet hose E | 87245-16080 · 87245-16180 |
| 87246A | Heater outlet hose A | 87245-16100 · 87245-16170 · 87245-16190 |
| 87249A | Heater outlet pipe A | 87208-16011 |
