Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

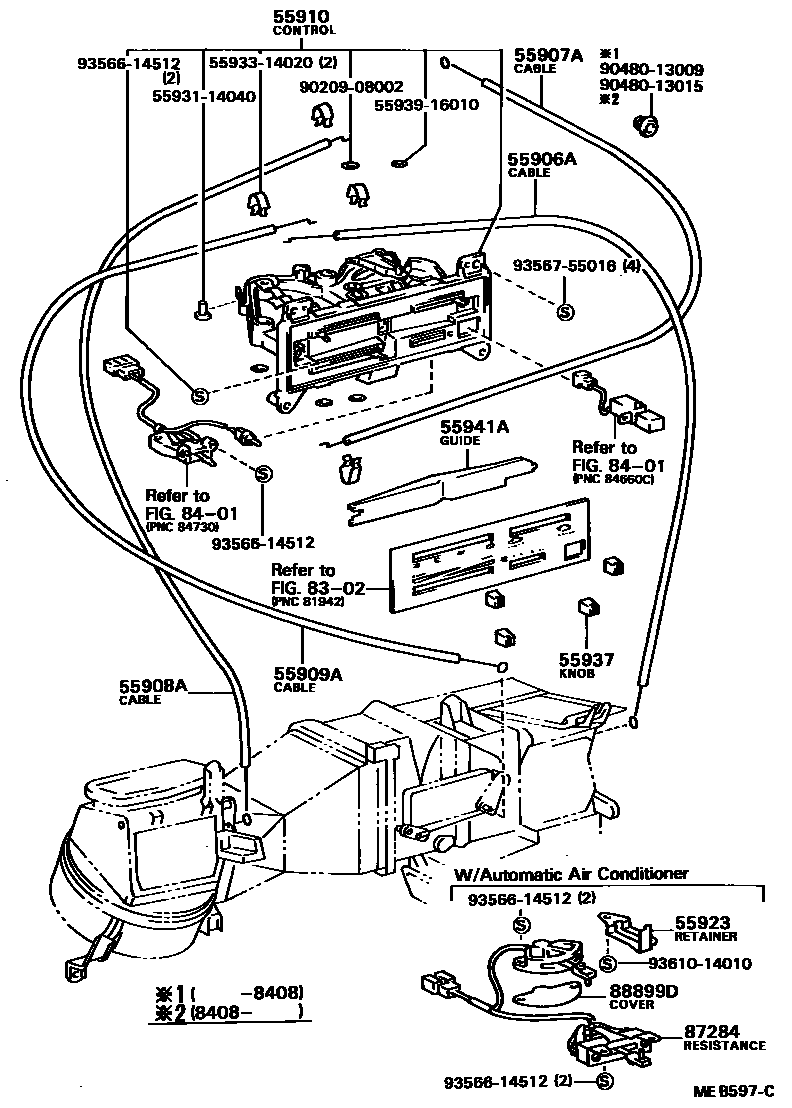

| 55906A | Defroster damper control cable sub-assembly | 55906-16030 |
| 55907A | Water valve control cable sub-assembly | 55907-16060 |
| 55908A | Intake air valve control cable sub-assembly | 55908-16030 |
| 55909A | Air mix damper control cable sub-assembly | 55909-16020 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-16040 · 55910-16041 |
| 55923 | Heater controller upper fixing piece | 55923-16020 |
| 55937 | Heater lever button | 55905-10110 · 55905-10120 · 55905-12060 · 55905-16010 · 55905-89110 |
| 55941A | heater control guide | 55941-16020 |

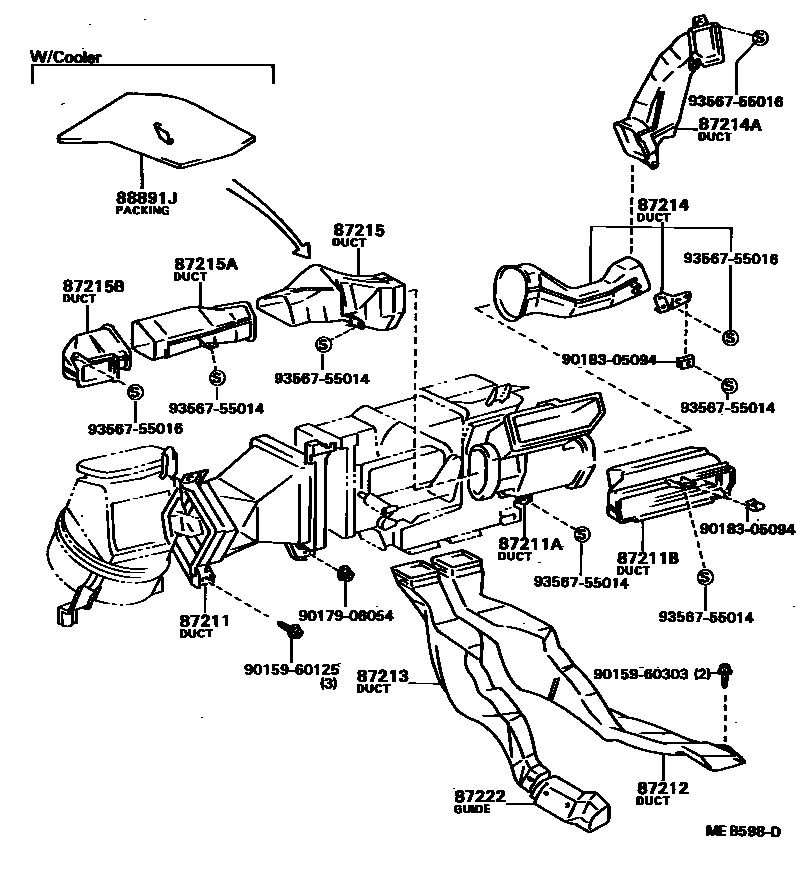

| 87211 | No. 1 air duct | 87201-16040 |
| 87211A | Duct No. 2 | 87201-16030 |
| 87211B | No. 3 air duct | 55086-16030 · 55086-16031 |
| 87212 | No. 1 rear air duct | 87202-16030 |
| 87213 | No. 2 rear air duct | 87203-16030 |
| 87214 | Air duct No. 1 on the right | 55085-16020 |
| 87214A | Air duct No. 2 on the right | 55084-16010 · 55084-16011 |
| 87215 | Air duct No. 1 on the left | 55087-16030 |
| 87215A | Air duct No. 2 on the left | 55088-16010 |
| 87215B | Air duct No. 3 on the left | 55089-16010 · 55089-16011 |
| 87222 | Rear air duct deflector | 87216-16010 |
| 87284 | Variable resistor sub-assembly | 88032-16030 |

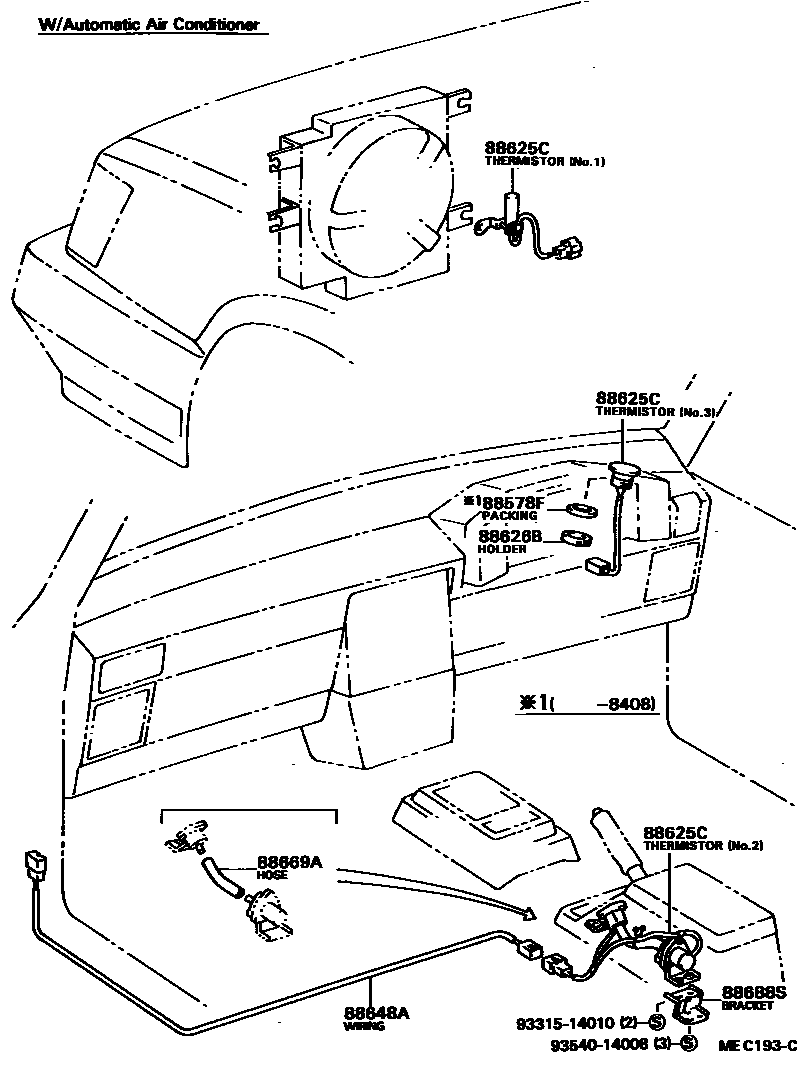

| 88578F | Seal (for thermistor) | 88578-16040 |
| 88625C | Cooler thermistor | 88625-16040 · 88625-16050 · 88790-16010 |
| 88626B | Thermistor mount | 88626-24010 |
| 88648A | Cooler wiring harness | 88648-16100 |
| 88669A | Hoses (for cooler thermistor) | 88669-16020 |
| 88688S | Bracket (for cooler thermistor) | 88688-16050 · 88688-16060 |
| 88891J | Seals | 88892-16110 |
| 88899D | Cooler control unit cover | 88894-16030 |
