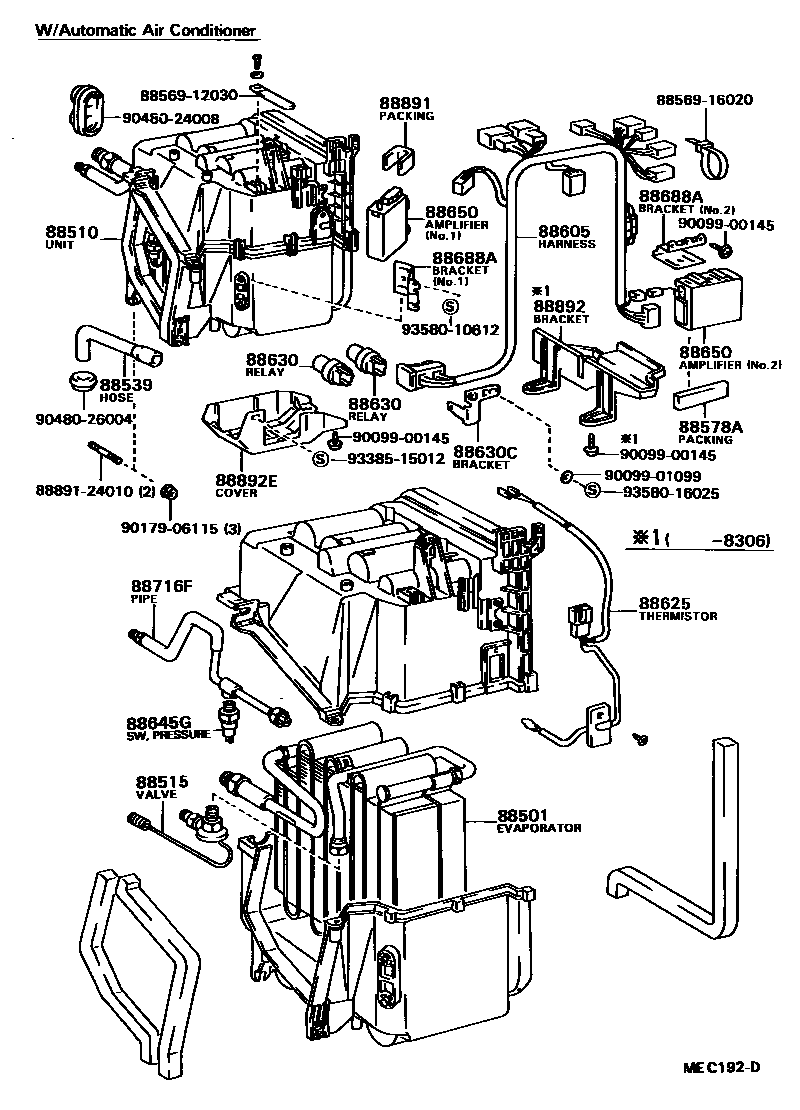

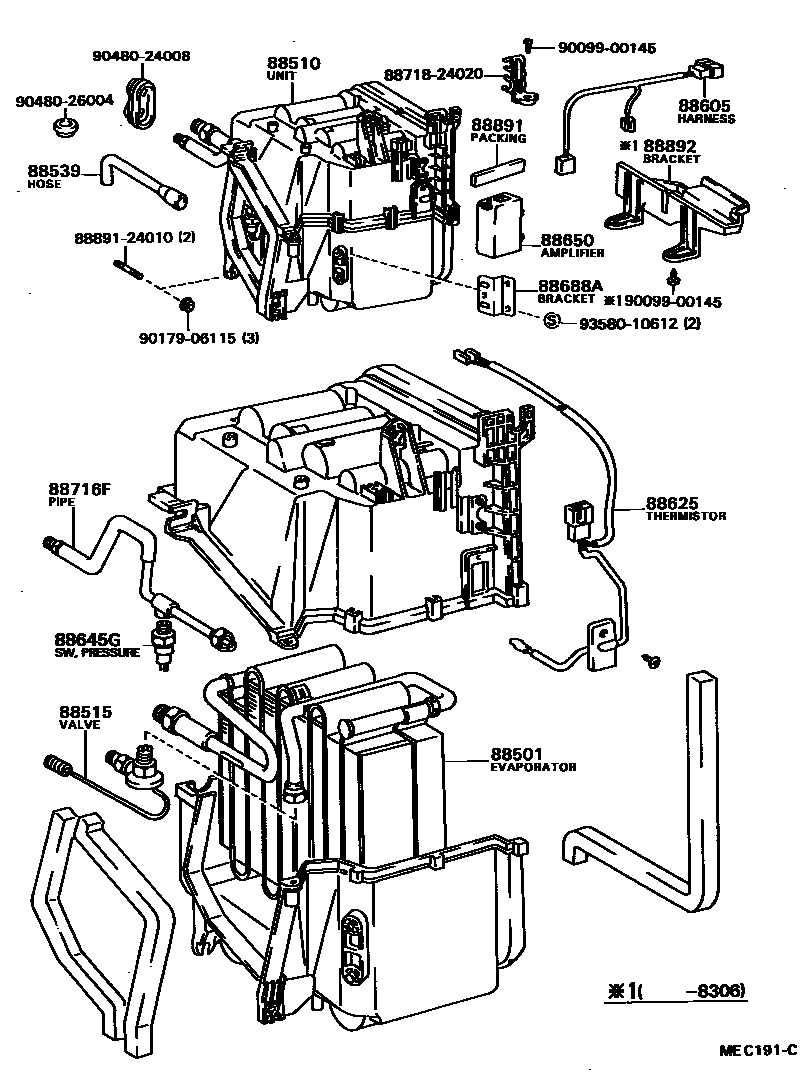

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-12310 · 88501-16060 |
| 88510 | Cooler device assembly | 88510-16080 |
| 88515 | Cooler expansion valve | 88515-16030 · 88515-16031 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-16020 |
| 88578A | Cooler stabilized amplifier seal | 88578-14050 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-16110 · 88605-16130 · 88605-16140 |
| 88625 | Cooler No. 1 Thermistor | 88625-12200 · 88625-16060 |
| 88630 | Cooler relay assembly | 90987-03001 |
| 88630C | Cooler relay bracket | 88688-16100 |
| 88645G | pressure switch | 88645-10020 · 88645-12020 |
| 88650 | Cooler stabilized amplifier assembly | 88650-14170 · 88650-16030 · 88650-16050 · 88650-16070 · 88650-16080 · 88650-16120 · 88650-16130 |
| 88688A | Cooler stabilized amplifier stand | 88688-16020 · 88688-16070 |
| 88716F | Cooler refrigerant liquid pipe F | 88716-16160 |
| 88891 | Seals (for coolers) | 88892-16100 |
| 88892 | Cooler evaporator mounting bracket | 88892-16060 |
| 88892E | relay cover | 88891-16010 |
