Toyota COROLLA 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712

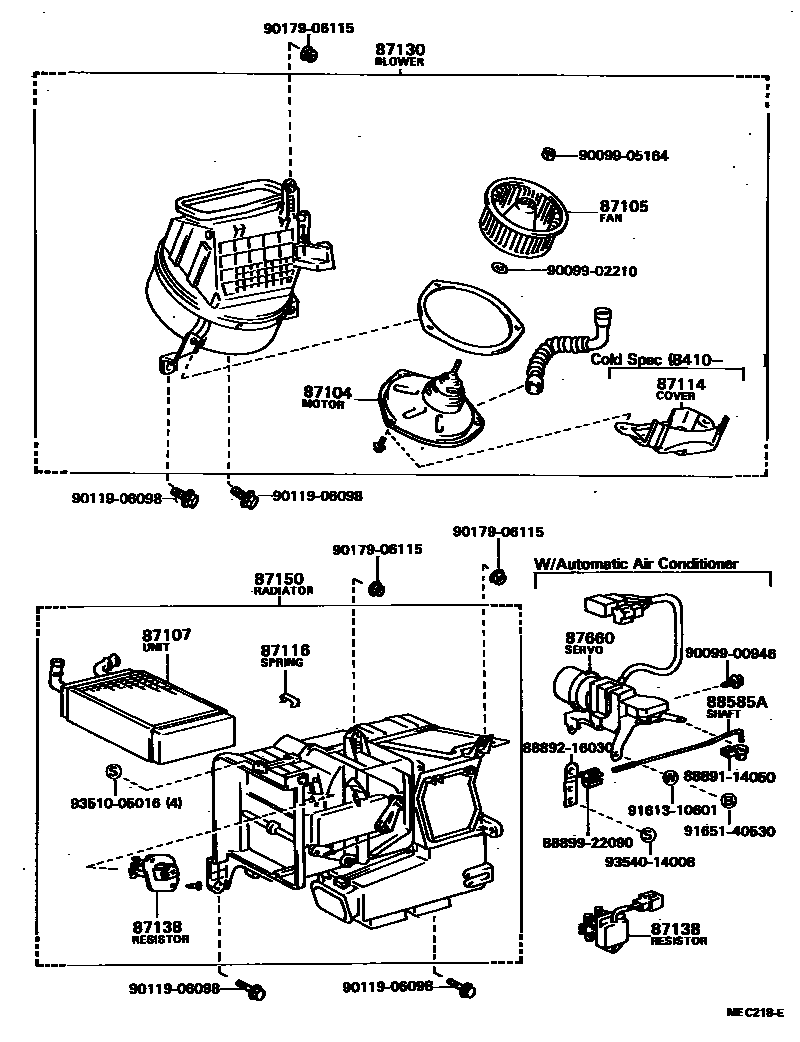

Toyota COROLLA EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87104 | Heater blower motor sub-assembly | 87104-16100 |
| 87105 | Heater blower fan sub-assembly | 87105-14030 |
| 87107 | Heater radiator device sub-assembly | 87107-16060 · 87107-16070 · 87107-16100 · 87107-16110 |
| 87114 | heater cover | 87137-16010 |
| 87116 | Heater shell fastening spring | 87116-14010 |
| 87130 | Front heater blower assembly | 87130-16030 · 87130-16080 |
| 87138 | Heater Blower Resistor | 87138-16090 · 88635-16010 · 88635-16011 |
| 87150 | Heater radiator assembly | 87150-16070 · 87150-16080 · 87150-16120 · 87150-16130 |
| 87660 | Air conditioning servo mechanism assembly | 88660-16010 |
| 88585A | Heater choke shaft | 88585-16010 |
