Toyota COROLLA 暖风和空调系统 - 组件 — Figure 8711
Toyota COROLLA EPC diagram 8711, 暖风和空调系统 - 组件, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

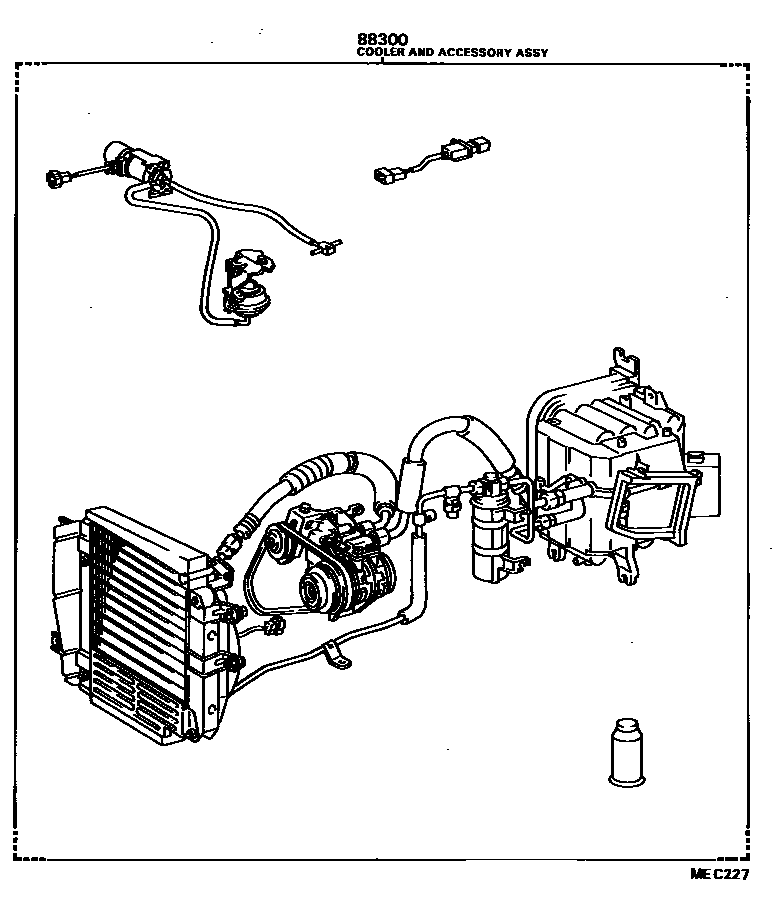

| 88300 | Air conditioning and accessories assembly | 88300-16100 · 88300-16120 · 88300-16130 · 88300-16230 · 88300-16240 · 88300-16300 |

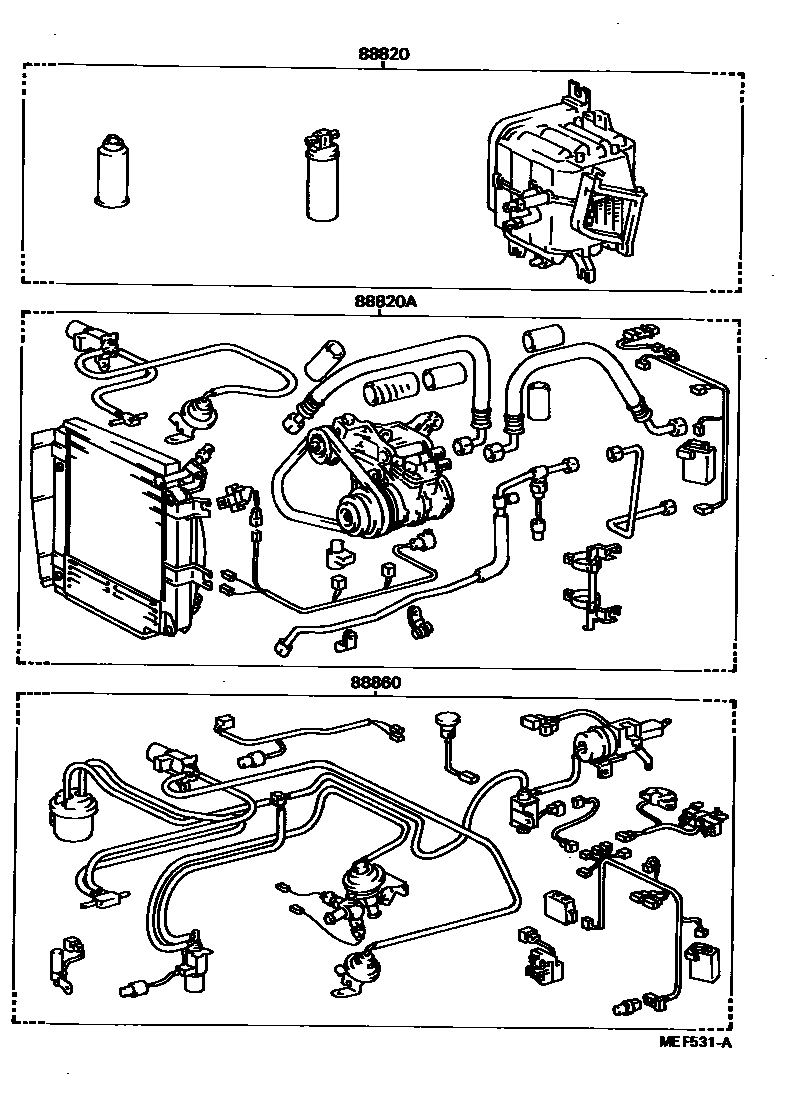

| 88820 | No. 1 air conditioner and accessories sub-assembly | 88820-12010 · 88820-12011 |
| 88820A | No. 2 air conditioner and accessories sub-assembly | 88830-16030 · 88830-16040 |
| 88860 | Automatic air conditioning accessory assembly | 88860-16010 · 88860-16011 |
