Toyota COROLLA 后视镜 — Figure 8701

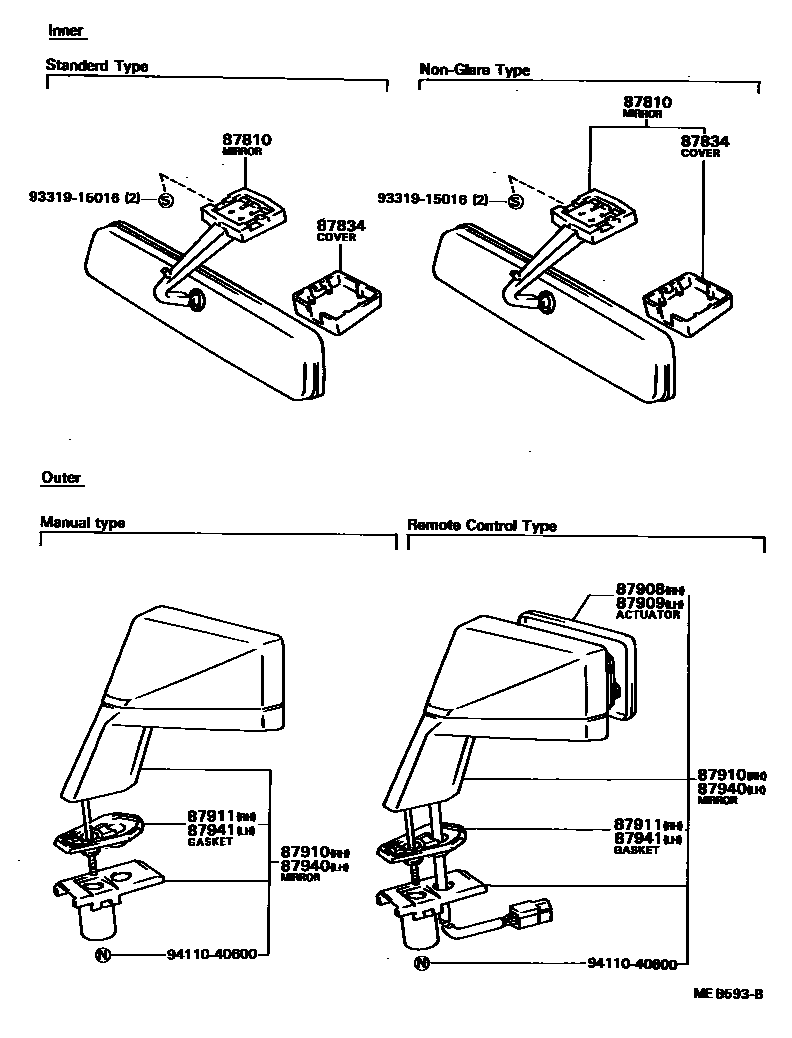

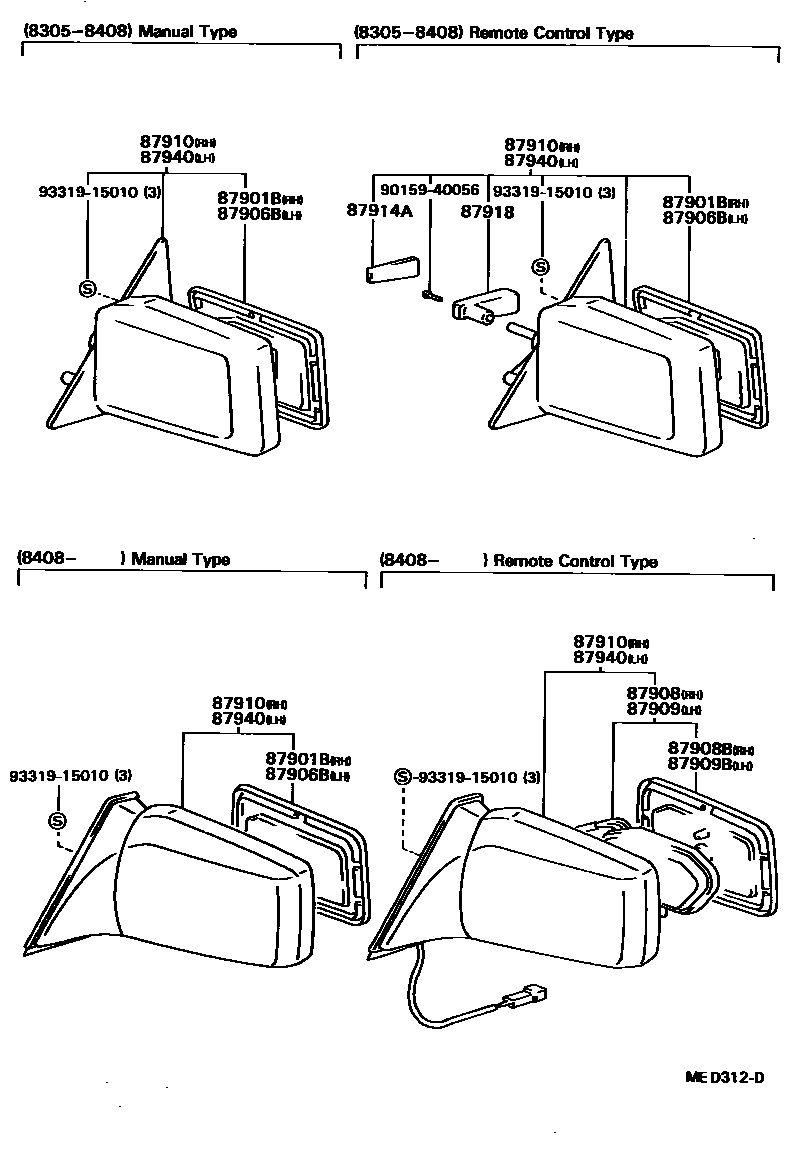

Toyota COROLLA EPC diagram 8701, 后视镜, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87901B | Right exterior rearview mirror sub-assembly | 87908-16030 · 87908-20040 |
| 87906B | Left exterior rearview mirror sub-assembly | 87909-14060 · 87909-20040 |
| 87908 | Right exterior rearview mirror actuator assembly | 87908-12100 · 87908-32010 |
| 87908B | Right rearview mirror sub-assembly | 87931-20540 |
| 87909 | Left exterior rearview mirror actuator assembly | 87909-12090 · 87909-32010 |
| 87909B | Left rearview mirror sub-assembly | 87961-20580 |
| 87910 | Right exterior rearview mirror assembly | 87910-16231 · 87910-16241 · 87910-16251 · 87910-16261 · 87910-80008 · 87910-80060 · 87910-80061 · 87910-80062 · 87910-80063 · 87910-80107 |
| 87911 | Right exterior mirror pad | 87911-16070 · 87911-16080 |
| 87914A | Exterior rearview mirror button cover | 87914-16010 |
| 87918 | Exterior rearview mirror control handle | 87918-14040 |
| 87940 | Left exterior rearview mirror assembly | 87940-16261 · 87940-16271 · 87940-16281 · 87940-16291 · 87940-80008 · 87940-80061 · 87940-80062 · 87940-80063 · 87940-80064 · 87940-80107 |
| 87941 | Left exterior mirror pad | 87941-16070 · 87941-16080 |
