Toyota COROLLA 扬声器 — Figure 8602

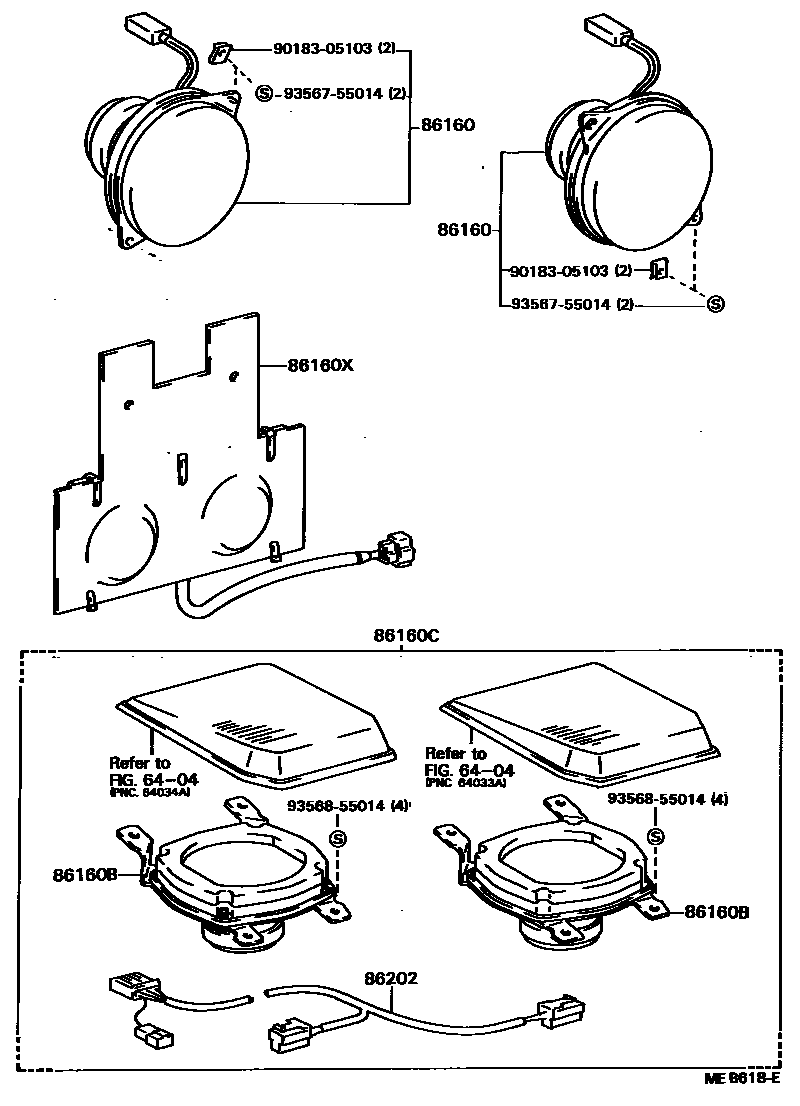

Toyota COROLLA EPC diagram 8602, 扬声器, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-16090 · 86160-19565 · 86160-39075 · 86160-39085 |
| 86160B | Rear speaker assembly | 86160-16040 · 86160-16041 |
| 86160C | rear speaker assembly | 86160-19525 · 86160-19815 · 86160-19825 |
| 86160X | Car body sound wave converter | 86160-16110 |
| 86202 | No. 1 speaker harness | 86203-12150 |
