Toyota COROLLA 后清洗器 — Figure 8504

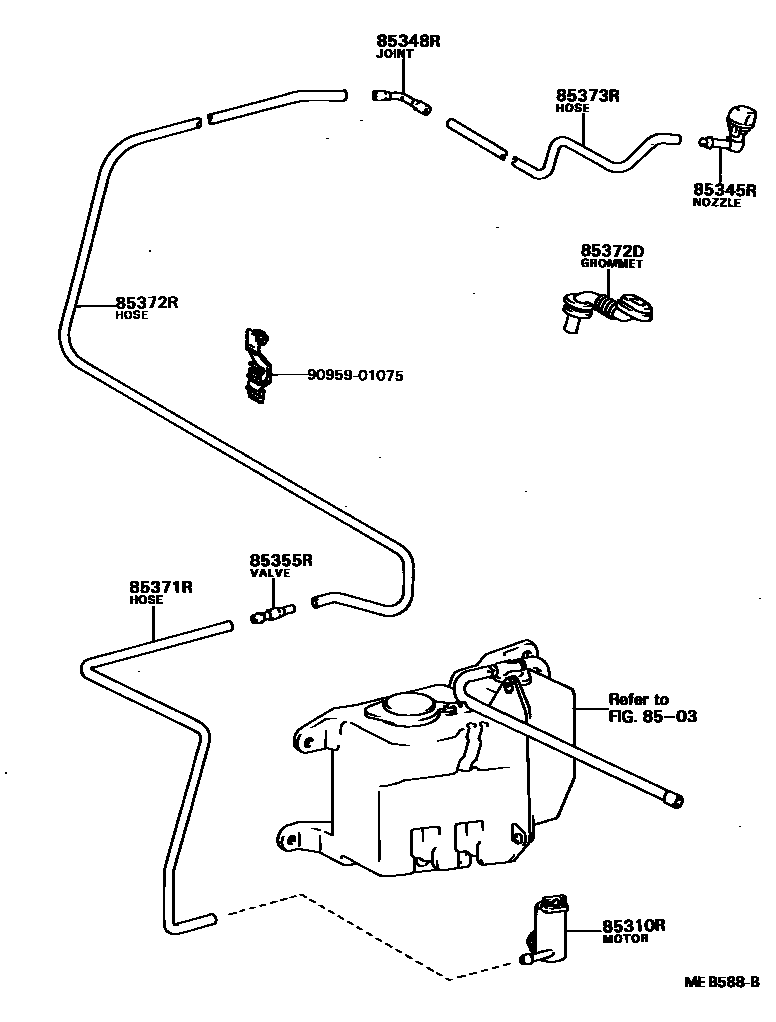

Toyota COROLLA EPC diagram 8504, 后清洗器, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85310R | Rear washer motor assembly | 85310-16030 · 85310-22080 |
| 85345R | Rear washer nozzle | 85035-16040 · 85341-16080 |
| 85348R | No. 1 rear washer hose connector | 85355-20080 |
| 85355R | Rear washer hose valve | 85031-14080 |
| 85371R | Rear washer hose (from motor to connector) | 90446-06013 |
| 85372D | Rear washer hose seal | 85372-14020 |
| 85372R | Rear washer hose (from fitting to fitting or nozzle) | 90099-33053 · 90099-33391 |
