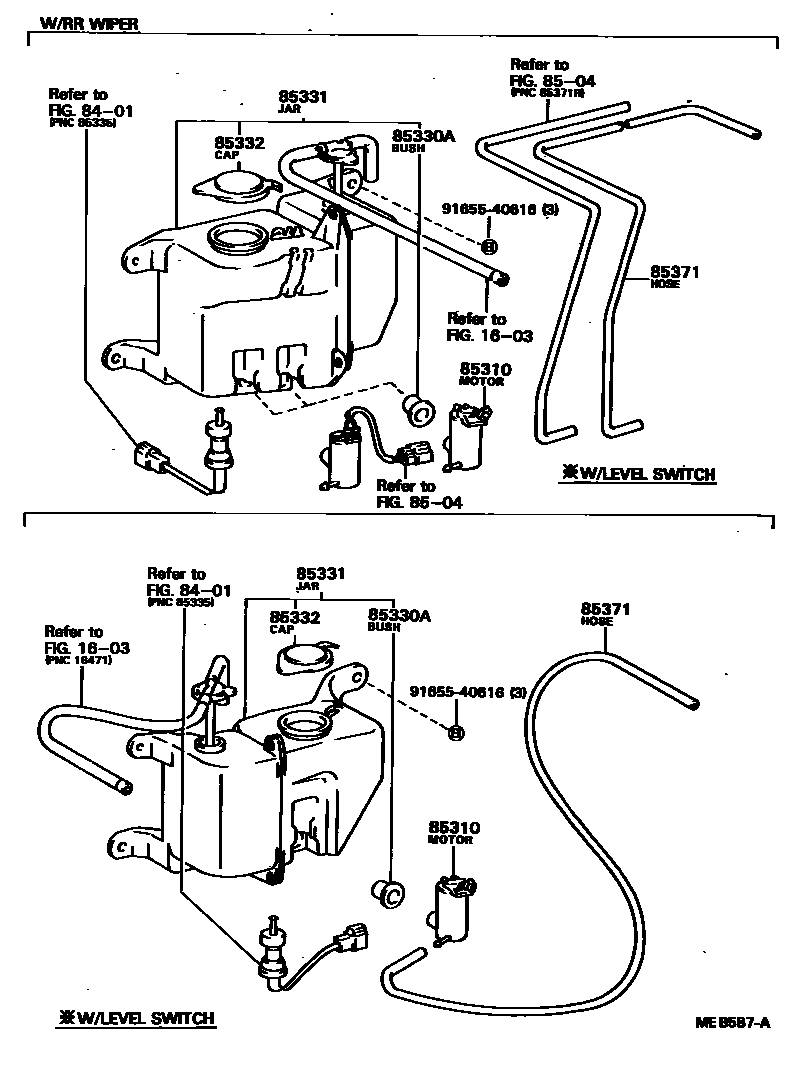

Toyota COROLLA 挡风玻璃清洗器 — Figure 8503
Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85310 | Windshield washer motor and pump assembly | 85310-22080 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85331 | Windshield washer fluid tank sub-assembly | 85330-16100 · 85330-16130 · 85331-16020 · 85331-16151 · 85331-16161 · 85331-16220 |
| 85332 | Windshield washer fluid tank cap | 85332-12320 · 85332-16010 |
| 85345 | windshield washer nozzle | 85341-16050 |
| 85348 | Windshield washer hose connector No. 1 | 85355-14010 |
