Toyota COROLLA 后刮水器 — Figure 8502

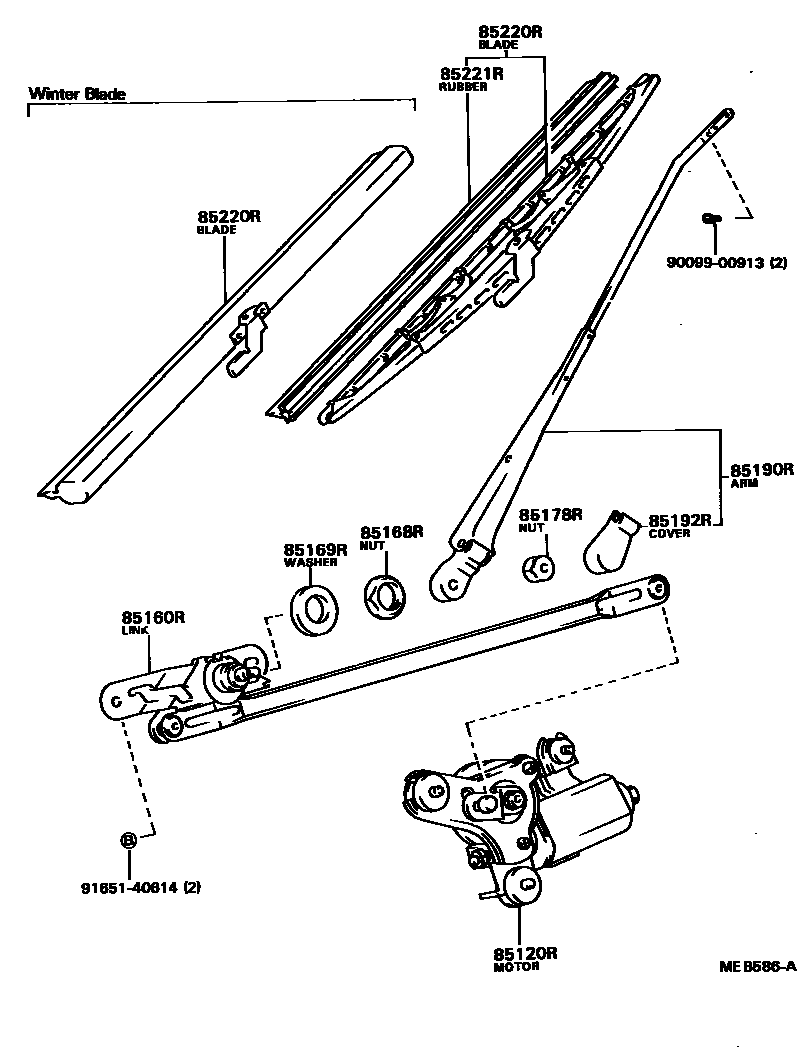

Toyota COROLLA EPC diagram 8502, 后刮水器, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85120R | Rear wiper motor and bracket assembly | 85120-16140 |
| 85160R | Rear wiper connecting rod assembly | 85160-16150 |
| 85168R | No. 1 rear wiper link pivot nut | 90099-05157 |
| 85169R | No. 1 rear wiper link pivot washer | 85179-16150 |
| 85178R | Nut (for securing rear wiper arm) | 90179-06070 · 90179-06158 |
| 85190R | Rear wiper arm assembly | 85190-16110 · 85190-16111 |
| 85192R | Rear wiper arm cover | 85192-14020 |
| 85220R | Rear wiper blade assembly | 85220-16060 · 85220-16440 · 85220-20380 · 85220-24040 · 85220-30110 |
| 85221R | Rear wiper blade | 85221-16080 · 85221-91C01 |
