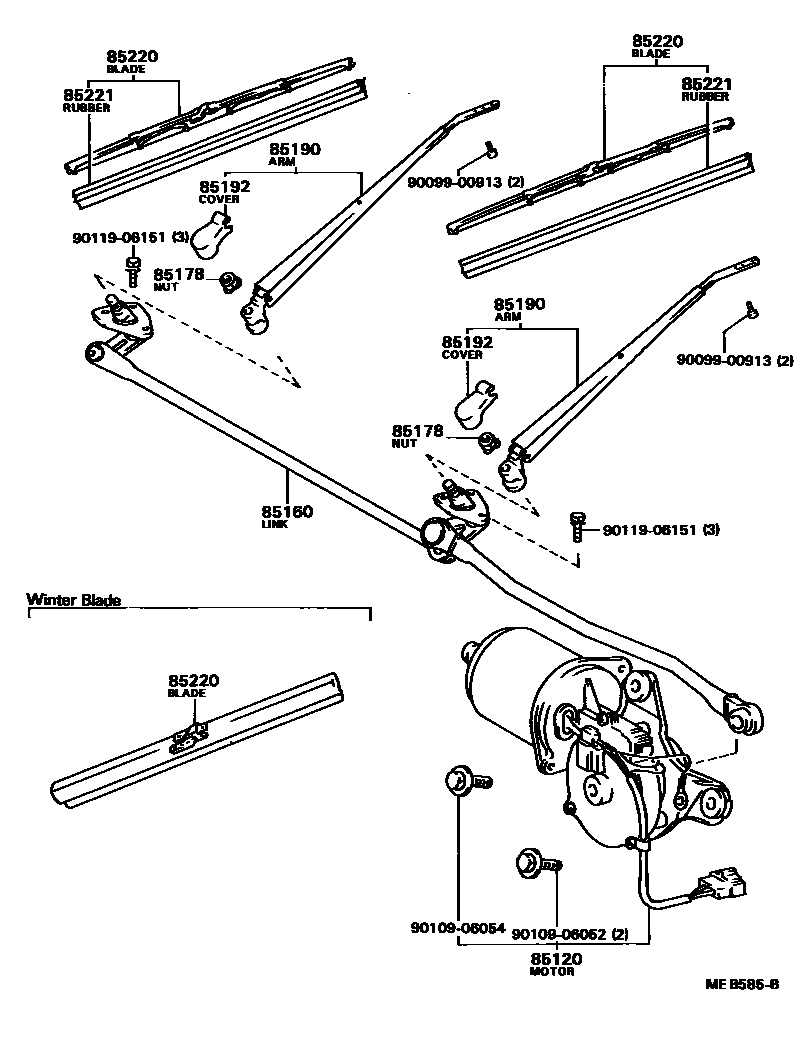

Toyota COROLLA 挡风玻璃刮水器 — Figure 8501
Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85120 | Windshield wiper motor and bracket assembly | 85120-16070 · 85120-16080 |
| 85160 | Windshield wiper connecting rod assembly | 85160-16120 |
| 85178 | Nut (for securing front wiper arm) | 90176-08016 |
| 85190 | Windshield wiper arm assembly | 85190-16070 · 85210-16010 |
| 85192 | windshield wiper arm cover | 85192-16010 |
| 85220 | Windshield wiper blade assembly | 85220-16100 · 85220-16110 · 85220-16320 · 85220-16350 · 85220-24040 |
| 85221 | Windshield wiper blade | 85221-30080 · 85221-30120 |
