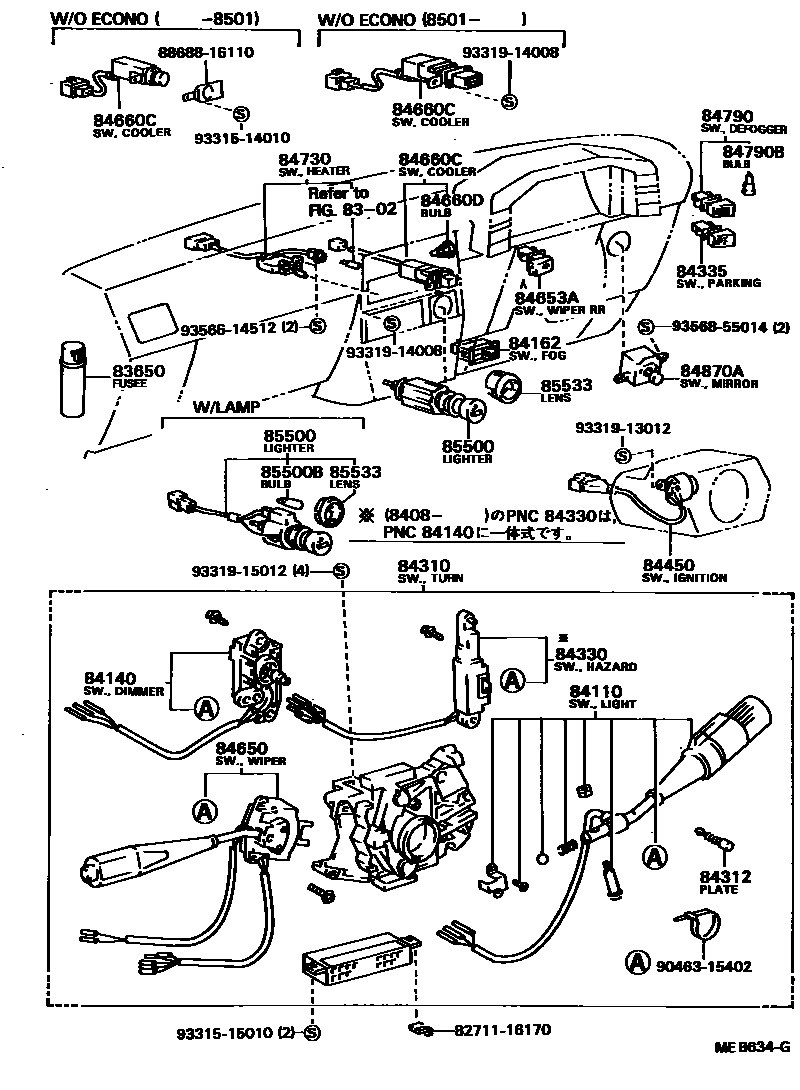

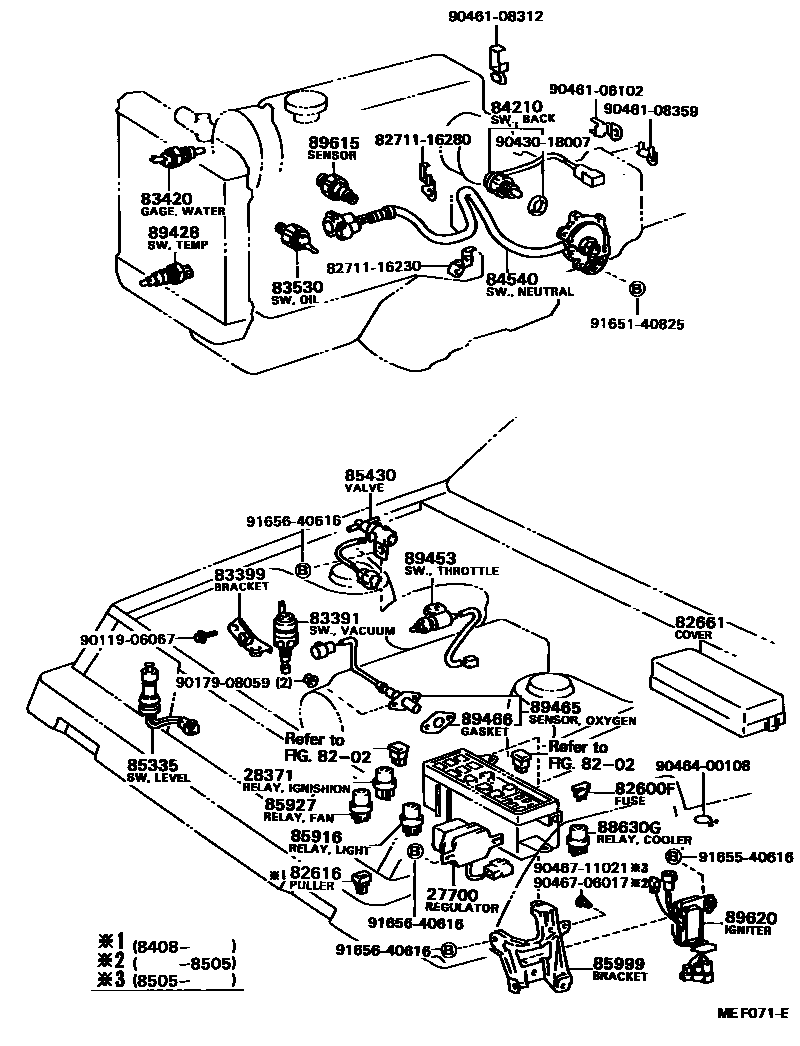

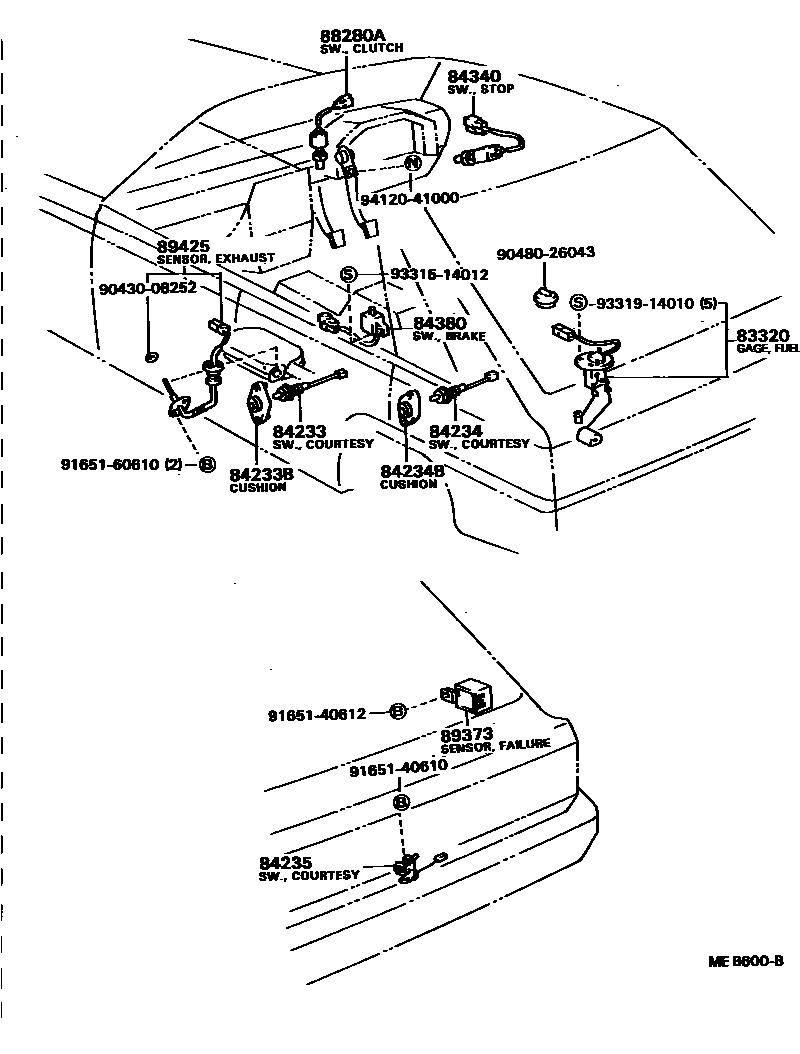

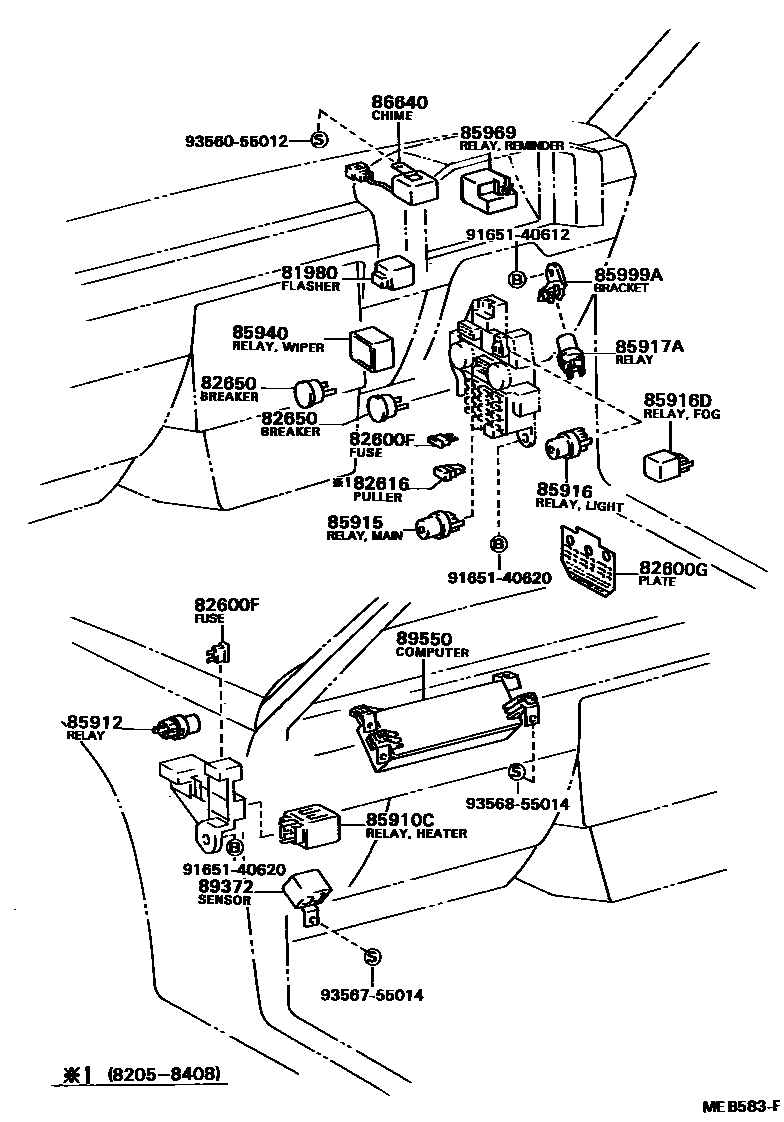

Toyota COROLLA 开关和继电器和ECU — Figure 8401
Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 4 images and 65 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27700 | Generator voltage regulator assembly | 27700-15020 |
| 28371 | No. 1 ignition relay | 90987-02002 · 90987-02004 |
| 81980 | Turn signal flasher relay assembly | 81980-16010 · 81980-22070 |
| 82600F | Spare fuse | 90982-07011 · 90982-09002 · 90982-09003 · 90982-09004 · 90982-09005 |
| 82600G | Warning nameplate (for fuses) | 74555-16130 |
| 82616 | fuse puller | 82616-12010 |
| 82650 | No. 1 circuit breaker assembly | 82650-20011 · 82650-32020 |
| 82661 | No. 1 relay box cover | 82661-16060 · 82661-16100 |
| 83320 | Fuel gauge sensor assembly | 83320-19605 · 83320-19615 · 83320-19665 · 83320-19695 · 83320-19705 · 83320-19706 |
| 83391 | Vacuum switch | 83391-16030 |
| 83399 | Vacuum switch bracket | 83399-16030 |
| 83420 | Water temperature sensor assembly | 83420-16010 · 83420-20020 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-12040 · 83530-14040 · 83530-30080 |
| 83650 | fuse | 90986-01003 |
| 84110 | No. 1 light control switch assembly | 84112-19365 · 84112-19385 · 84112-19665 · 84112-19675 |
| 84140 | Headlight dimmer switch assembly | 84140-19155 · 84140-19175 · 84140-19335 · 84140-19345 |
| 84162 | front fog light switch | 84160-16020 |
| 84210 | Reversing light switch assembly | 84210-16010 · 84210-16030 |
| 84233 | Door control light switch assembly (for front door) | 84231-20080 |
| 84233B | Door light switch cushion (for front doors) | 84234-22010 |
| 84234 | Door control light switch assembly (for rear door) | 84231-20080 |
| 84234B | Door light switch cushion (for rear doors) | 84234-22010 |
| 84235 | Door control light switch assembly (for back door) | 84231-16020 · 84231-16021 |
| 84310 | Turn signal switch assembly | 84310-16080 · 84310-16090 · 84310-16101 · 84310-16140 · 84310-16170 |
| 84312 | Speaker contact piece | 84312-32010 · 84312-32020 |
| 84330 | Hazard warning signal switch assembly | 84332-19125 · 84332-19145 |
| 84335 | Parking light switch assembly | 84330-16020 · 84330-16021 |
| 84340 | brake light switch assembly | 84340-30030 · 84340-32010 |
| 84380 | Brake warning test switch assembly | 84550-16010 · 84550-24010 |
| 84450 | Ignition or starter switch assembly | 84450-16020 |
| 84540 | Neutral start switch assembly | 84540-16020 |
| 84650 | Windshield wiper switch assembly | 84652-19585 · 84652-19595 · 84652-19635 · 84652-19645 · 84652-19656 · 84652-80048 |
| 84653A | Rear wiper switch | 84653-16020 · 84653-16021 |
| 84660C | Cooler switch | 84660-16020 · 84660-16040 · 84660-16041 |
| 84660D | Light bulb (for cooler switch) | 88607-32010 |
| 84730 | Heater blower switch assembly | 84732-16030 · 84732-16031 · 84732-16040 · 84732-16050 · 84732-16060 |
| 84790 | Rear window defogger switch assembly | 84790-16030 · 84790-16031 |
| 84790B | Bulb (for rear window defogger switch) | 84999-10110 · 84999-10170 |
| 84870A | Exterior rearview mirror switch assembly | 84870-32010 · 84870-32011 |
| 85335 | Cleaner liquid level warning switch assembly | 85335-16220 · 85335-22020 |
| 85430 | External ventilation control valve | 85430-16030 |
| 85500 | Cigarette lighter assembly | 85500-10090 · 85500-16050 · 85500-16060 · 85500-16090 |
| 85500B | Cigarette lighter bulb | 90981-11014 |
| 85533 | Cigarette lighter indicator lamp shade | 85533-10010 |
| 85910C | Relay assembly (for heater blower motor) | 85913-30020 |
| 85915 | main relay | 90987-02002 |
| 85916 | Light control relay | 90987-01003 · 90987-02002 · 90987-02006 |
| 85916D | fog light relay | 90987-02002 |
| 85927 | cooling fan relay | 90987-03001 |
| 85940 | Windshield wiper relay assembly | 85940-12020 · 85940-16010 |
| 85969 | car light reminder relay | 85969-16010 |
| 85999 | Combination relay bracket | 85999-16030 |
| 86640 | Warning bell assembly | 86640-16040 |
| 88280A | Clutch switch assembly | 88280-16010 |
| 88630G | Cooler relay assembly | 90987-01003 · 90987-02004 |
| 89372 | Motor fault indicator light sensor | 89372-16040 · 89372-16050 |
| 89373 | Malfunction indicator light sensor | 89373-16030 · 89373-16050 |
| 89425 | Exhaust gas temperature sensor | 89425-19255 · 89425-19305 · 89425-19345 |
| 89428 | No. 2 temperature detection switch | 89428-15030 |
| 89453 | Throttle position switch (for T.C.S.) | 89453-14010 |
| 89465 | oxygen sensor | 89465-19065 · 89465-19075 · 89465-29085 |
| 89466 | Oxygen sensor pad | 89466-30010 · 89466-32010 |
| 89550 | Emission control ECU assembly | 89550-16040 · 89550-16050 · 89550-16080 · 89550-16130 · 89550-16140 · 89550-16150 |
| 89615 | knock control sensor | 89615-16010 |
| 89620 | Ignition assembly | 89620-16090 |
