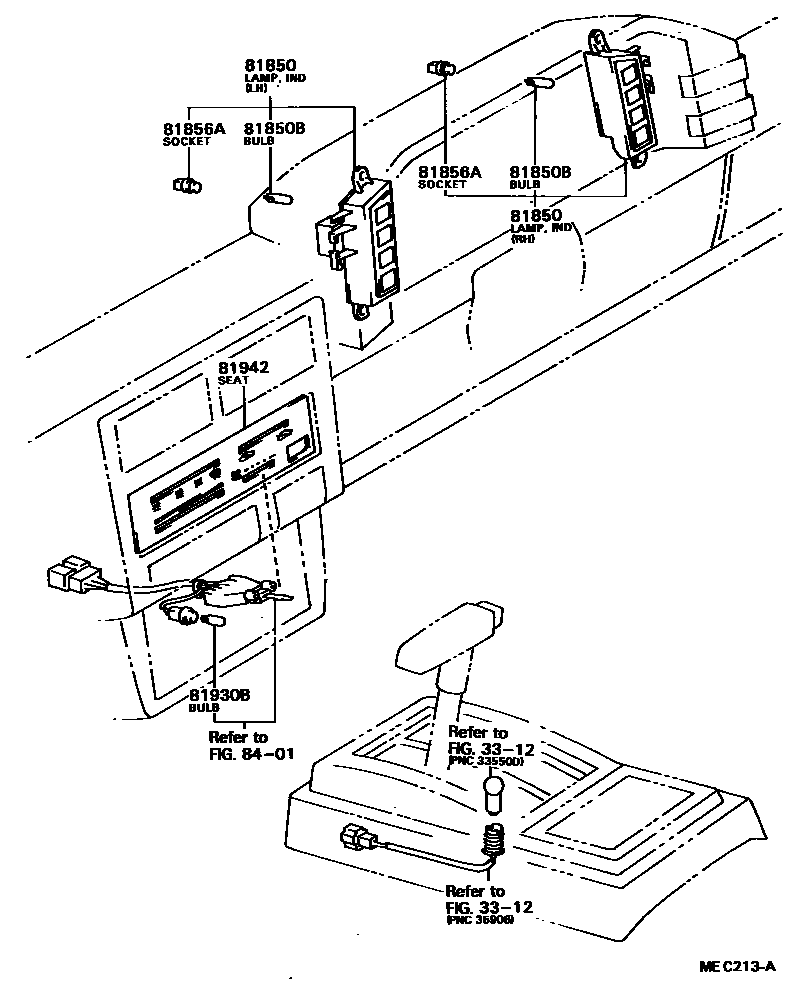

Toyota COROLLA indicator light — Figure 8302
Toyota COROLLA EPC diagram 8302, indicator light, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81850 | Indicator light assembly | 81850-16010 · 81850-16020 · 81850-16040 · 81850-16170 |
| 81850B | pilot light bulb | 90981-11018 |
| 81856A | Indicator lamp holder | 83101-14040 |
| 81930B | Heater control indicator light bulb | 90981-11014 |
| 81942 | Heater control nameplate | 81942-16020 · 81942-16021 · 81942-16040 · 81942-16070 · 81942-16080 |
