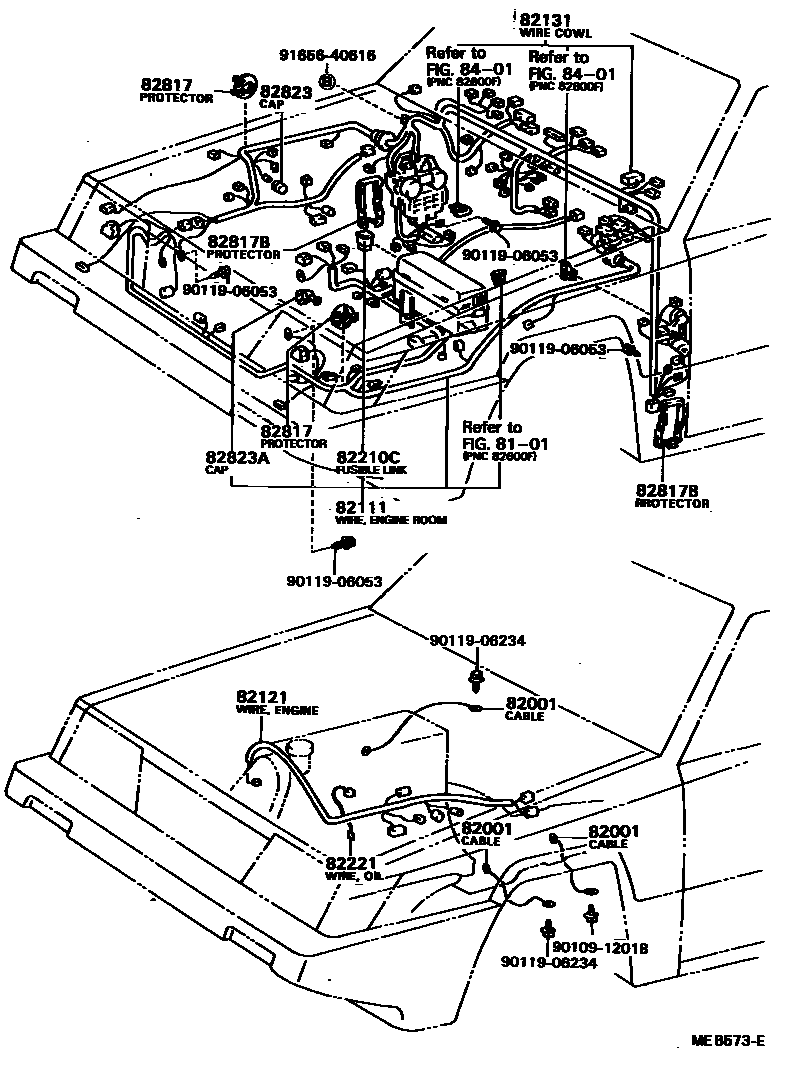

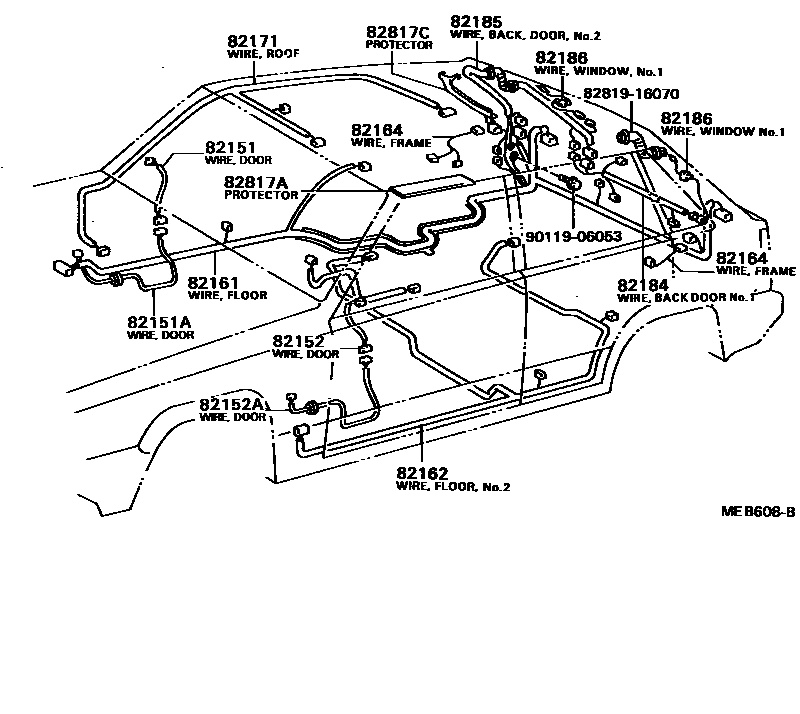

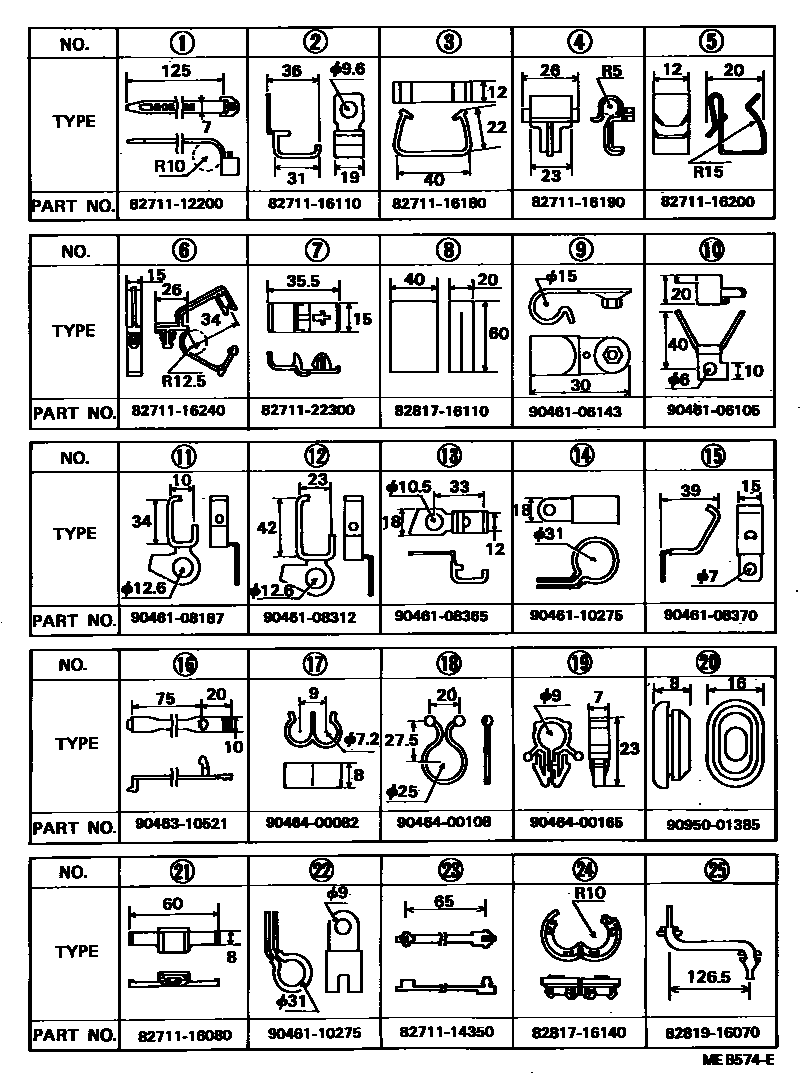

Toyota COROLLA 线束和卡夹 — Figure 8202
Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 5 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82001 | Connection cable No. 1 | 90980-07119 · 90980-07200 · 90980-07207 · 90980-07208 · 90980-07233 |
| 82111 | Engine room main wiring harness | 82111-16010 · 82111-16030 · 82111-16040 · 82111-16160 · 82111-16170 · 82111-16180 · 82111-16250 · 82111-16260 · 82111-16270 |
| 82121 | Engine wiring harness | 82121-16010 · 82121-16040 · 82121-16110 · 82121-16140 · 82121-16150 |
| 82131 | Front panel wiring harness | 82131-16010 · 82131-16020 · 82131-16200 · 82131-16220 · 82131-16330 · 82131-16340 · 82131-16350 · 82131-16360 |
| 82151 | Right front door wiring harness | 82151-16010 |
| 82151A | Right front door wiring harness No. 2 | 82151-16020 |
| 82152 | Left front door wiring harness | 82151-16010 |
| 82152A | Left front door wiring harness No. 2 | 82152-16010 |
| 82161 | floor wiring harness | 82161-16010 · 82161-16020 · 82161-16030 · 82161-16150 · 82161-16170 · 82161-16180 · 82161-16190 · 82161-16200 |
| 82162 | Floor wiring harness No. 2 | 82162-16010 · 82162-16011 · 82162-16100 · 82162-16120 · 82162-16170 |
| 82164 | Frame wiring harness set | 82164-16010 · 82164-16040 · 82164-16050 |
| 82171 | Roof No. 1 wiring harness | 82171-16010 · 82171-16030 |
| 82184 | Rear door No. 1 wiring harness | 82184-16010 · 82184-16020 |
| 82185 | Rear door wiring harness No. 2 | 82185-16010 · 82185-16050 · 82185-16070 · 82185-16080 |
| 82186 | Rear window wiring harness No. 1 | 82186-16010 |
| 82210C | fuse | 90982-08188 · 90982-08190 |
| 82221 | Oil pressure switch wiring harness | 82221-16010 |
| 82817 | No. 1 wire harness protection device | 82817-16020 |
| 82817A | No. 2 wire harness protection device | 82817-16100 |
| 82817B | No. 3 wire harness protection device | 82817-16040 · 82817-16050 |
| 82817C | No. 4 wire harness protection device | 82817-16120 |
| 82823 | No. 1 terminal cover | 82823-16010 · 82823-30010 |
| 82823A | Terminal cover No. 2 | 82823-22020 · 82823-32020 |

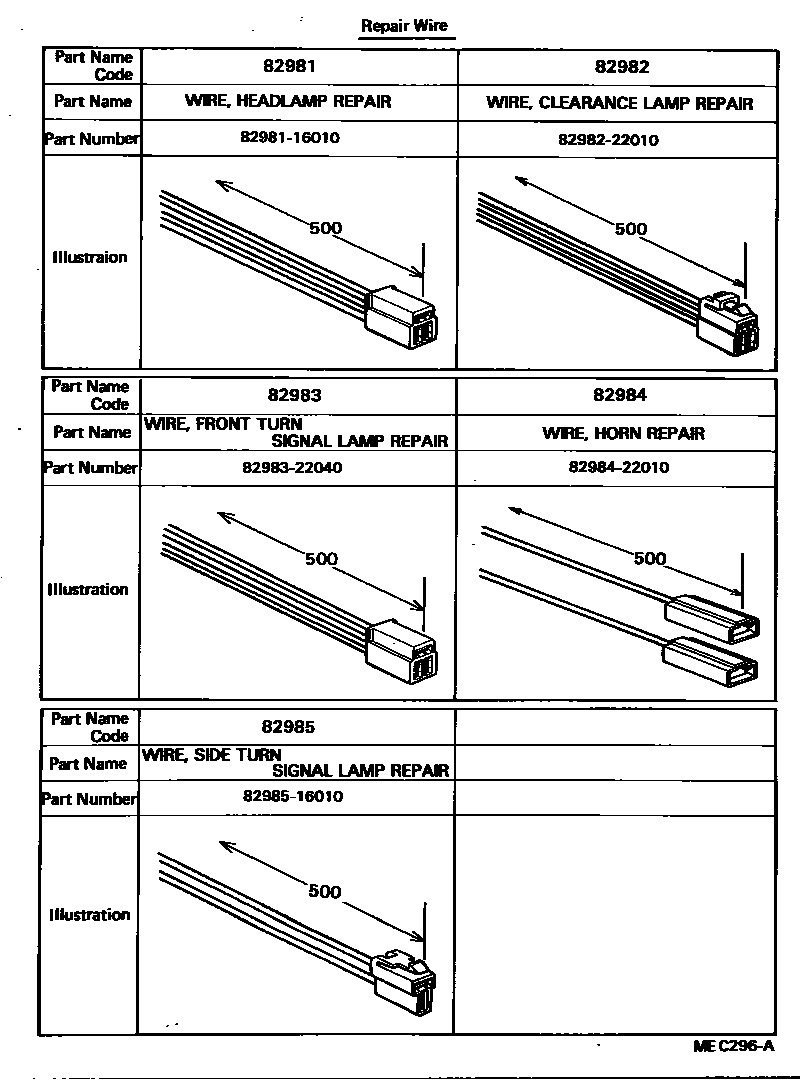

| 82981 | Headlight repair line | 82981-16010 |
| 82982 | Width light repair line | 82982-22010 |
| 82983 | Front turn signal lamp repair line | 82983-22040 |
| 82984 | Speaker repair line | 82984-22010 |
| 82985 | Side turn signal lamp repair line | 82985-16010 |
