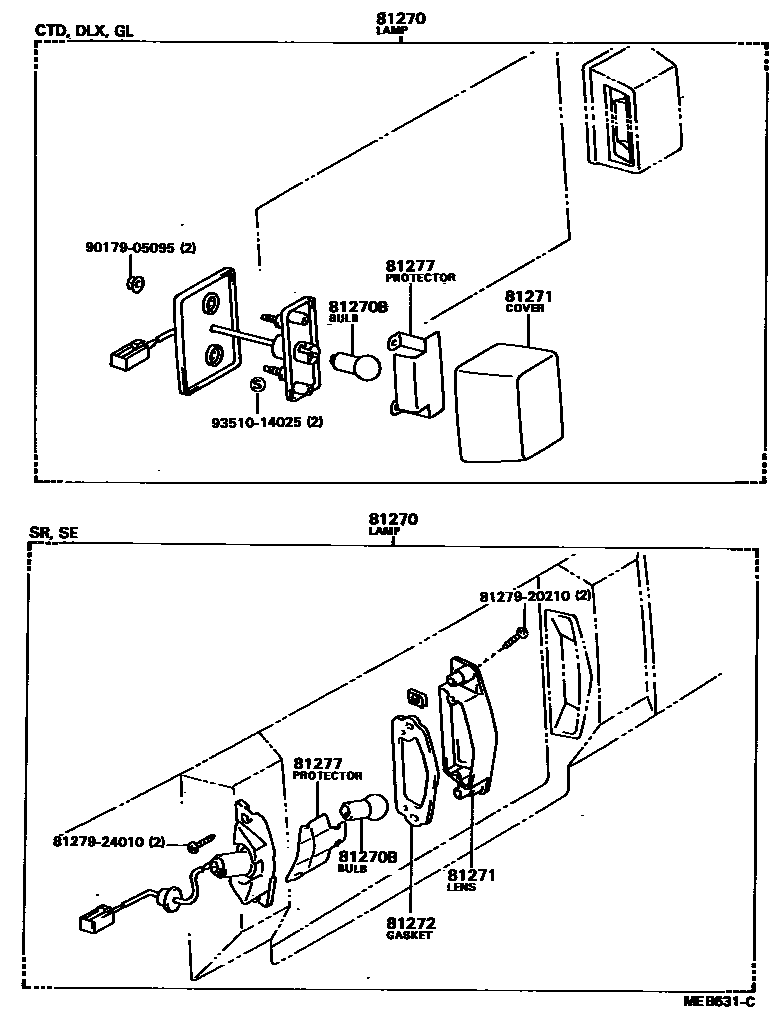

Toyota COROLLA 后牌照灯 — Figure 8113
Toyota COROLLA EPC diagram 8113, 后牌照灯, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-16190 · 81270-19825 · 81270-19826 · 81690-19185 · 81690-19186 |
| 81270B | Bulb (for license plate light) | 90981-12013 · 99132-11100 |
| 81271 | license plate lamp shade | 81271-10141 · 81271-16120 · 81271-20210 |
| 81272 | License plate lamp shade gasket | 81272-20210 |
| 81277 | License plate light frame and lampshade spacer | 81277-16120 · 81277-20210 |
