Toyota COROLLA 后组合灯 — Figure 8111

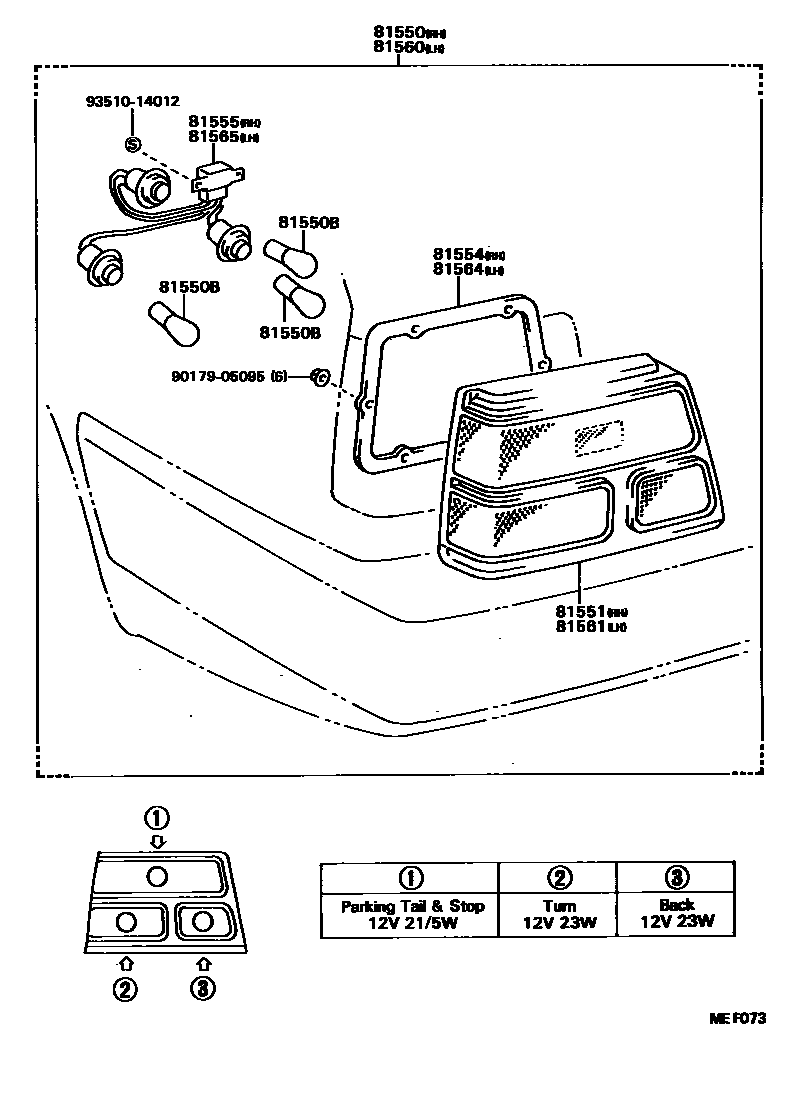

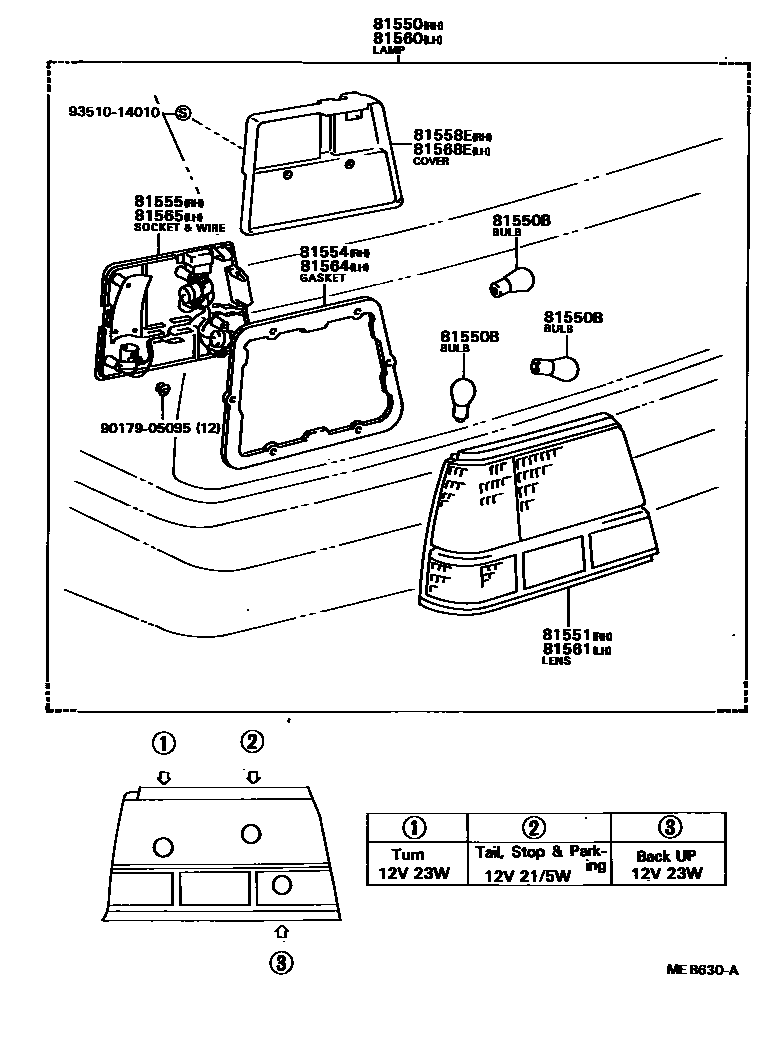

Toyota COROLLA EPC diagram 8111, 后组合灯, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-80132 · 81550-80159 · 81550-80180 · 81550-80239 |
| 81550B | Bulb (for rear combination lights) | 99132-11230 · 99132-21210 |
| 81551 | Right rear combination lamp shade | 81551-16230 · 81551-16231 · 81551-16232 |
| 81554 | Right rear combination lamp body gasket | 81554-16210 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-16230 · 81555-16232 |
| 81558E | Right rear combination lamp cover | 81556-16290 |
| 81560 | Left rear combination light assembly | 81560-80136 · 81560-80164 · 81560-80185 · 81560-80245 |
| 81561 | Left rear combination lamp shade | 81561-16230 · 81561-16231 · 81561-16232 |
| 81564 | Left rear combination lamp body gasket | 81554-16210 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-16232 · 81565-16230 |
| 81568E | Left rear combination lamp cover | 81566-16290 |
