Toyota COROLLA Fog Lamp — Figure 8102

Toyota COROLLA EPC diagram 8102, Fog Lamp, with 1 images and 4 PNC and OE references.

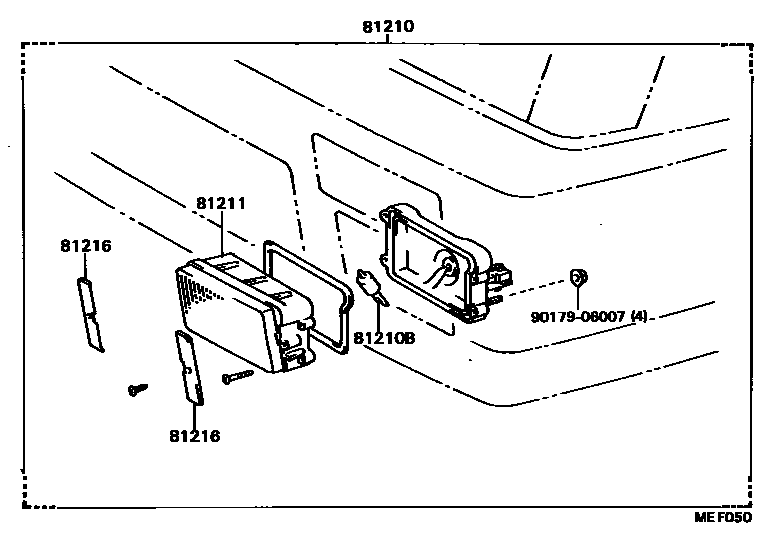

Toyota COROLLA Fog Lamp EPC diagram — MEF050 — Fog Lamp — MEF050 (198408 – 999999)

PNC and OE references

PNC	Part name	OE numbers
81210	Fog light assembly	81210-19175 · 81220-19095
81210B	fog light bulb	90981-13028
81211	fog lamp shade	81211-16030 · 81221-16010
81216	No. 1 fog light frame	81216-16030
