Toyota COROLLA Headlamp — Figure 8101

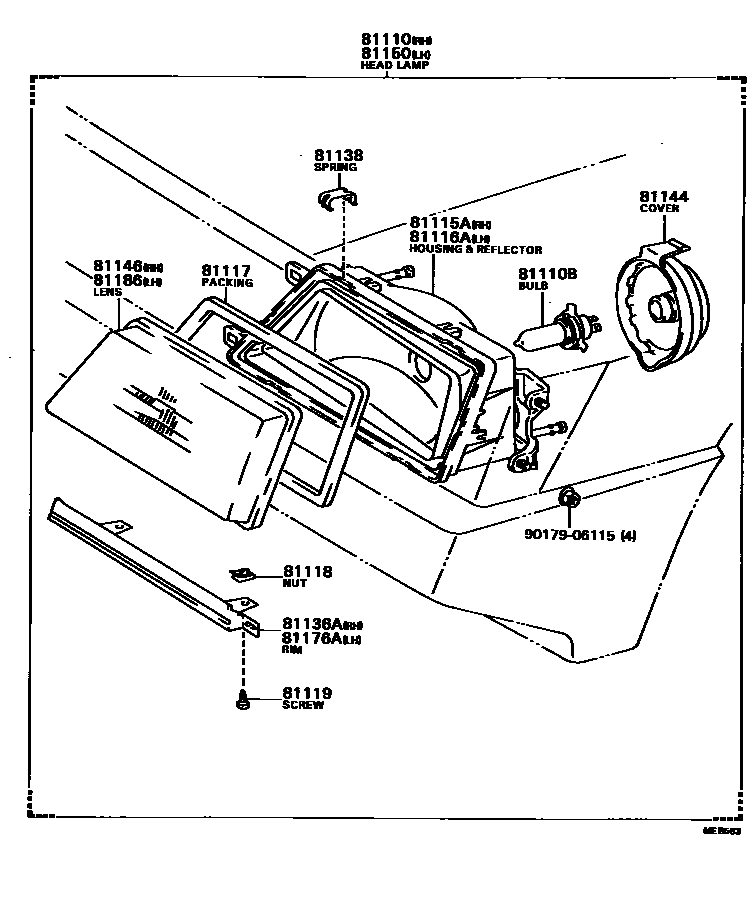

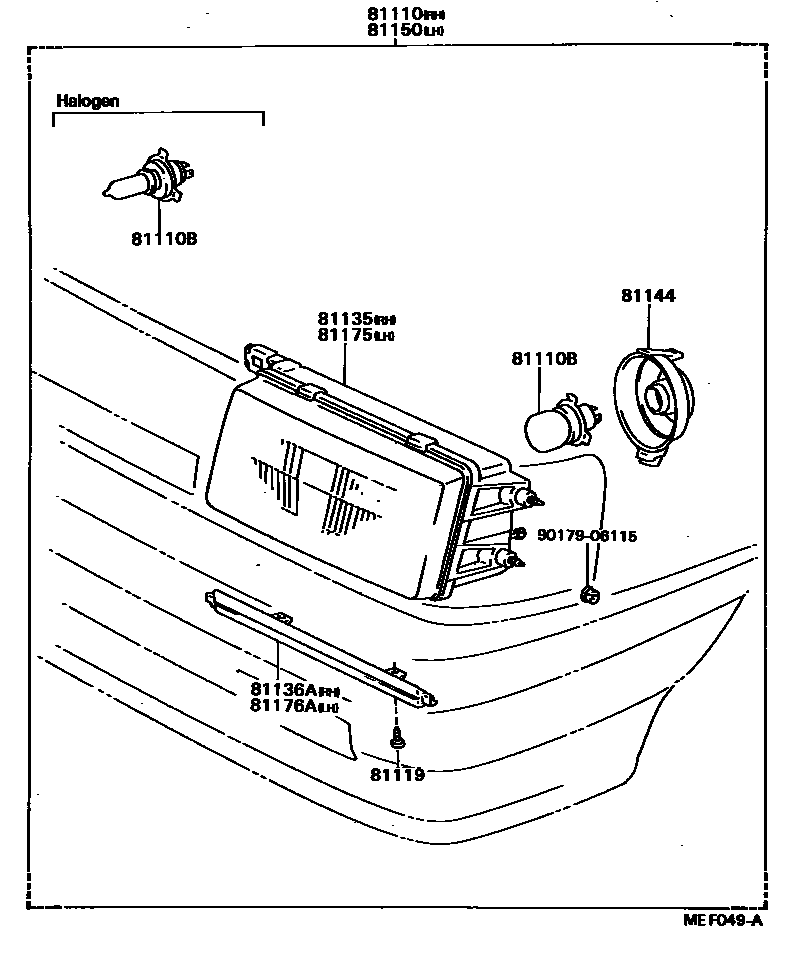

Toyota COROLLA EPC diagram 8101, Headlamp, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-80209 · 81110-80210 · 81110-80422 · 81110-80423 |
| 81110B | Bulb (for headlight No. 1) | 90981-13015 · 90981-13022 |
| 81115A | Right headlight body and reflector sub-assembly | 81105-16150 · 81105-16160 |
| 81116A | Left headlight body and reflector sub-assembly | 81106-16150 · 81106-16160 |
| 81117 | Headlight housing seal | 81136-32030 |
| 81118 | spring nut | 81128-16150 |
| 81119 | headlight screw | 81119-14880 · 81119-16150 |
| 81135 | Right headlight assembly | 81105-16151 · 81105-16161 |
| 81136A | Right headlight frame | 81112-16150 |
| 81138 | headlight spring | 81138-14880 · 81138-32030 |
| 81144 | No. 1 headlight cover | 81139-14880 |
| 81146 | Right headlight lampshade | 81135-32030 |
| 81150 | Left headlight assembly | 81150-80206 · 81150-80207 · 81150-80414 · 81150-80415 |
| 81175 | Left headlight assembly | 81106-16151 · 81106-16161 |
| 81176A | Left headlight frame | 81152-16150 |
| 81186 | Left headlight lampshade | 81176-32030 |
