Toyota COROLLA accelerator pedal connecting rod — Figure 7801

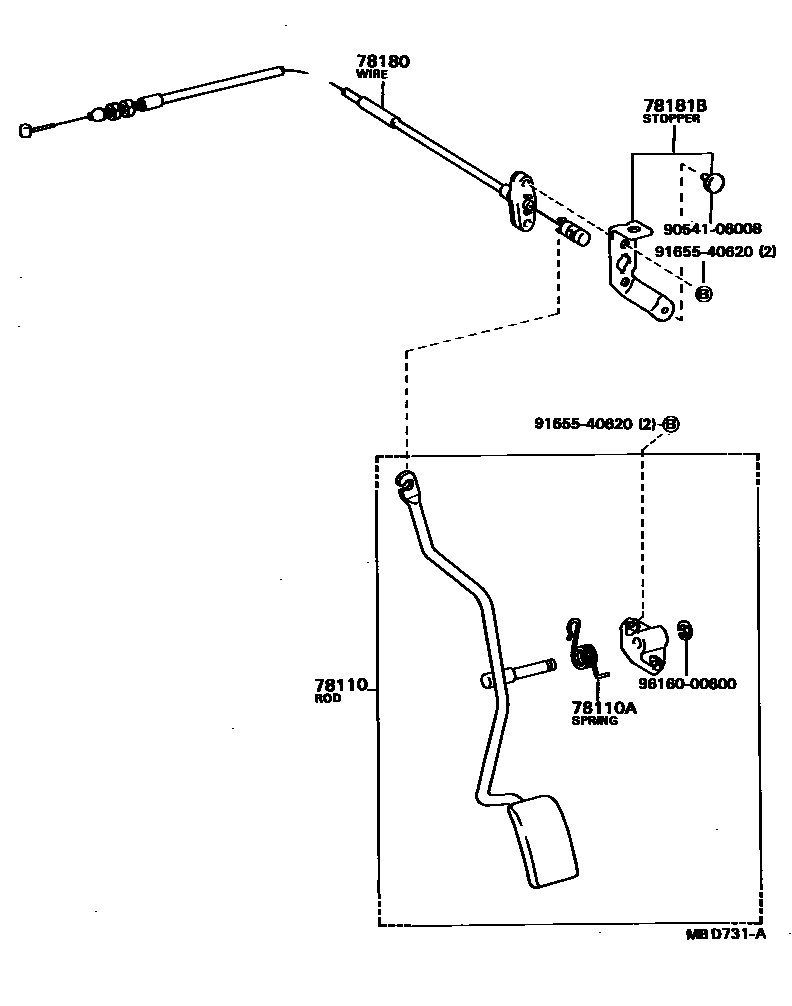

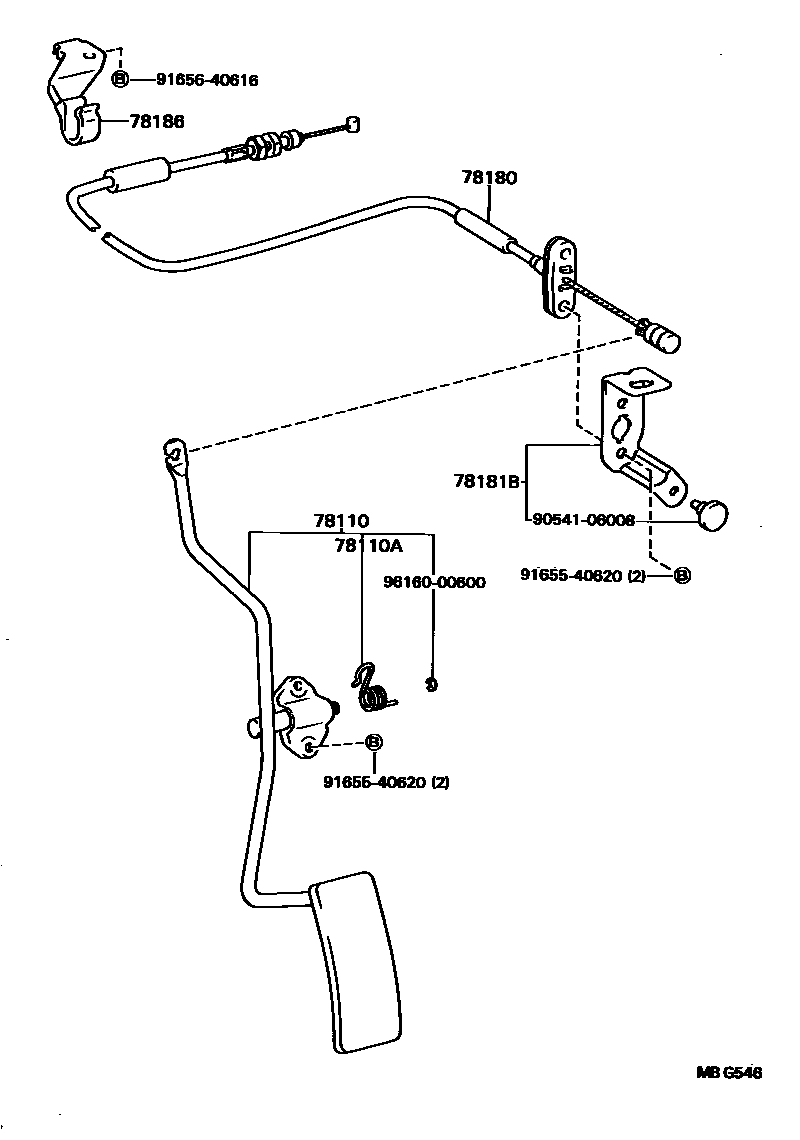

Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78110 | Accelerator pedal lever assembly | 78120-16030 · 78120-16070 |
| 78110A | Spring (for accelerator pedal lever) | 90508-18030 |
| 78180 | Throttle cable assembly | 78180-16050 · 78180-16080 · 78180-16090 · 78180-16100 |
| 78181B | Accelerator pedal idle speed adjustment stop | 78181-16020 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-16010 |
