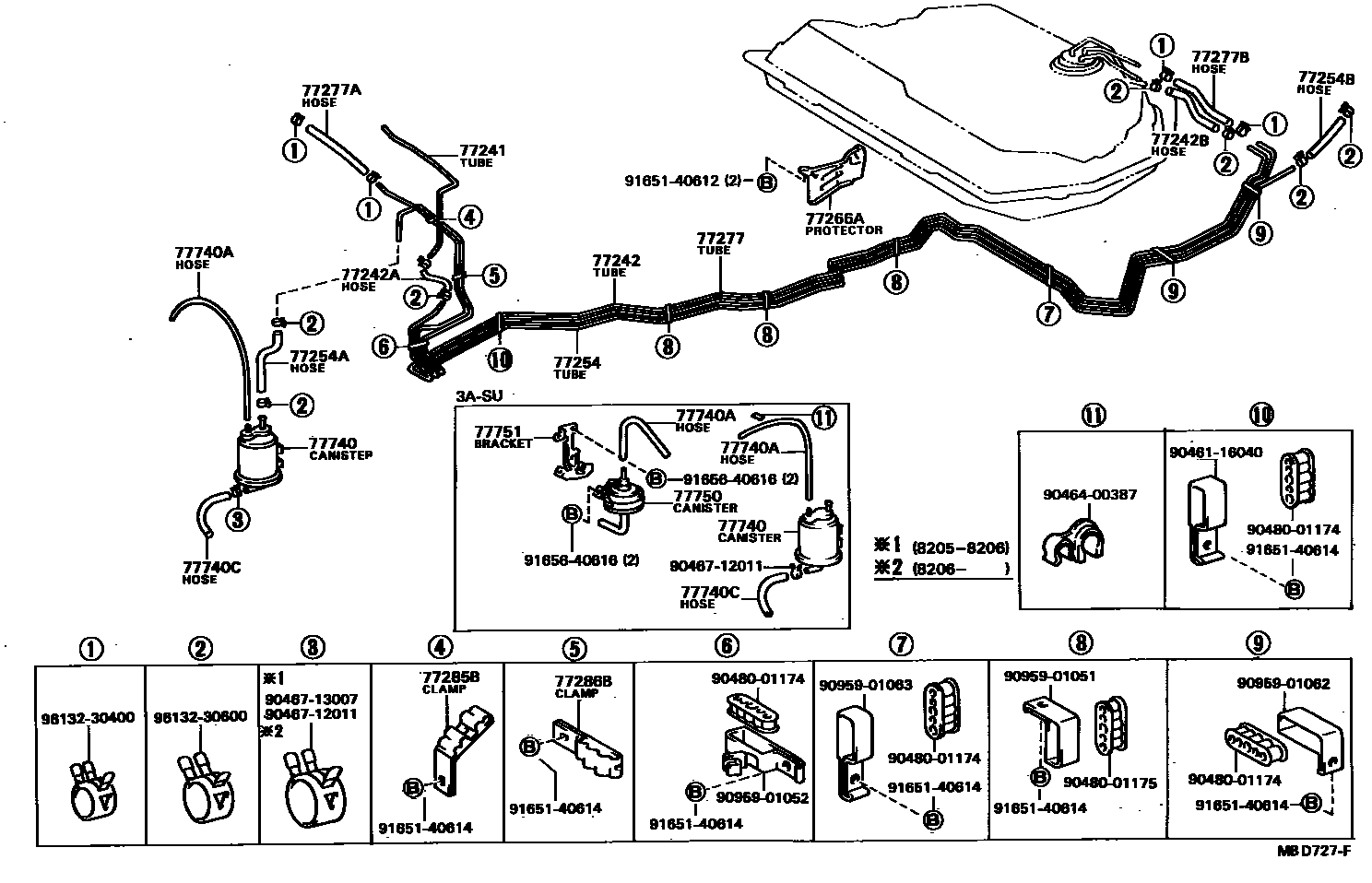

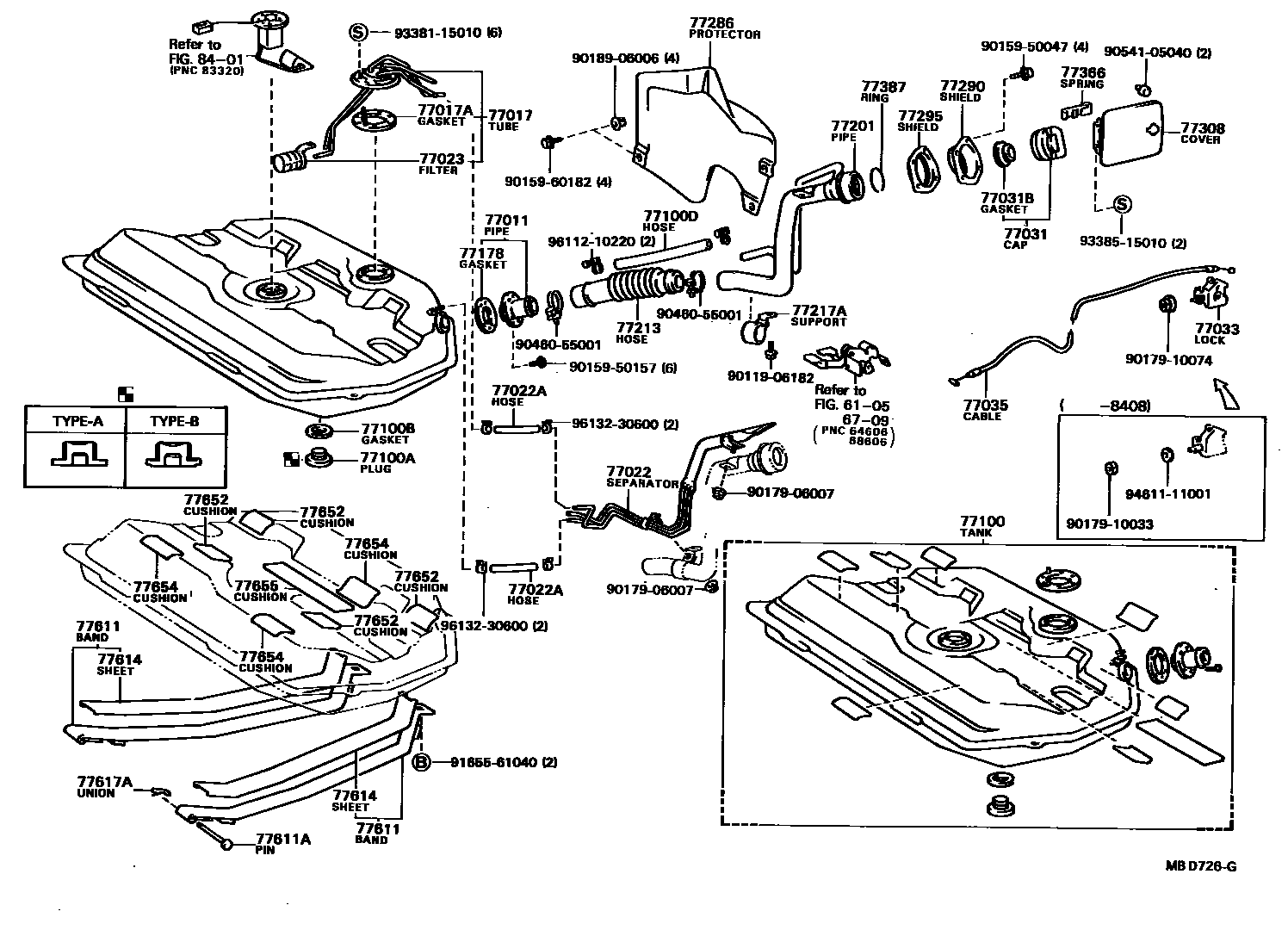

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 2 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 77011 | Filling pipe sub-assembly under fuel tank | 77011-16030 · 77011-32010 |
| 77017 | Fuel and evaporative vent pipe sub-assembly | 77017-16030 |
| 77017A | fuel tank vent pipe gasket | 77178-10010 |
| 77022 | Fuel vapor separator sub-assembly | 77022-16010 |
| 77023 | Fuel suction pipe filter sub-assembly | 77023-12050 |
| 77031 | Fuel tank cap assembly | 77310-12100 |
| 77031B | Gasket (for fuel tank cap) | 77316-12050 |
| 77033 | Fuel tank cap lock sub-assembly | 77037-12040 · 77037-14010 · 77037-24010 · 77037-32010 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-16010 |
| 77100 | fuel tank assembly | 77001-19145 · 77001-19405 |
| 77100A | Screw plug (for fuel tank) | 90341-20003 · 90341-20004 |
| 77100B | Gasket (for fuel tank) | 90430-20006 · 90430-20007 |
| 77100D | No. 1 fuel hose (for fuel tank) | 77259-16010 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-13020 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-16030 |
| 77213 | Fuel tank auxiliary fuel inlet hose | 77213-16030 · 77213-16031 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-16010 |
| 77241 | No. 1 main fuel pipe | 77252-16040 · 77252-16041 |
| 77242 | No. 2 main fuel pipe | 77251-16030 |
| 77242A | No. 1 fuel hose (for No. 2 main pipe) | 95332-06020 |
| 77254 | No. 1 fuel evaporation exhaust pipe | 77261-16030 |
| 77266A | No. 1 fuel line protection device | 77266-16010 |
| 77277 | No. 1 fuel return pipe | 77255-16030 · 77255-16031 |
| 77285B | No. 1 fuel pipe clamp with retaining ring | 77285-16030 |
| 77286 | Fuel tank inlet pipe protection device | 77277-16030 |
| 77286B | No. 2 fuel pipe clamp with retaining ring | 77286-16030 |
| 77290 | Fuel tank filler pipe cover assembly | 77290-16010 |
| 77295 | Fuel filler pipe cover | 77293-16010 |
| 77308 | Fuel inlet cap sub-assembly | 77350-16050 |
| 77366 | Fuel filler cap hinge spring | 77360-24010 |
| 77387 | fuel inlet ring | 77391-14020 |
| 77611 | fuel tank strap | 77601-16020 · 77601-16030 · 77602-16020 · 77602-16030 |
| 77611A | Pin (for fuel tank strap) | 90240-08020 |
| 77614 | Fuel tank strap seat | 77681-16020 |
| 77617A | Auxiliary fuel tank strap connector | 77617-12010 |
| 77652 | No. 1 fuel tank liner | 77651-16020 |
| 77654 | No. 2 fuel tank liner | 77652-16050 · 77654-16010 |
| 77655 | No. 3 fuel tank liner | 77653-16020 |
| 77740 | Carbon canister assembly | 77704-60050 |
| 77740A | No. 1 fuel hose (for canister) | 90447-04064 · 95413-49945 · 95413-49970 |
| 77740C | No. 3 fuel hose (for charcoal canister) | 90445-12122 |
| 77750 | Carbon canister assembly | 77740-16050 |
| 77751 | Carbon canister base bracket | 77751-16071 |
