Toyota COROLLA 挡泥板和扰流板 — Figure 7601

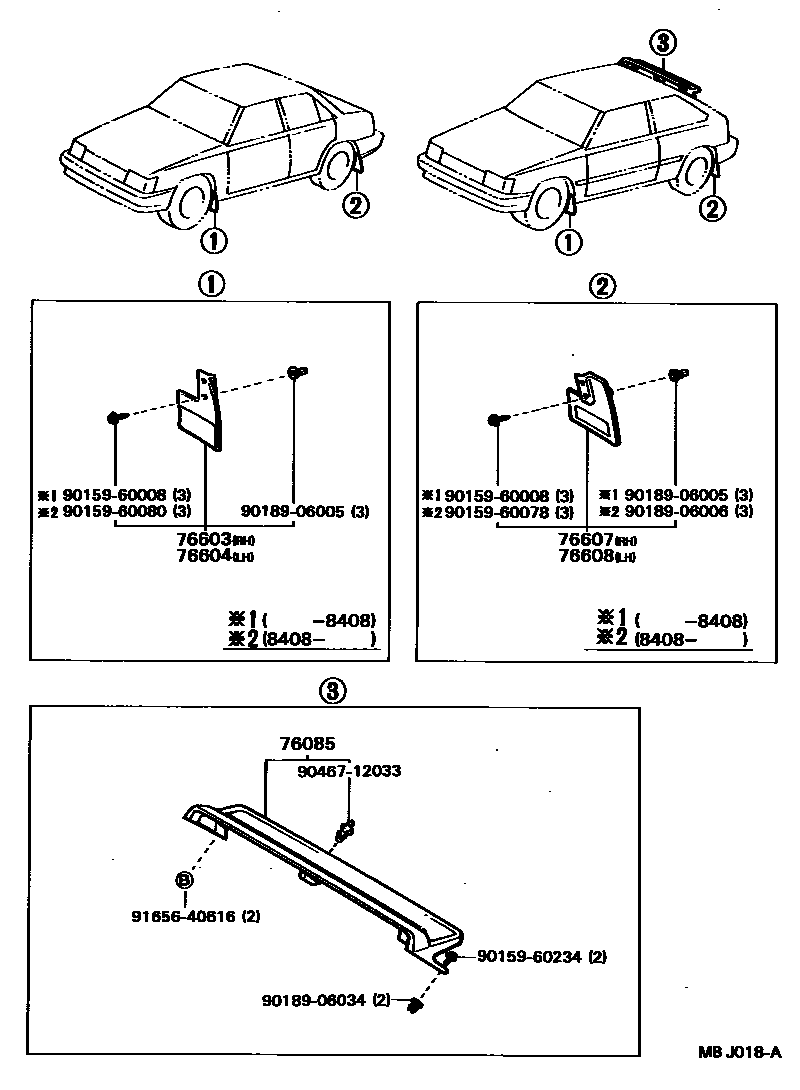

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76085 | Rear spoiler sub-assembly | 76085-16010 |
| 76603 | Right front fender fender sub-assembly | 76603-19085 · 76603-19125 |
| 76604 | Left front fender fender sub-assembly | 76604-19085 · 76604-19125 |
| 76607 | Right rear side fender sub-assembly | 76607-19135 · 76607-19215 |
| 76608 | Left rear side fender sub-assembly | 76608-19135 · 76608-19215 |
