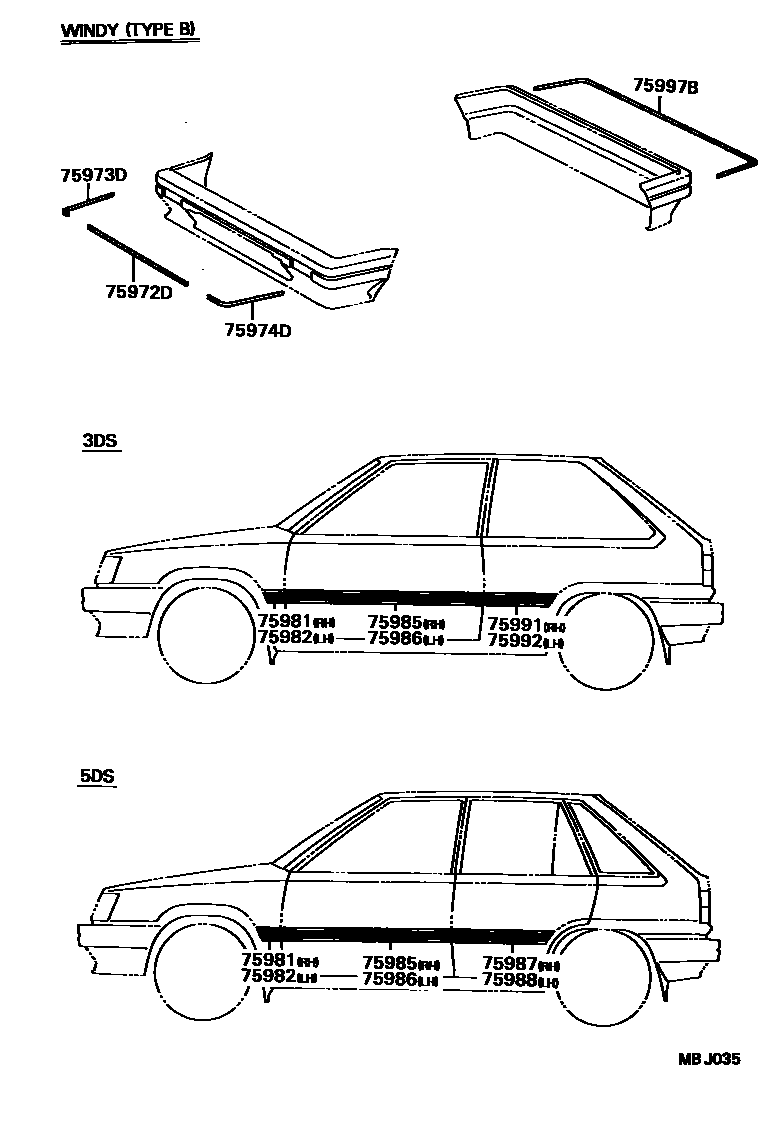

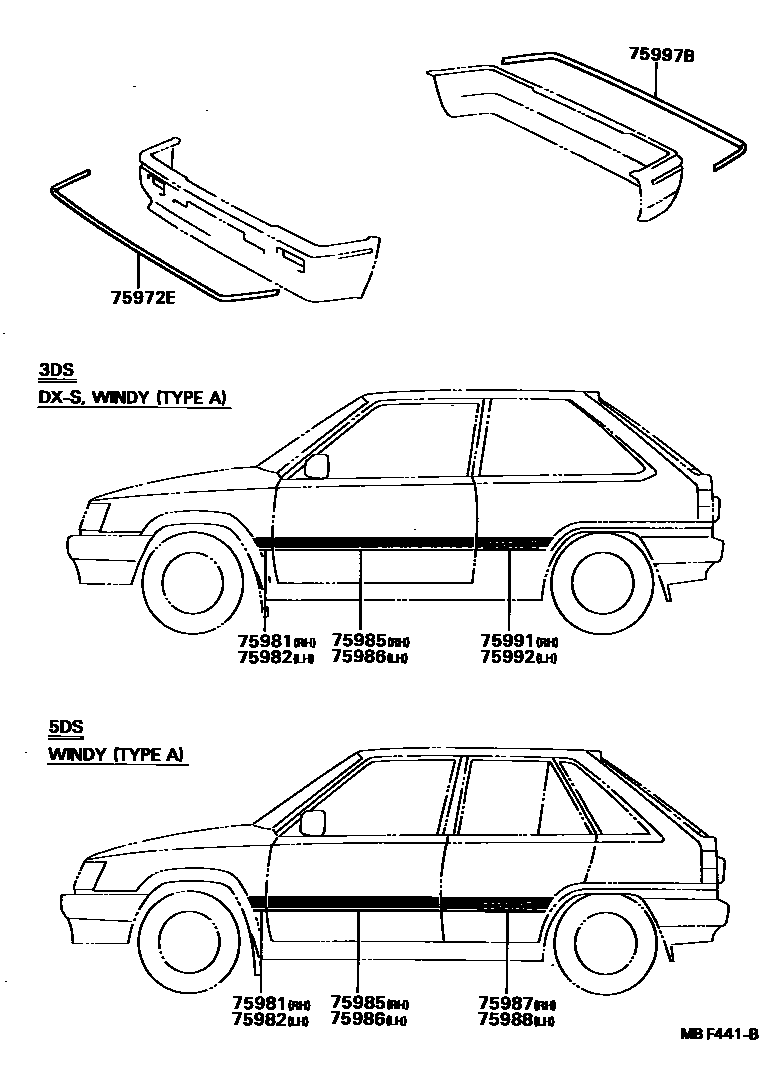

Toyota COROLLA 车身镶条 — Figure 7507
Toyota COROLLA EPC diagram 7507, 车身镶条, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75972D | Front bumper center strip | 75972-16020 |
| 75972E | front bumper trim | 75981-16070 |
| 75973D | Front bumper right side strip | 75973-16040 |
| 75974D | Front bumper left side strip | 75973-16040 |
| 75981 | No. 1 right front fender panel | 75981-16080 · 75981-16120 |
| 75982 | No. 1 left front fender panel | 75982-16060 · 75982-16100 |
| 75985 | Right front door trim | 75985-16100 · 75985-16180 · 75985-16190 · 75985-16200 |
| 75986 | Left front door trim | 75986-16100 · 75986-16180 · 75986-16190 · 75986-16200 |
| 75987 | Right rear door trim | 75987-16070 · 75987-16080 |
| 75988 | Left rear door trim | 75988-16070 · 75988-16080 |
| 75991 | No. 1 right side surround strip | 75991-16100 · 75991-16130 |
| 75992 | No. 1 left side surround strip | 75992-16080 · 75992-16110 |
| 75997B | Rear bumper molding | 75996-16020 · 75997-16040 |
