Toyota COROLLA 侧防护条 — Figure 7503

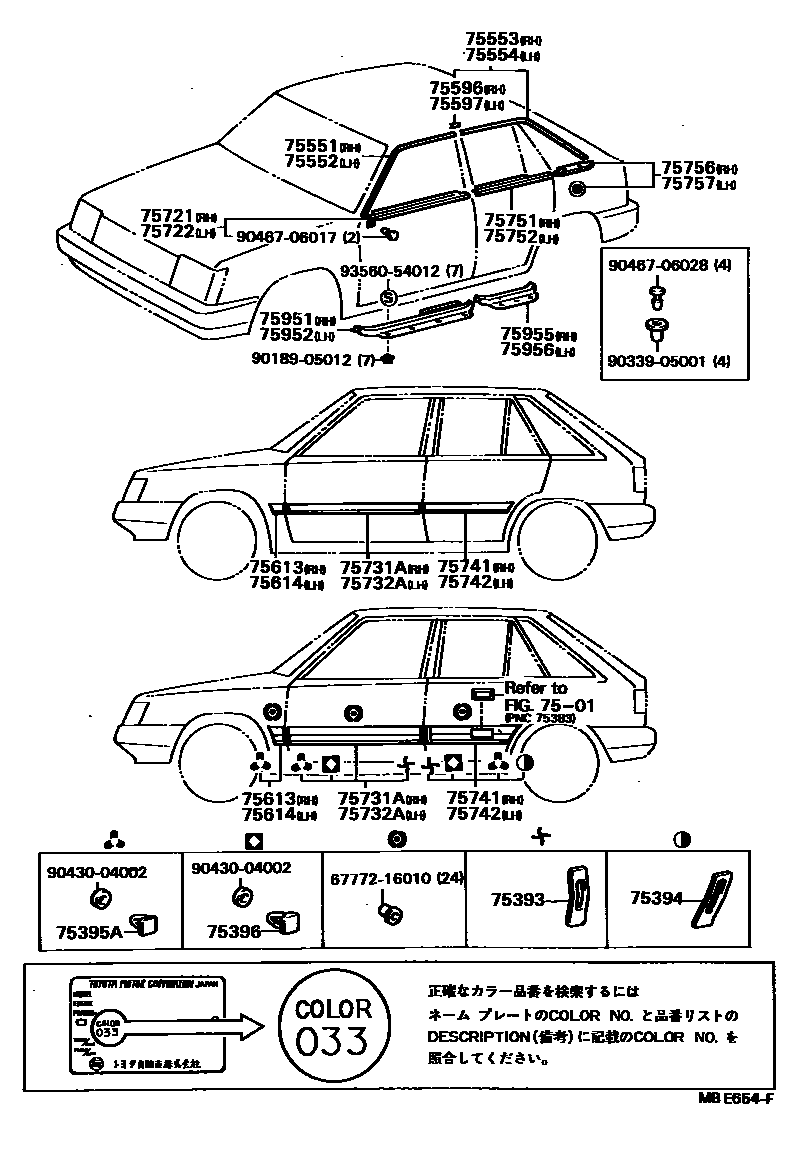

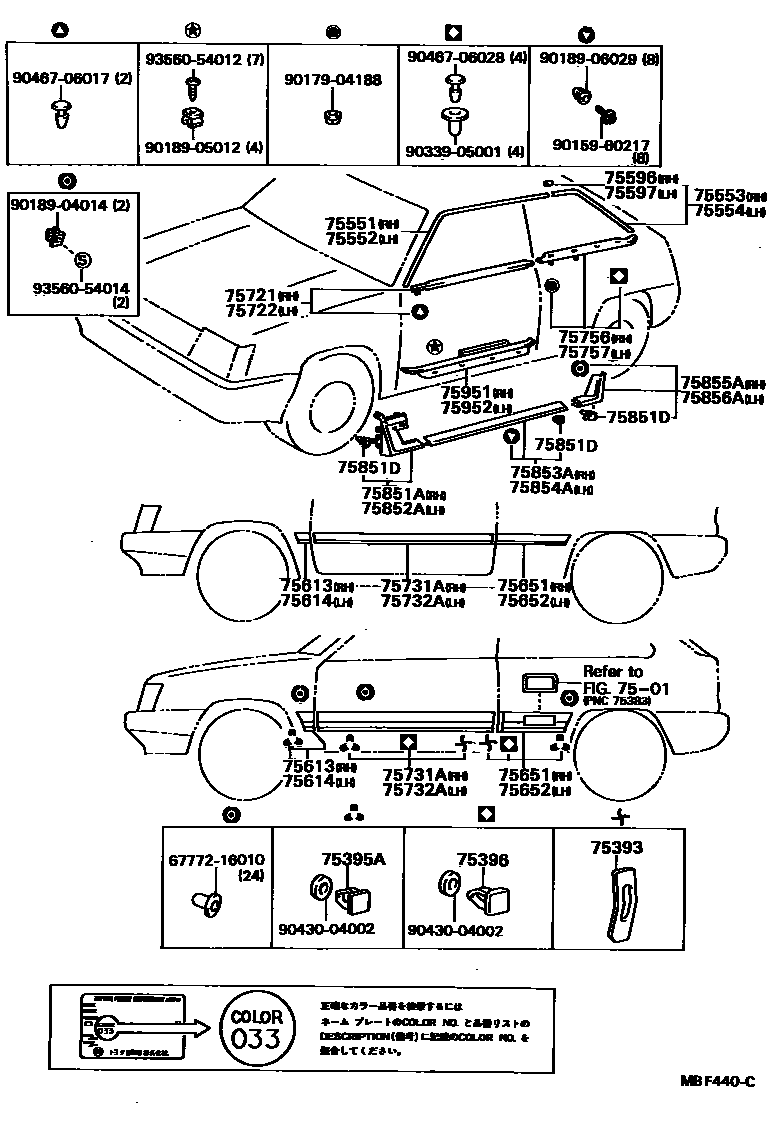

Toyota COROLLA EPC diagram 7503, 侧防护条, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75393 | No. 2 outer protective strip fixings | 75393-16010 |
| 75394 | No. 3 outer protective strip fixings | 75394-16010 · 75395-16010 |
| 75395A | No. 1 outer protective strip clip | 75397-16010 |
| 75396 | No. 2 outer protective strip clip | 75396-16010 |
| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-16040 · 75551-16080 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-16040 · 75552-16080 |
| 75553 | Drainage groove side decorative strip on the right side of the roof | 75553-16010 · 75553-16020 |
| 75554 | Drainage groove side decorative strip on the left side of the roof | 75554-16010 · 75554-16020 |
| 75596 | Drainage channel side decorative strip joint cover on the right side of the roof | 75596-16030 |
| 75597 | Drainage channel side decorative strip joint cover on the left side of the roof | 75596-16030 |
| 75613 | Right front fender outer protective strip | 75611-16250 · 75611-16260 |
| 75614 | Left front fender outer protective strip | 75612-16230 · 75612-16240 |
| 75651 | Right side outer protective strip | 75651-16190 · 75651-16200 |
| 75652 | Left side outer protective strip | 75652-16170 · 75652-16180 |
| 75721 | Right front door waistline protection strip | 75710-19125 · 75710-19135 · 75710-19145 · 75710-19155 |
| 75722 | Left front door waistline protection strip | 75720-19125 · 75720-19135 · 75720-19145 · 75720-19155 |
| 75731A | Right front door outer protective strip | 75731-16320 · 75731-16330 |
| 75732A | Left front door outer protective strip | 75732-16320 · 75732-16330 |
| 75751 | Right rear door waistline protection strip | 75730-16020 |
| 75752 | Left rear door waistline protection strip | 75740-16020 |
| 75756 | Right corner window decorative strip | 75660-19255 · 75671-19025 |
| 75757 | Left corner window decorative strip | 75670-19255 · 75672-19025 |
| 75851D | Clip (for rocker panel protective strip assembly) | 75395-16020 · 75396-16020 |
