Toyota COROLLA 前防护条 — Figure 7502

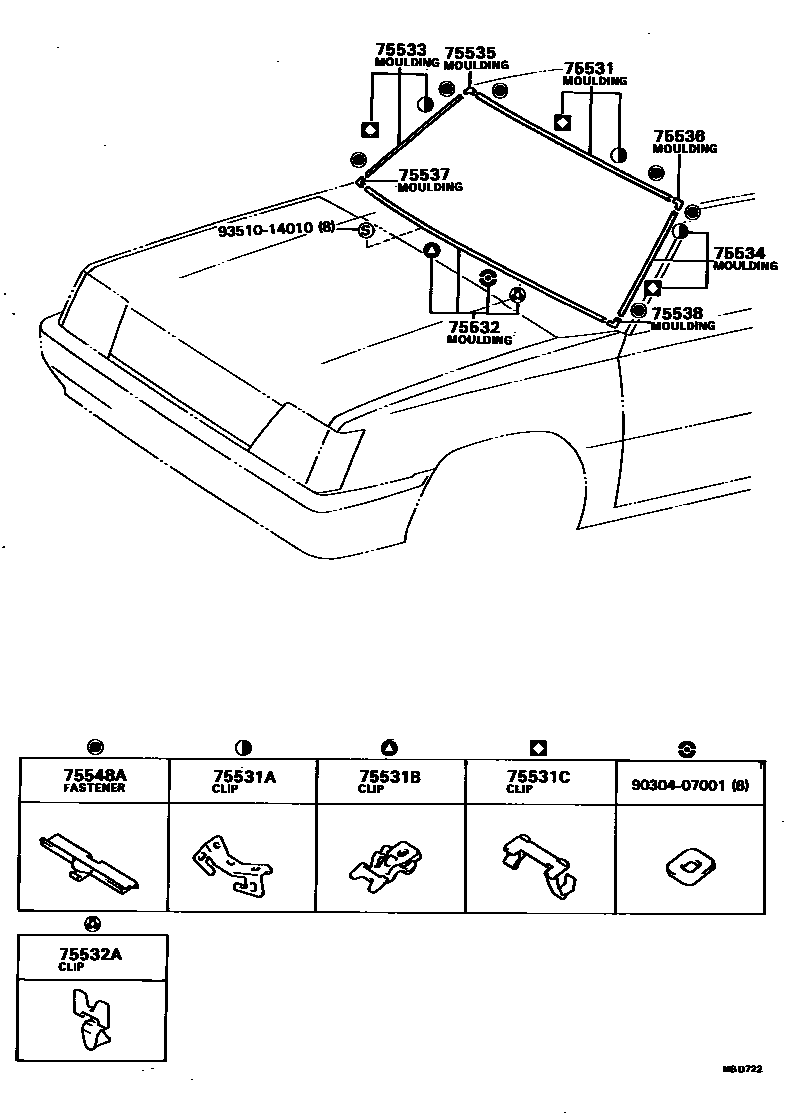

Toyota COROLLA EPC diagram 7502, 前防护条, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75531 | Windshield outer protective strip | 75531-16030 |
| 75531A | No. 1 windshield protection strip fixing clip | 75545-16020 |
| 75531B | No. 2 windshield protection strip fixing clip | 75546-16020 |
| 75531C | No. 3 windshield protective strip fixing clip | 75547-16010 |
| 75532 | Lower windshield protection strip | 75535-16030 |
| 75532A | Windshield protection strip fixing clip | 75547-16020 |
| 75533 | Windshield right outer protective strip | 75533-16030 |
| 75534 | Windshield left outer protective strip | 75534-16030 |
| 75535 | Windshield upper right corner protective strip | 75541-16030 |
| 75536 | Windshield upper left corner protective strip | 75542-16030 |
| 75537 | Windshield lower right corner protective strip | 75543-16030 |
| 75538 | Windshield lower left corner protective strip | 75544-16030 |
| 75548A | No. 1 windshield outer protective strip fasteners | 75548-12070 · 75548-16010 · 75548-22050 |
