Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 8 PNC and OE references.

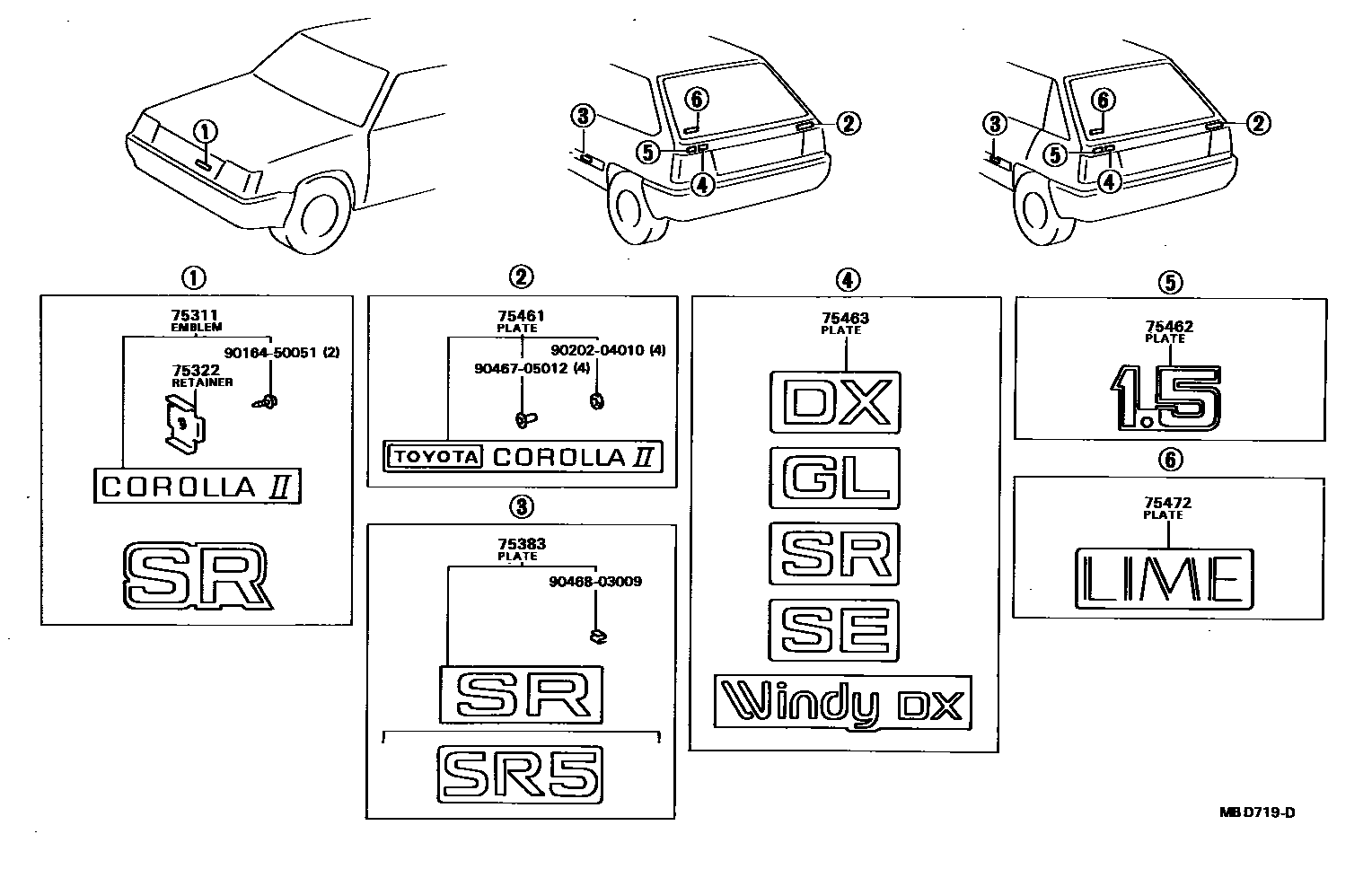

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — MBD719D
丰田徽标和铭牌(车外和车内) — MBD719D (198205 – 198408)

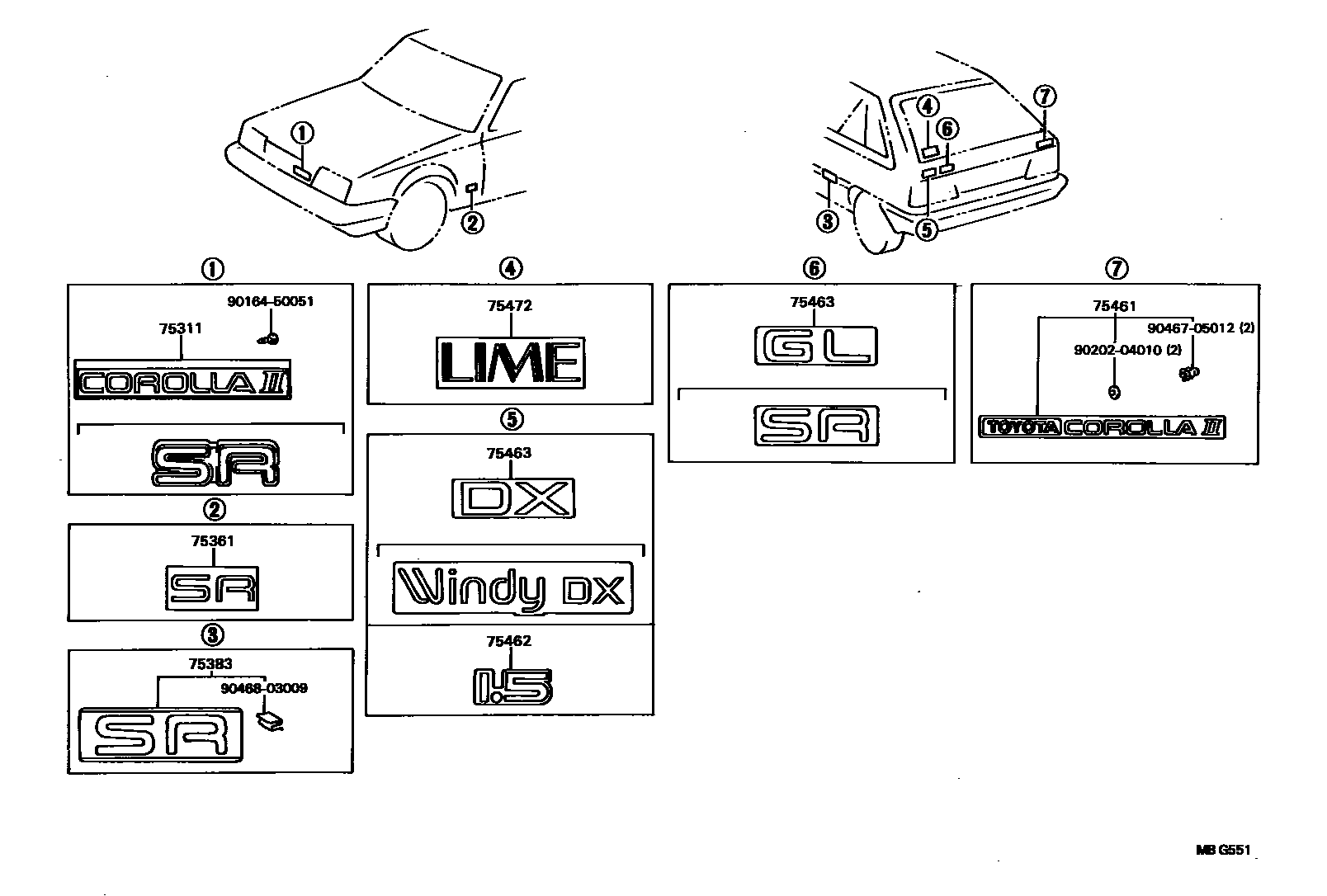

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — MBG551
丰田徽标和铭牌(车外和车内) — MBG551 (198408 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75311-16150 · 75311-16180 · 75311-80017 · 75311-80018
75322Radiator grille nameplate fasteners75324-16040
75361Front fender No. 1 nameplate (model mark)75361-16040
75383Side panel or side plate nameplate (class mark)75385-16010 · 75385-16011 · 75385-16060
75461Rear No. 2 nameplate (model mark)75441-16070 · 75441-16130
75462Rear No. 3 nameplate (displacement)75443-16020 · 75444-12160
75463Rear No. 4 nameplate (grade mark)75442-16110 · 75442-16120 · 75442-16130 · 75442-16140 · 75442-16220 · 75442-16230 · 75442-16240 · 75442-16390
75472Rear window nameplate74542-16020
