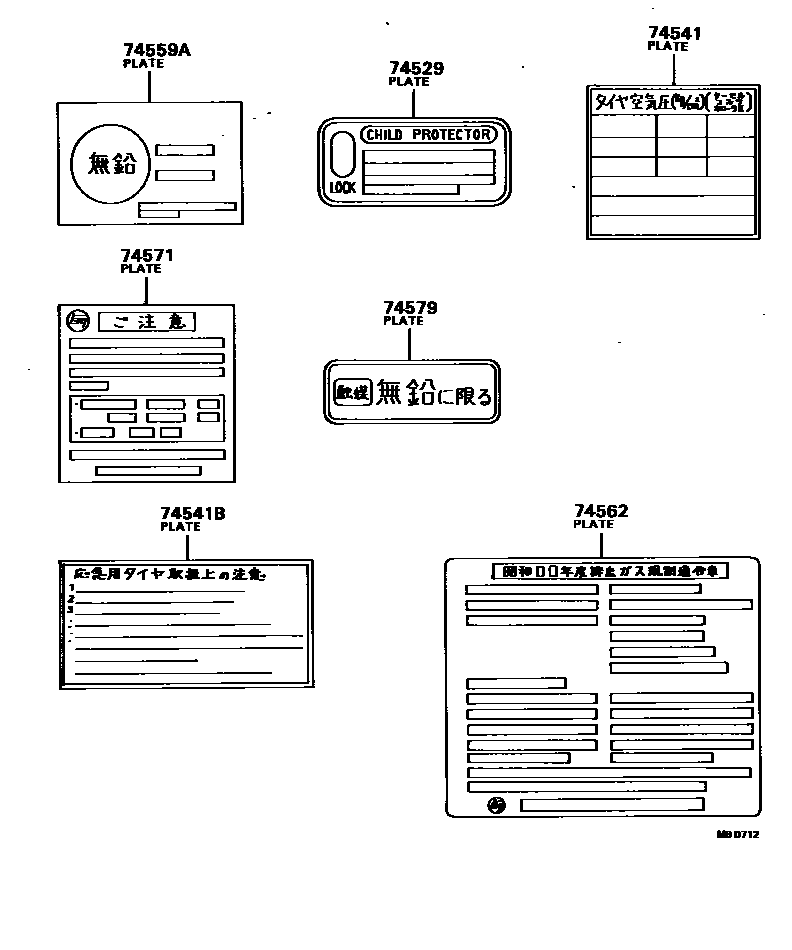

Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403
Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74529 | Child safety or child restraint lock warning nameplate | 69339-12010 · 69339-20030 |
| 74541 | tire pressure warning plate | 42661-16080 · 42661-16081 |
| 74541B | Small spare tire warning plate | 42668-32010 |
| 74559A | Fuel warning plate | 74559-14010 |
| 74562 | Emission control system information plate | 74562-14260 · 74562-16040 · 74562-16041 · 74562-16050 · 74562-16051 · 74562-16060 · 74562-16061 · 74562-16063 · 74562-16070 · 74562-16080 · 74562-16090 · 74562-16100 · 74562-20310 |
| 74571 | Brake fluid warning plate | 74571-27011 · 74571-27021 · 74571-27022 |
| 74579 | Unleaded fuel warning nameplate | 74579-30011 |
