Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 1 images and 3 PNC and OE references.

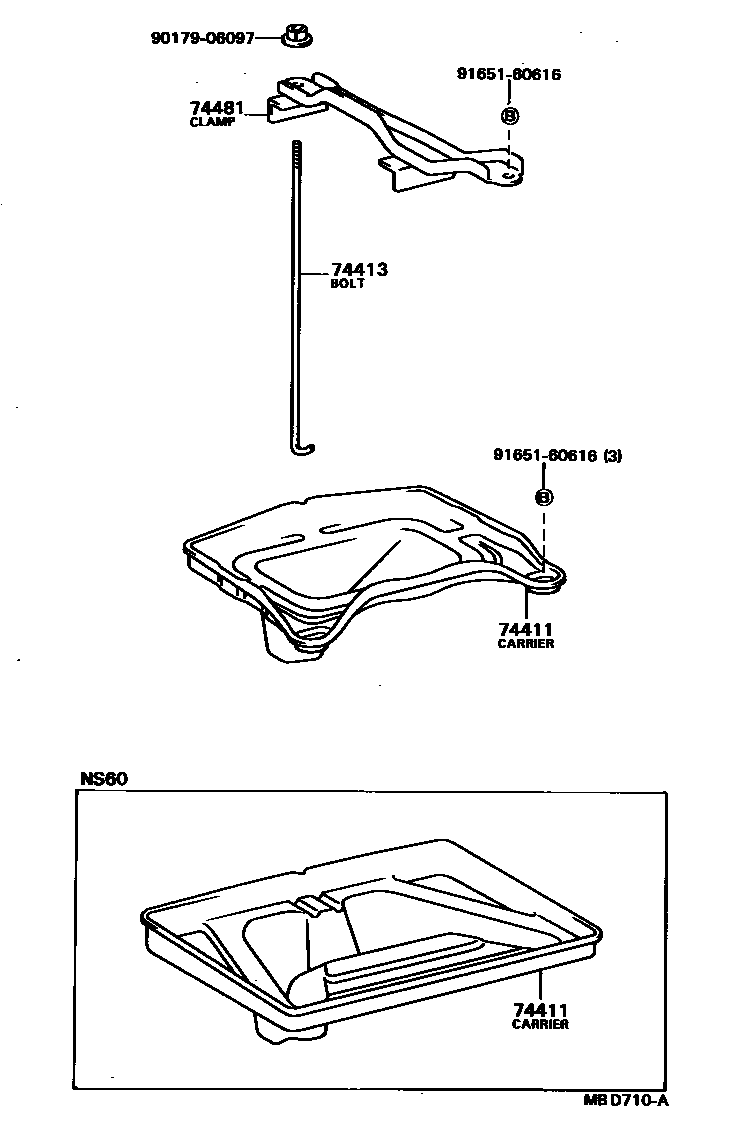

Toyota COROLLA battery holder EPC diagram — MBD710A — battery holder — MBD710A (198205 – 999999)

PNC and OE references

PNC	Part name	OE numbers
74411	battery holder	74431-16020 · 74431-16030
74413	Battery clamp bolt	74451-14010 · 74451-16010
74481	Battery fixing clip	74404-16030
