Toyota COROLLA 扶手和遮阳板 — Figure 7401

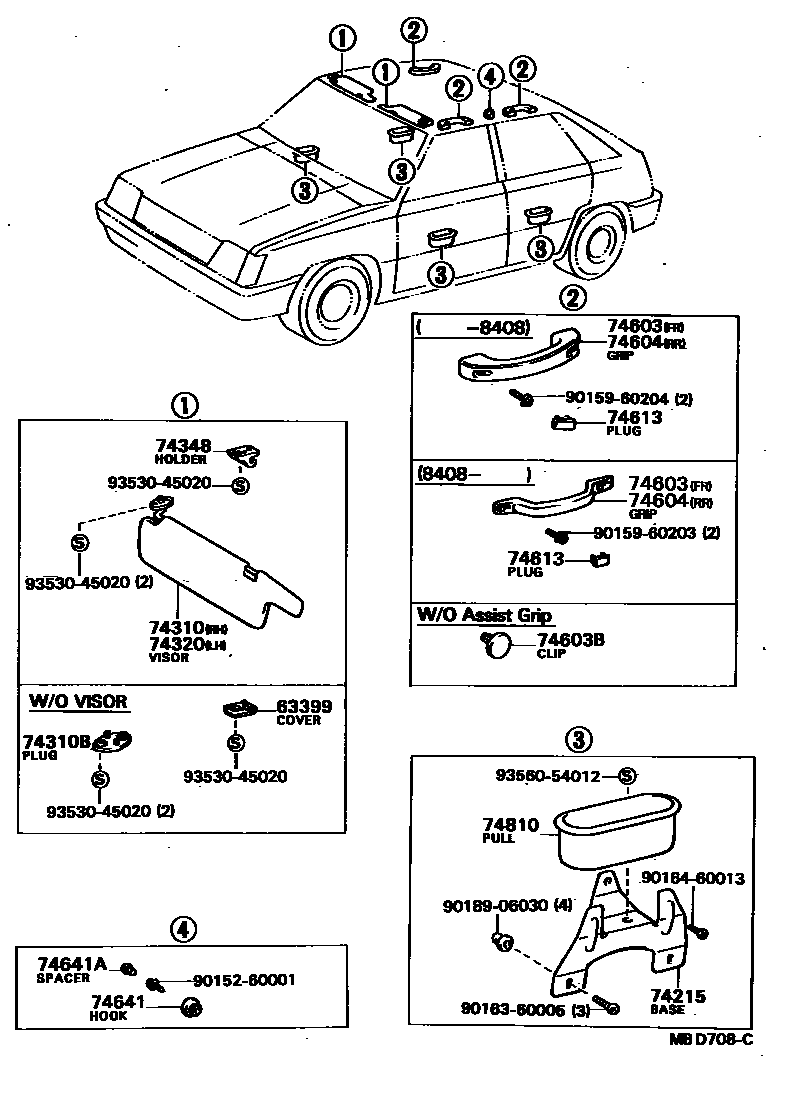

Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74215 | door armrest | 74215-16010 |
| 74310 | Right sun visor assembly | 74310-16120 · 74310-16150 · 74310-16190 · 74310-16220 |
| 74320 | Left sun visor assembly | 74320-16110 · 74320-16120 |
| 74641A | Spacers (for coat hooks) | 74634-12010 |
