Toyota COROLLA 座椅滑轨 — Figure 7103

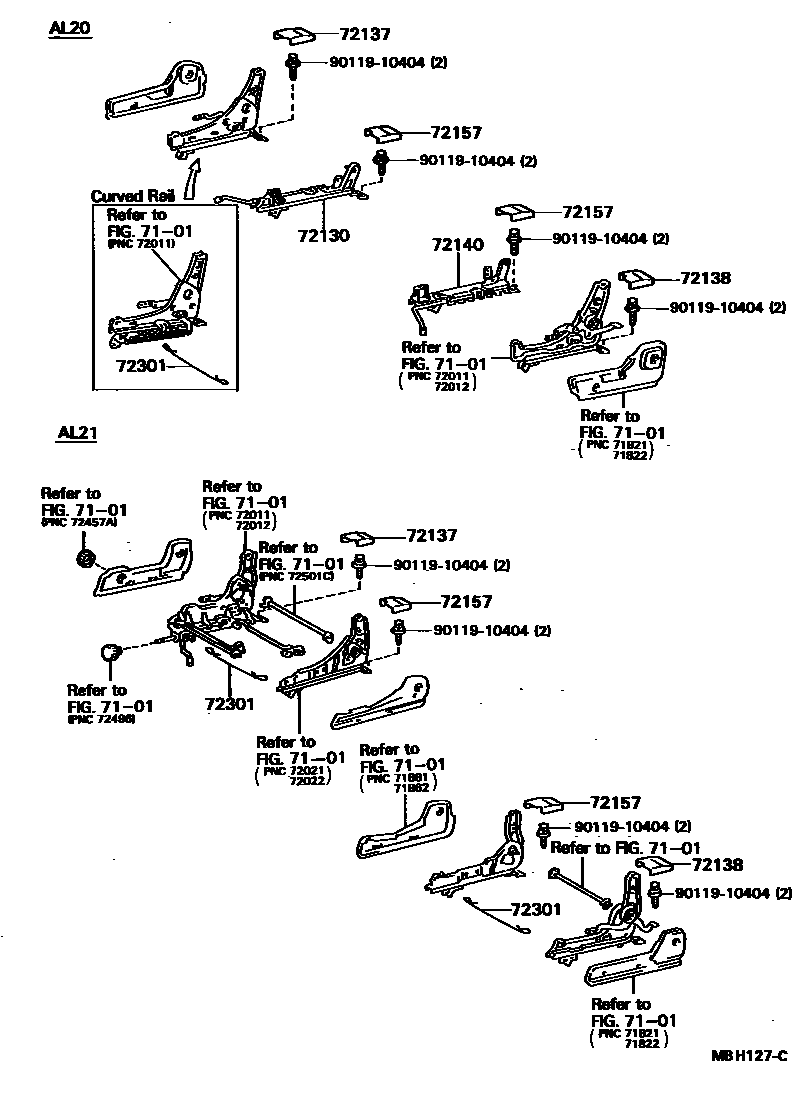

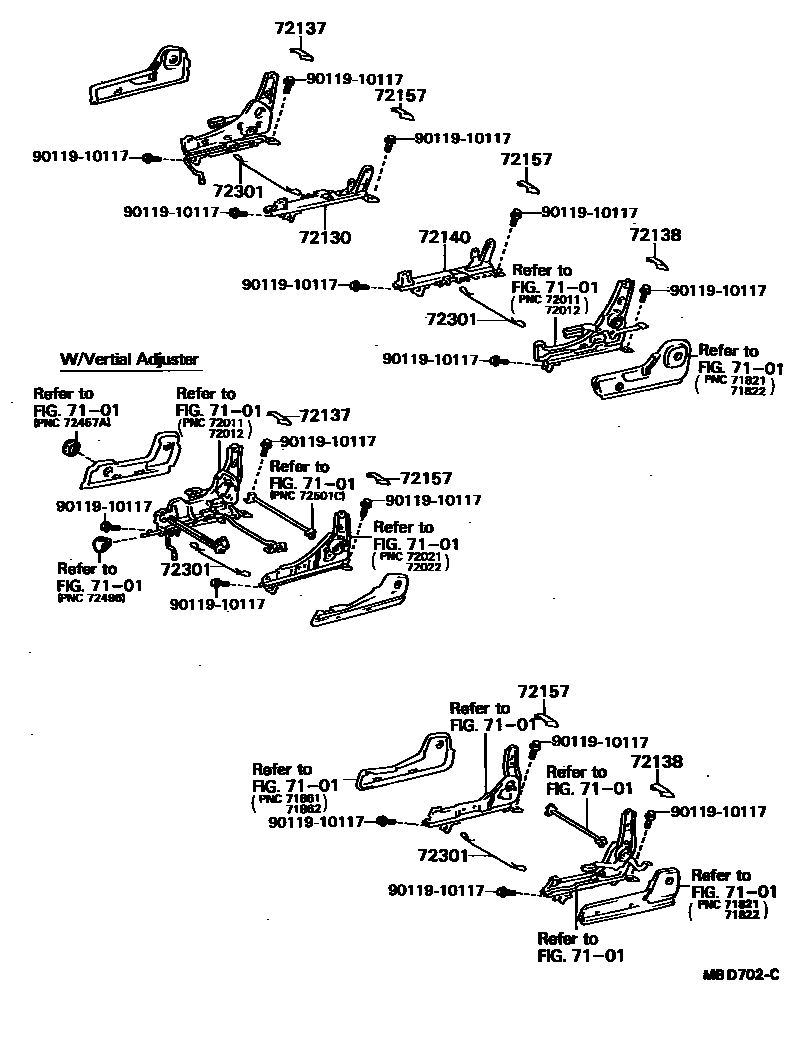

Toyota COROLLA EPC diagram 7103, 座椅滑轨, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 72130 | Right seat inner slide rail assembly | 72130-16030 · 72130-16060 · 72130-16070 |
| 72140 | Left seat inner slide rail assembly | 72140-16030 · 72140-16060 · 72140-16070 |
| 72301 | Seat slide rail balance harness sub-assembly | 72301-16010 · 72301-16030 · 72301-16040 · 72301-16050 |
