Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

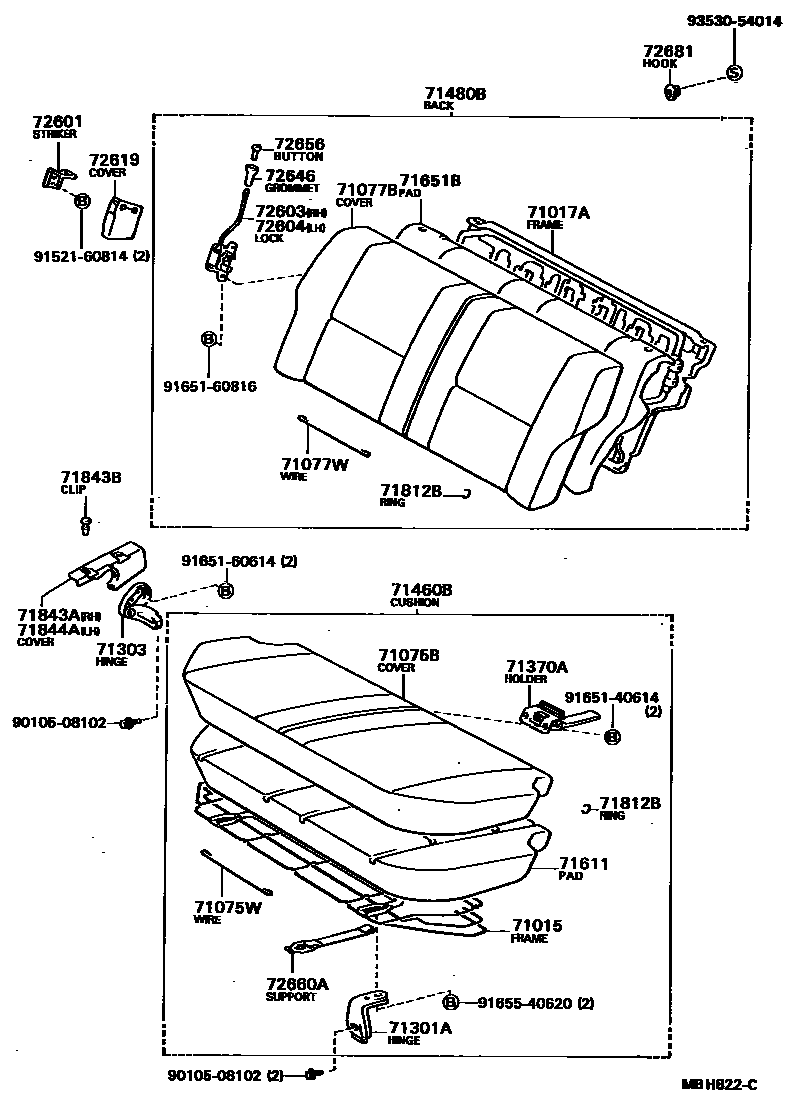

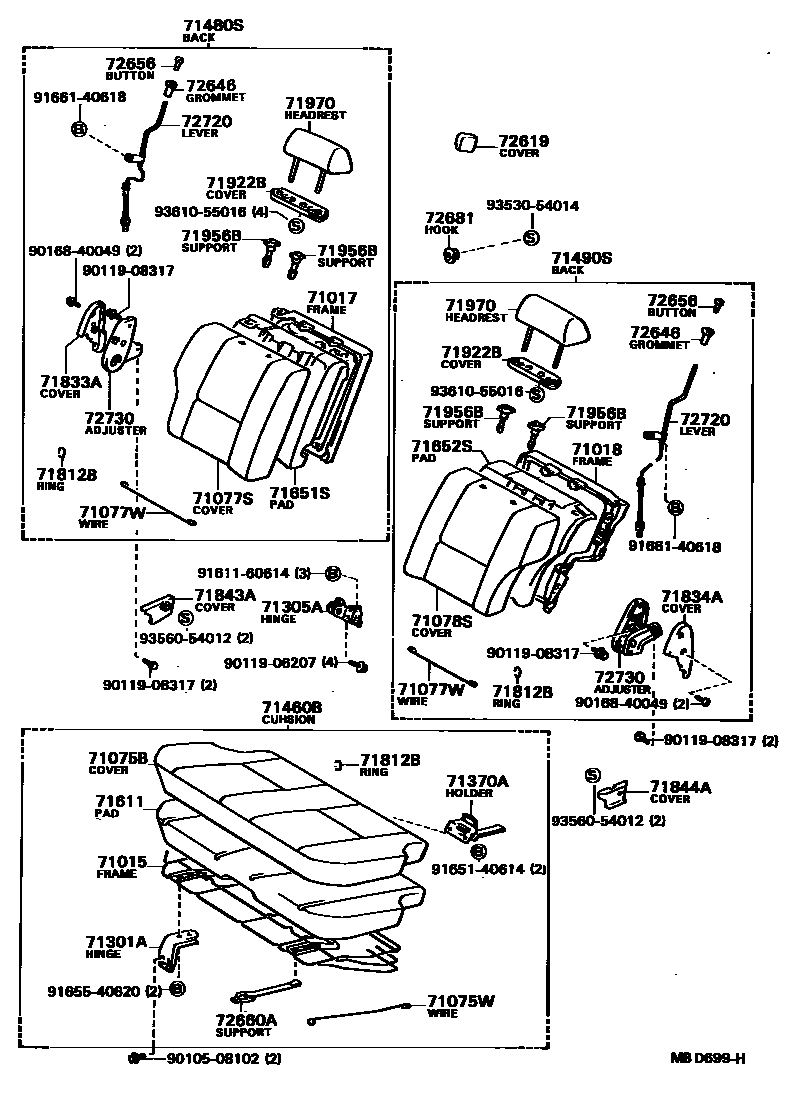

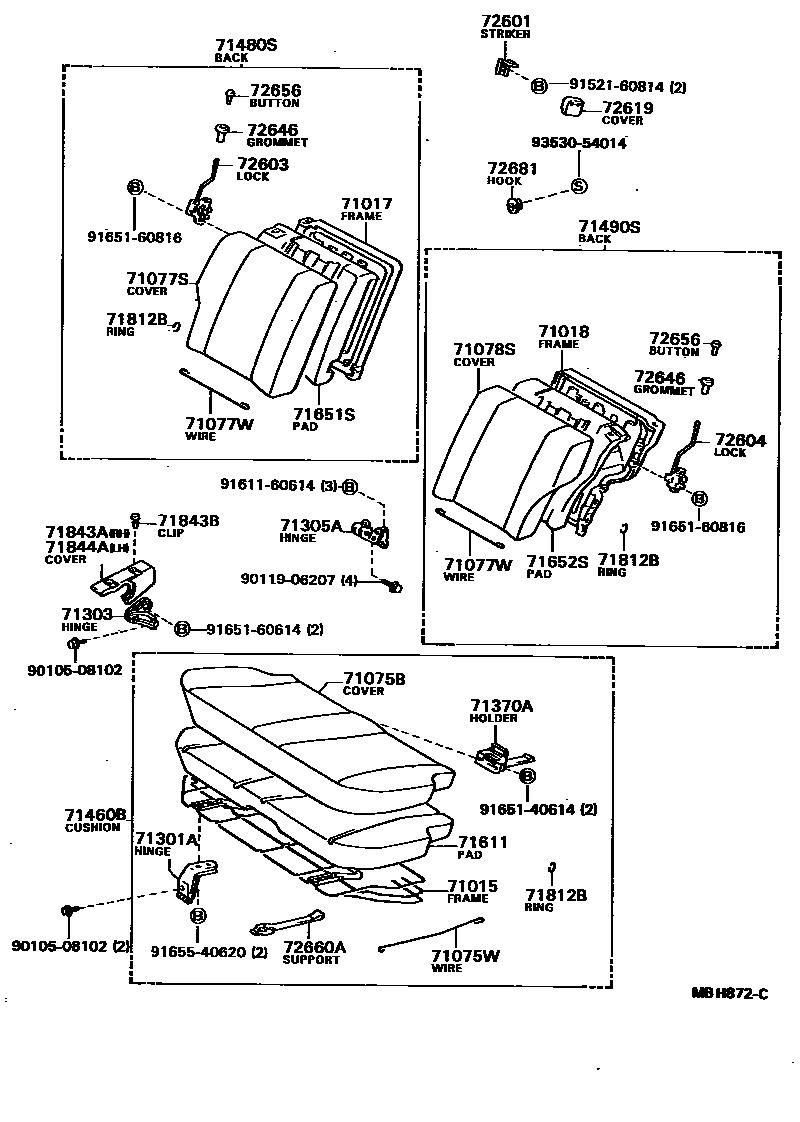

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 3 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015 | Rear seat cushion frame sub-assembly | 71015-16030 |
| 71017 | Right rear seat back frame sub-assembly | 71017-12250 · 71017-16030 · 71017-16070 |
| 71017A | Rear seat back frame sub-assembly | 71017-16080 |
| 71018 | Rear left seat back frame sub-assembly | 71018-12040 · 71018-16030 · 71018-16040 |
| 71075B | Rear seat cushion cover (for bench seat) | 71065-16011 · 71065-16050 · 71065-16060 |
| 71075W | Rear seat cushion protective wire | 90580-20015 |
| 71077B | Rear seat backrest cover (for bench seat) | 71077-16761 · 71077-16810 |
| 71077S | Right rear seat back cover (for split seats) | 71077-16800 |
| 71077W | Rear seat backrest protective wire | 90580-20021 · 90580-20032 · 90580-20107 · 90580-20109 · 90580-20127 · 90580-20165 · 90580-20171 · 90580-20176 · 90580-26012 · 90580-26013 · 90580-26014 |
| 71078S | Rear left seat back cover (for split seats) | 71078-16600 |
| 71303 | Rear seat back hinge sub-assembly | 71303-16010 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-16020 |
| 71460B | Rear seat cushion assembly (for bench seat) | 71560-16011 |
| 71480B | Rear seat back assembly (for bench seat) | 71480-16781 |
| 71611 | Rear seat cushion cushion | 71611-16050 · 71611-16100 |
| 71651B | Rear seat back cushions (for bench seats) | 71651-16090 · 71651-16130 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-16080 · 71651-16120 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-16040 · 71652-16050 |
| 71812B | Clip (for rear seat cushion cover) | 90468-18071 |
| 72601 | Rear seat lock sub-assembly | 72601-12080 · 72601-16040 |
| 72603 | Rear right seat back lock sub-assembly | 72630-16060 |
| 72604 | Rear left seat back lock sub-assembly | 72640-16040 |
| 72720 | Rear seat backrest tilt control lever assembly | 72053-16010 · 72054-16010 |
| 72730 | Rear seat backrest angle adjuster assembly | 72730-16010 · 72740-16010 |
